DRV8825 Stepper Motor Driver Module – High Current Precision Control for 3D Printers, CNC, and Robotics

Description:

 DRV8825 Stepper Motor Driver Module is a high-performance motor driver based on the Texas Instruments DRV8825 IC, designed for precise and powerful control of bipolar stepper motors. Ideal for 3D printers, CNC machines, and robotics projects, this module offers up to 2.5A peak current per coil (with adequate heat dissipation) and supports up to 1/32 microstepping, providing smooth, quiet, and accurate motor movement.

Features:

1. High Voltage Range

2. High Current Output

3. Advanced Microstepping

4. Easy STEP/DIR Interface

5. Adjustable Current Control

6. Over-Current Protection

7. Thermal Shutdown Protection

8. Undervoltage Lockout (UVLO)

9. Sleep and Reset Control

10. Built-In Translator

11. Compact and Breadboard-Friendly

12. Backwards-Compatible with A4988 Modules

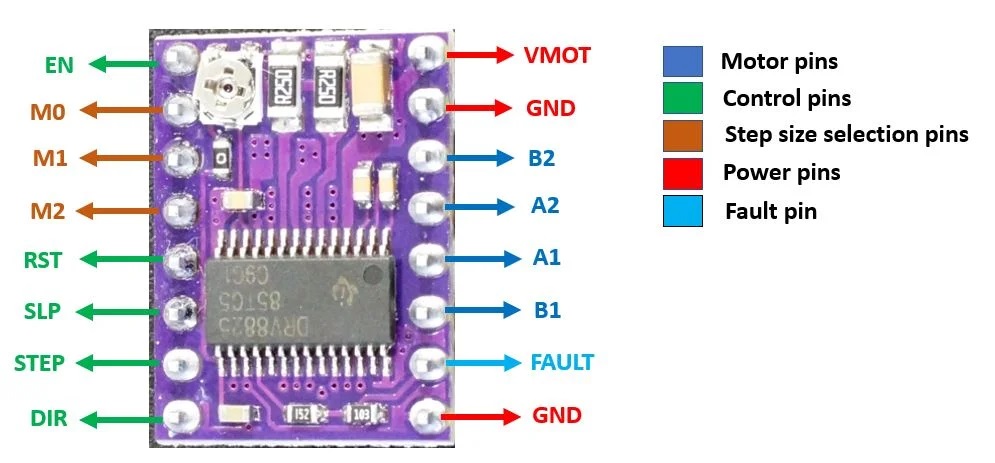

Diagram:

Specifications:

Driver IC Texas Instruments DRV8825
Motor Type Bipolar stepper motor
Operating Voltage (VMOT) 8.2V – 45V
Logic Voltage (VDD) 3.3V – 5.25V
Continuous Current Output Up to 1.5A per phase
Peak Current Output Up to 2.5A per phase
Microstepping Modes Full, 1/2, 1/4, 1/8, 1/16, 1/32
Step Control STEP and DIR pins

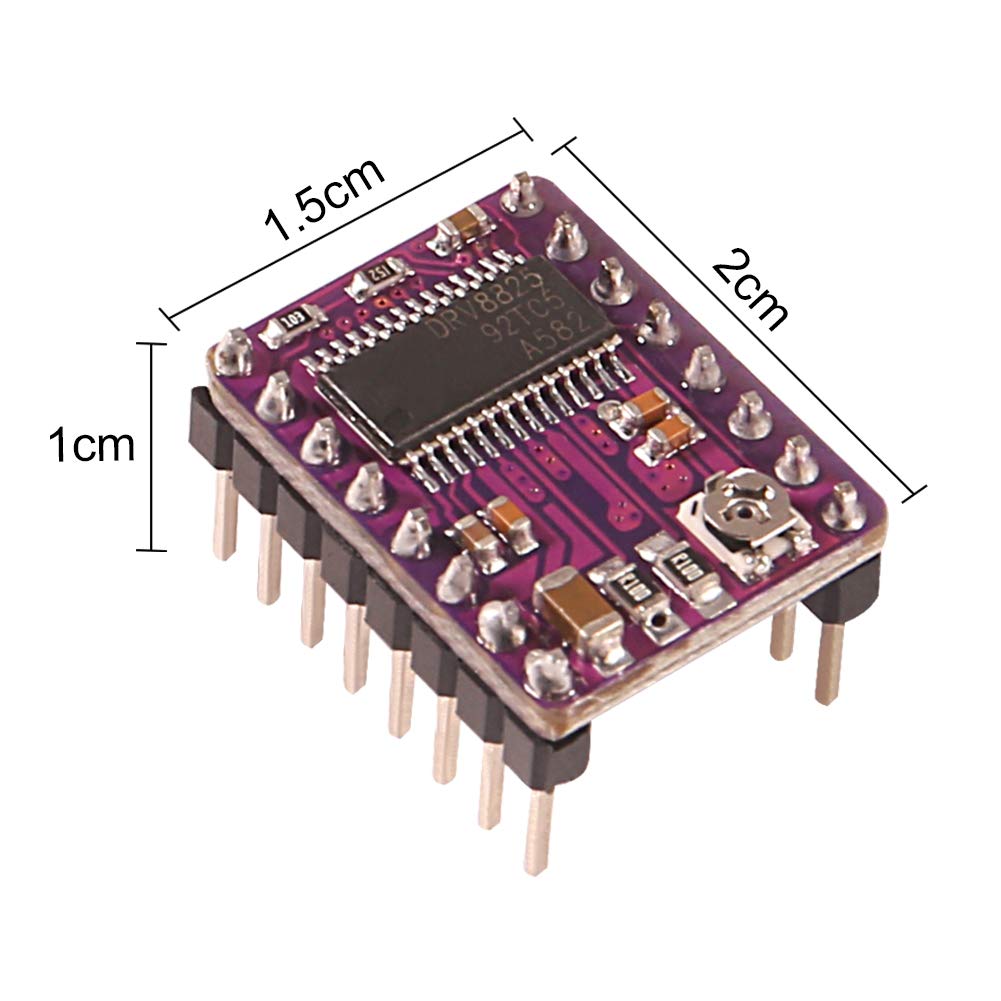

Board Dimensions ~15mm x 20mm
