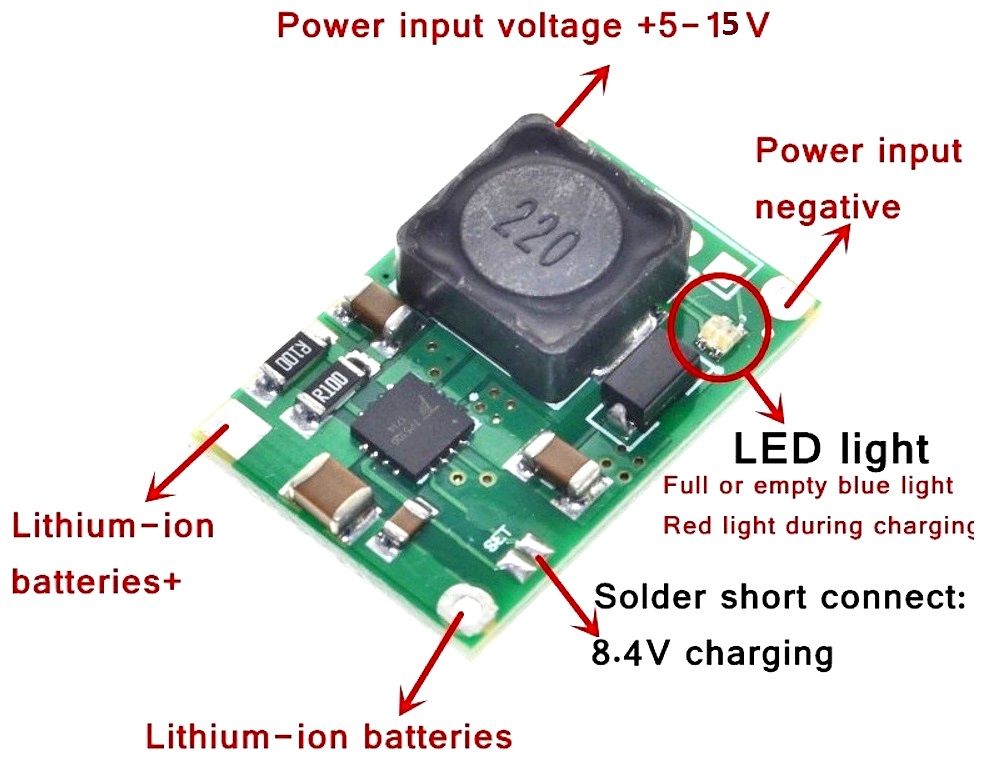

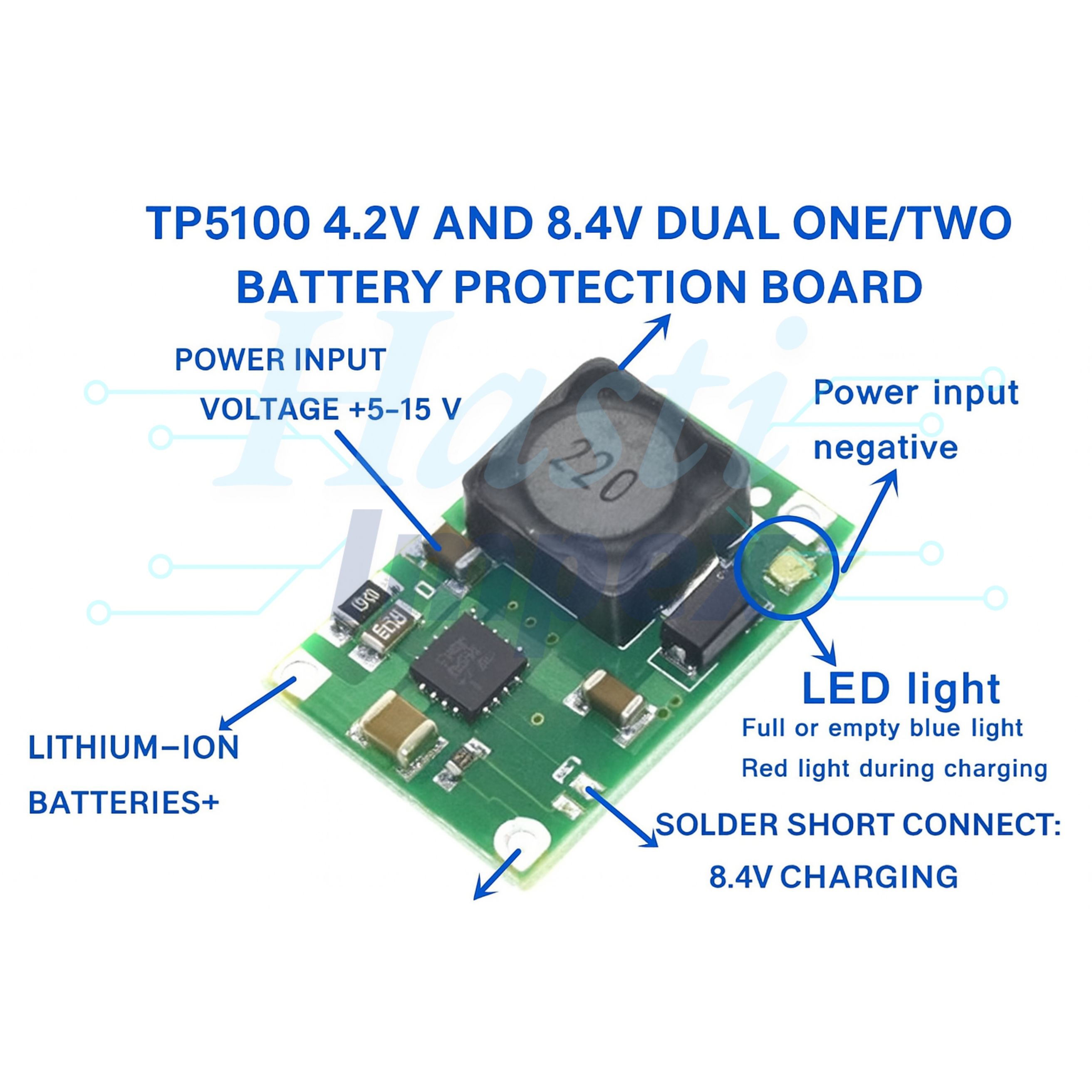

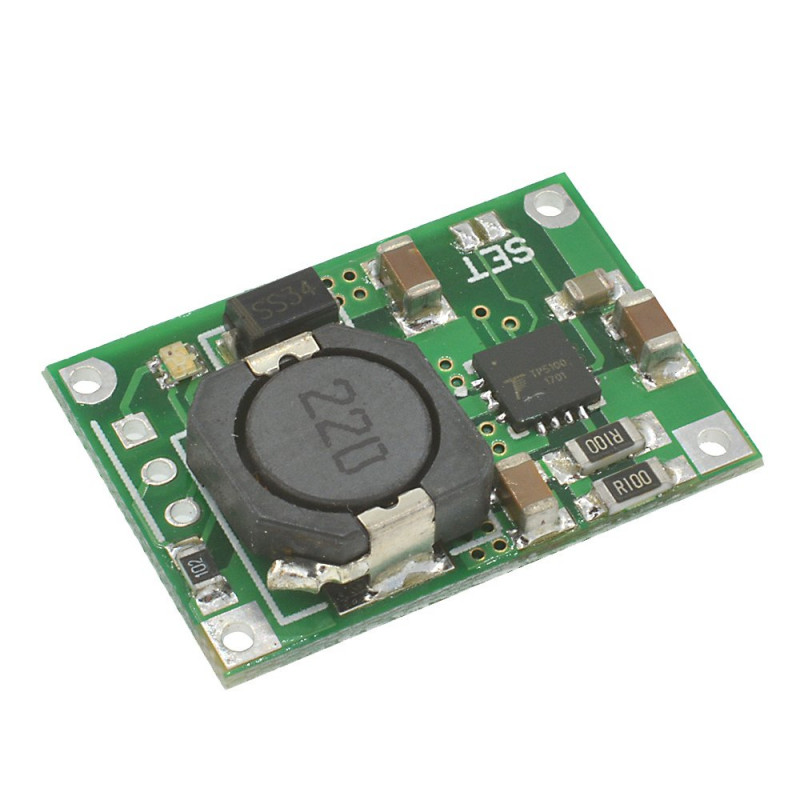

TP5100 4.2v and 8.4v Dual One/Two Battery Protection Board
Description:
The TP5100 4.2V and 8.4V Dual One/Two Battery Protection Board is a circuit board designed to charge and protect lithium-ion or lithium-polymer batteries. It's commonly used in applications such as battery-powered devices, portable electronics, and DIY projects. Here's how you can use it:
-
Power Supply: Connect a suitable power source to the input terminals of the TP5100 board. This can be a USB power source, a DC power supply, or another appropriate power supply within the specified voltage range.
-
Battery Connection: Connect one or two lithium-ion or lithium-polymer batteries to the battery terminals of the TP5100 board. Ensure correct polarity when connecting the batteries.
-
Charging: The TP5100 board includes a built-in charging circuit that charges the connected batteries. It typically supports charging up to a voltage of 4.2V per cell, allowing for charging of single-cell (4.2V) or two-cell (8.4V) battery configurations.
-
Charging Status: The TP5100 board may include LED indicators or other means of indicating the charging status. Common indicators include a red LED for charging and a green LED for fully charged or standby status.
-
Protection Features: The TP5100 board also provides protection features to ensure safe charging and usage of the batteries. These protection features may include overcharge protection, over-discharge protection, over-current protection, and short-circuit protection. These features help prevent damage to the batteries and the charging circuit.
-
Load Connection: Connect the load (the device or circuit that will be powered by the batteries) to the output terminals of the TP5100 board. Ensure correct polarity when connecting the load.
-
Usage: Once the batteries are connected and the power supply is applied, the TP5100 board will automatically start charging the batteries if they require charging. The charging process continues until the batteries reach full charge, at which point the charging circuit automatically switches to a standby mode.
-
Monitoring: Monitor the charging status and battery voltage periodically to ensure proper operation and safety. If any issues arise, such as overcharge or over-discharge conditions, take appropriate action to address them.
-
Safety Considerations: Follow proper safety precautions when working with lithium-ion or lithium-polymer batteries. Avoid overcharging, over-discharging, short-circuiting, or exposing the batteries to extreme temperatures, as these conditions can lead to safety hazards or damage to the batteries.
By following these steps, you can effectively use the TP5100 4.2V and 8.4V Dual One/Two Battery Protection Board to charge and protect lithium-ion or lithium-polymer batteries for your projects or devices.
