MAX7219 Dot Matrix 4 in 1 Display Module
Description:
MAX7219 Dot Matrix 4-in-1 Display Module is a versatile and powerful display solution that allows you to display information in the form of 7-segment displays or matrix-style characters. It is a popular choice for hobbyists, engineers, and makers working on projects that require large and dynamic visual outputs, such as scrolling text, numbers, or graphics. The module uses the MAX7219 chip, a multiplexed driver for controlling 7-segment displays or 8x8 LED dot matrix modules.
Features:
1. 4-in-1 Dot Matrix Configuration
2. MAX7219 Chip Integration
3. Serial Data Interface (SPI)
4. Easy to Control
5. Brightness Control
6. Daisy-Chaining Capability
7. Low Power Consumption
8. Compact and Modular Design
9. Perfect for Scrolling Text and Animations
10. Versatile Applications

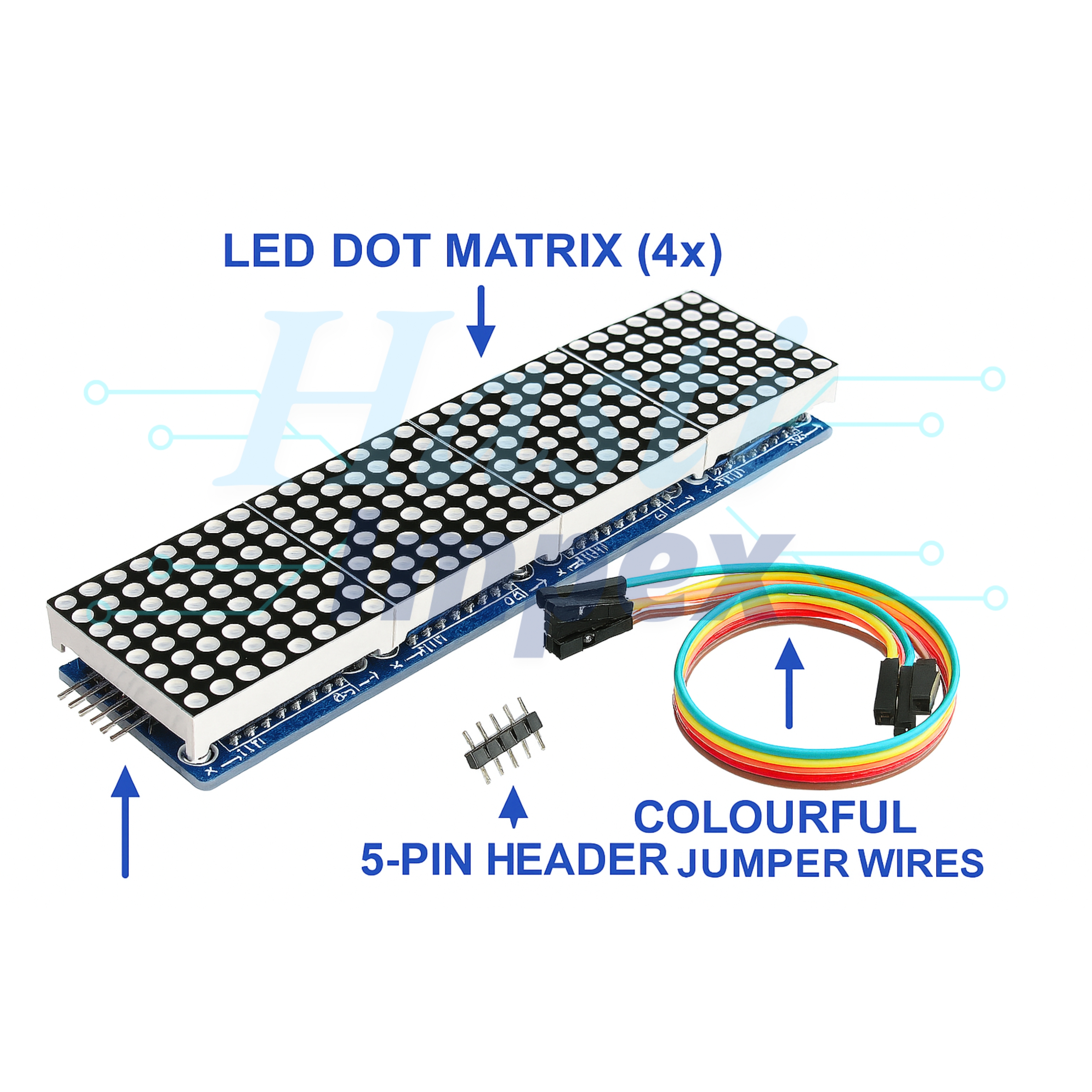

Diagram:
Specifications:
| Number of Displays | 4 x 8 x 8 LED matrices |
| LED Type | Red/Green/Blue LEDs |
| Operating Voltage | 5V DC |
| Max Current | ~300mA |
| Max Number of Modules | 8 modules |
| Operating Voltage | 5V DC |
