16x2 (1602) Character Green Backlight LCD Display

Description



16x2 (1602) character LCD display is a popular module used in various electronics projects, especially with microcontrollers like Arduino and Raspberry Pi. Here’s an overview of its features, specifications, and typical applications:

Key Features:

  1. Display Size:

    • 16x2 Configuration: This means the display can show 16 characters per line and has 2 lines, allowing for a total of 32 characters.
  2. Green Backlight:

    • The green backlight enhances visibility in low-light conditions, making it easier to read the displayed characters.
  3. Character Type:

    • Uses a standard alphanumeric character set, typically including letters, numbers, and some special characters.
  4. Interface:

    • Usually operates via a parallel interface (using multiple data lines) or can be connected using an I2C interface for simplified wiring and fewer pins.
  5. Voltage Requirements:

    • Typically operates at 5V, making it compatible with most microcontrollers.

Specifications:

  • Driver IC: Commonly uses the HD44780 controller, which is standard for character LCDs.
  • Dimensions: Usually compact, with dimensions around 80mm x 36mm.
  • Character Size: Each character is typically 5x8 pixels.

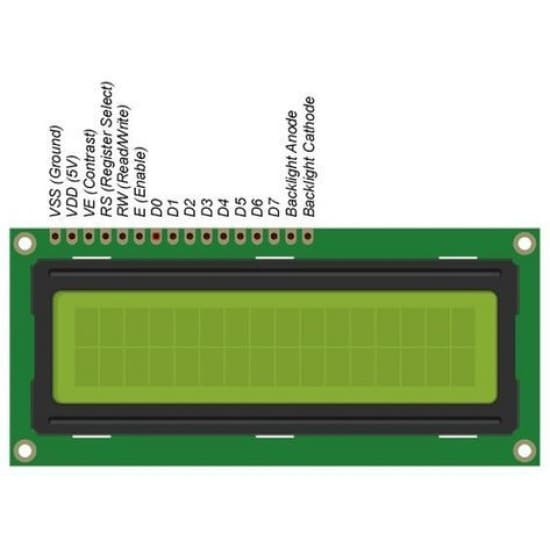

  • Connection Pins: Usually has 16 pins for interfacing, including power, ground, data, and control lines.

Reviews

₹85.0
Price - ₹75.0
