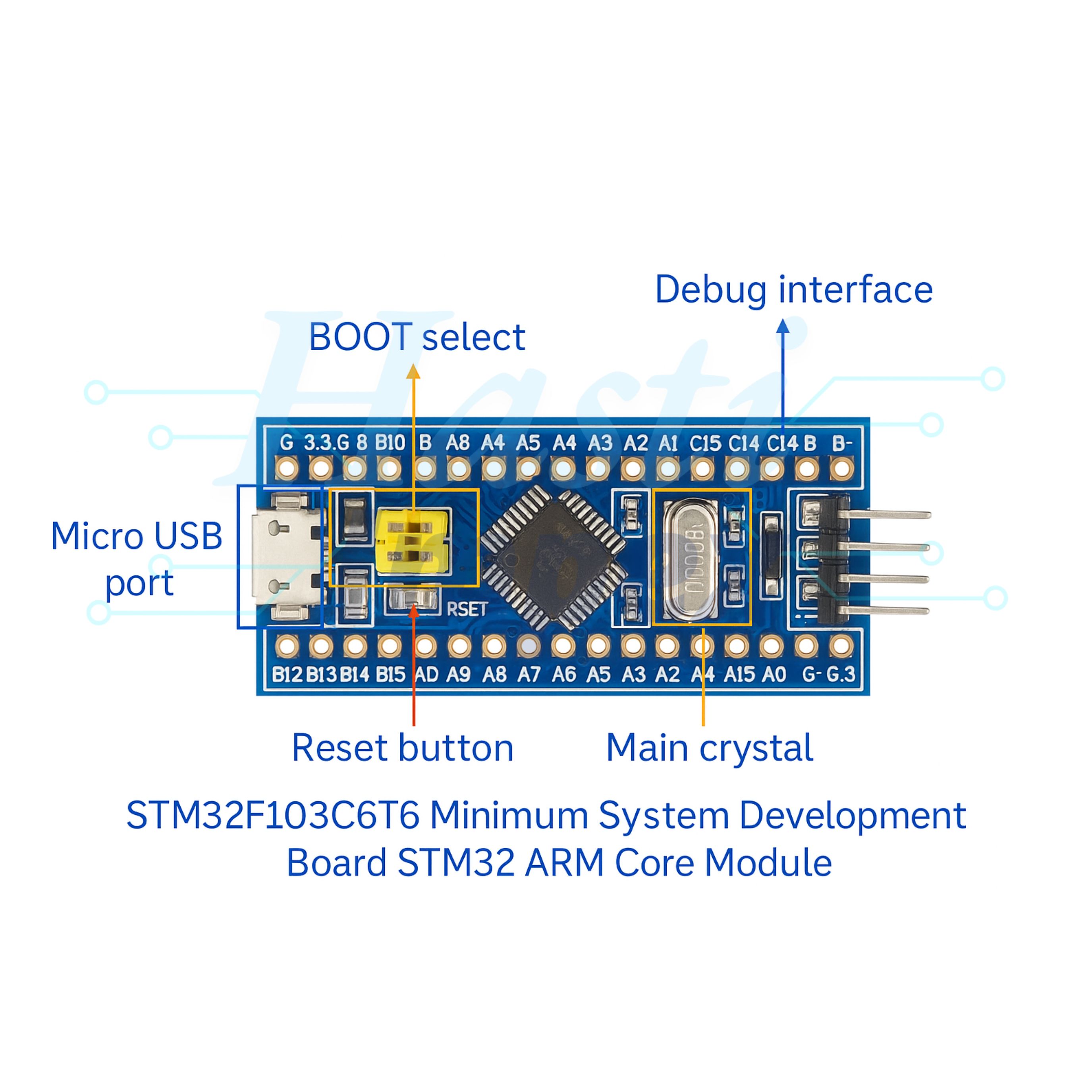

STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module
Description:
STM32F103C6T6 Minimum System Development Board is a versatile development platform based on the STM32F103C6T6 microcontroller from STMicroelectronics, featuring the ARM Cortex-M3 core. This board is ideal for developing a wide range of embedded applications, including robotics, Internet of Things (IoT) devices, sensor-based systems, and more. It provides an accessible and affordable way to prototype with the STM32 family of microcontrollers, offering rich peripherals, low power consumption, and flexible connectivity options for both beginners and professionals.
The STM32F103C6T6 microcontroller integrates various essential components for embedded systems, including a 32-bit ARM Cortex-M3 core, high-speed flash memory, a robust analog-to-digital converter (ADC), and numerous digital and communication interfaces. This development board allows users to experiment, develop, and test systems efficiently before moving to a more complex design.
Features:
1. Microcontroller Overview (STM32F103C6T6)
2. Rich Peripheral Support
3. Power Supply and Consumption
4. Clock and Timing
5. Programming and Debugging
6. Software Development
7. Physical Design and Form Factor
8. Expansion and Versatility
9. Applications
Specifications:
| STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module | 32 KB |
| SRAM | 6 KB |
| Based On | STM32 Based |
| Core | ARM 32 Cortex-M3 CPU |
| Debug Mode | SWD |
| Operating Voltage | 2.0V to 3.6V |
| Temperature Range | -40°C to 85°C |
| Power Supply | 3.3V |
| Length (mm) | 54 |
| Width (mm | 22 |
| Weight (g) | 9 |
