NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module
Description:
NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module is an easy-to-use and versatile electronic module designed for controlling devices based on a timed delay. Powered by a 12V DC input, this module utilizes the highly popular NE555 Timer IC to create an adjustable delay between 0 to 10 seconds, providing precise timing control for various applications.
The NE555 Timer is one of the most widely used ICs in electronics for generating precise timing pulses, and it is capable of operating in monostable mode for this relay module. In monostable mode, the module produces a single output pulse with a variable duration based on the time you set, making it ideal for controlling relays, which can, in turn, control higher power devices like motors, lights, or alarms.
Features:
1. Adjustable Delay Time (0-10 Sec)
2. NE555 Timer IC
3. 12V DC Relay
4. Wide Range of Applications
5. Low Power Consumption
6. Easy Integration
7. Relay Output
8. Versatile Control

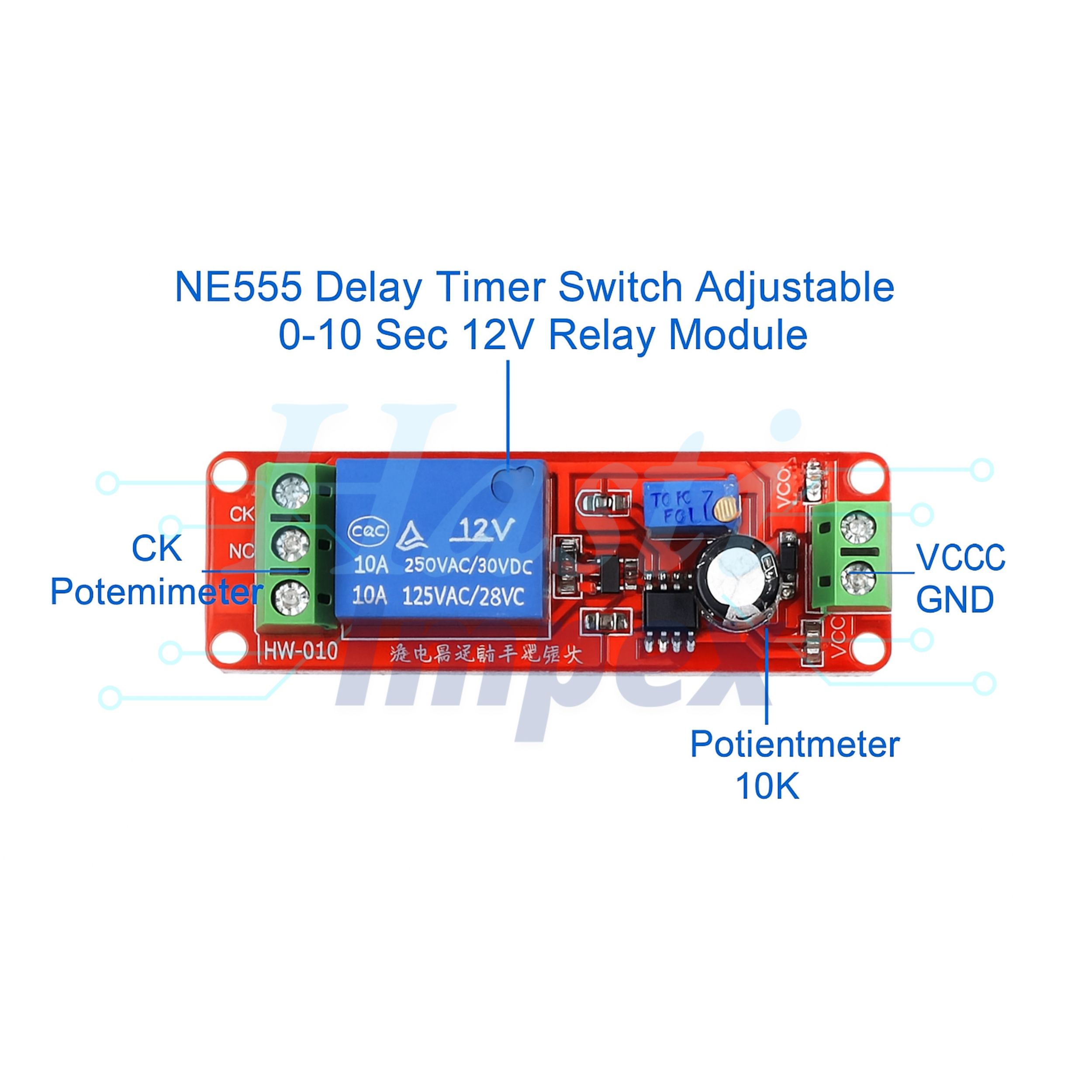

Diagram:
Specifications:
| Operating Voltage | 12V DC |
| Relay Output Voltage | Up to 250V AC, 30V DC |
| Relay Current Handling | 10A (AC) or 10A (DC) |
| Timer Range | 0-10 Seconds |
| IC Used | NE555 Timer IC |
| Relay Type | Normally Open (NO) |
| Power Consumption | Low Power |
| Operating Temperature | -40°C to 85°C |
| Control Type | Monostable Pulse |
| Dimensions | 5.3 x 2.5 x 1.5 cm |
