NE555 Frquency Adjustable Pulse Generator Module
Description:
NE555 Frequency Adjustable Pulse Generator Module is a versatile and reliable electronic component designed to generate accurate, adjustable pulses for various applications. Powered by the classic NE555 timer IC, this module offers an easy-to-use interface to generate PWM (Pulse Width Modulation) signals, square waves, or pulse signals with a wide frequency range. This makes it an excellent choice for projects involving timing, signal generation, waveform creation, or controlling the speed of motors, LEDs, or other devices.
NE555 Timer IC is one of the most commonly used integrated circuits in the world of electronics, known for its stability, ease of use, and wide range of applications. This module leverages the NE555 IC in an astable multivibrator configuration to produce a continuous square wave that can be adjusted for frequency and duty cycle. The module provides flexibility to generate precise waveforms at various frequencies, making it suitable for signal generation in timing circuits, frequency modulation, LED flashing control, motor speed regulation, and other projects that require precise control over signal output.
Features:
1. Wide Frequency Range
2. Adjustable Frequency
3. Adjustable Duty Cycle
4. Simple Interface
5. Stable and Reliable Signal Generation
6. Low Power Consumption
7. Versatile Applications
8. Compact Design
9. Robust Output

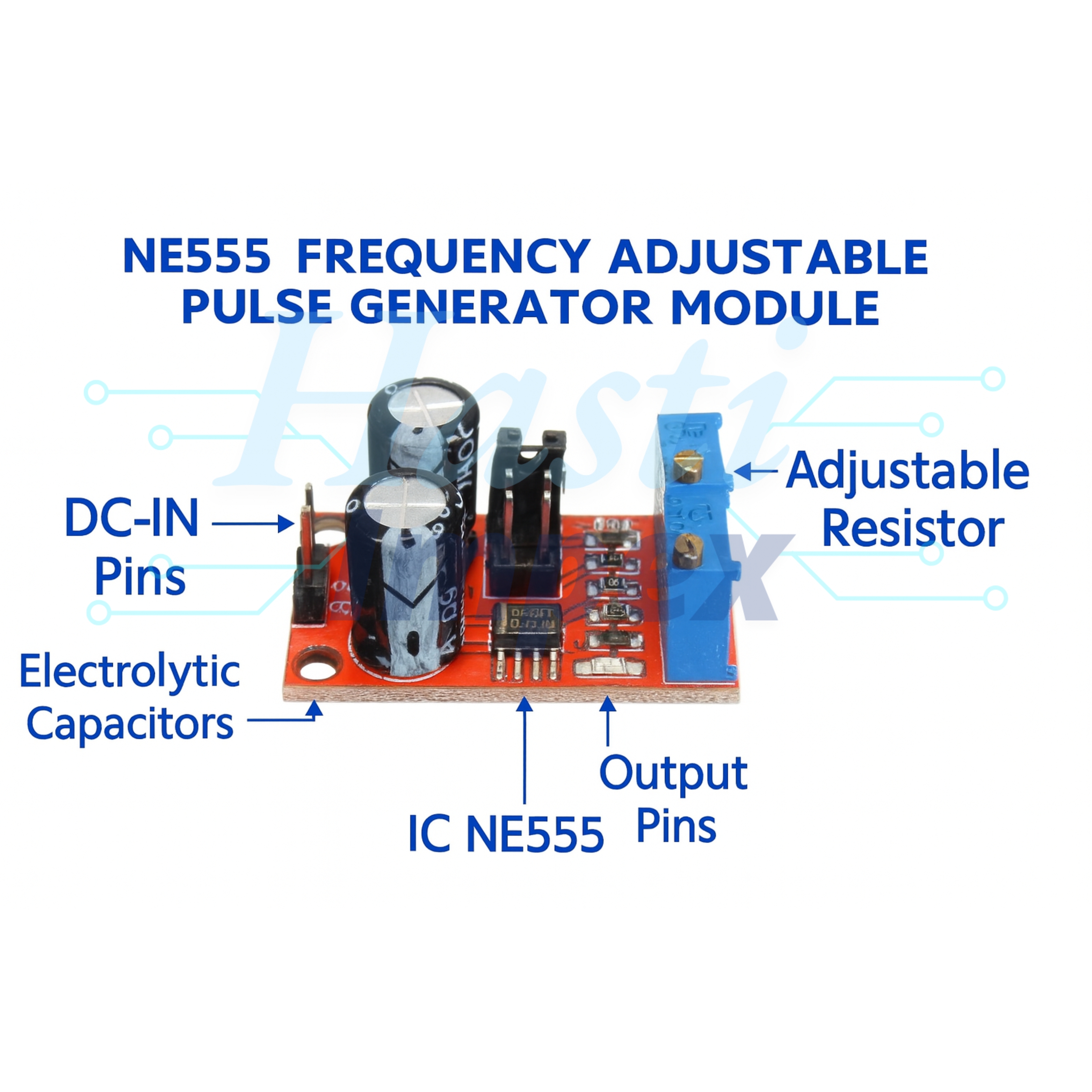

Diagram:
Specifications:
| Operating Voltage | 5V to 15V DC |
| Frequency Range | 1 Hz to 100 kHz |
| Duty Cycle Adjustment | 0% to 100% |
| Output Current | Up to 200mA |
| Output Signal Type | Square Wave |
| Timing Accuracy | ±2% |
| Module Dimensions | 40mm x 30mm x 20mm |
| Weight | 10g |
