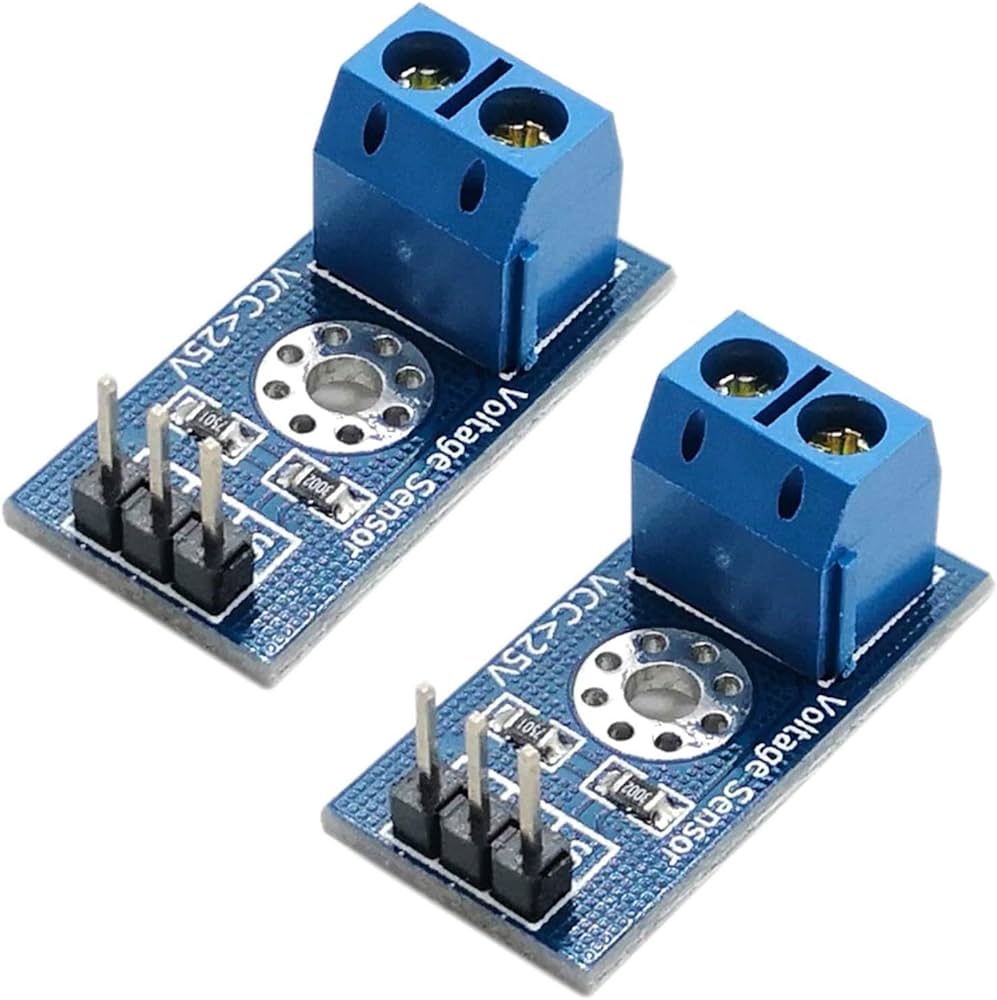

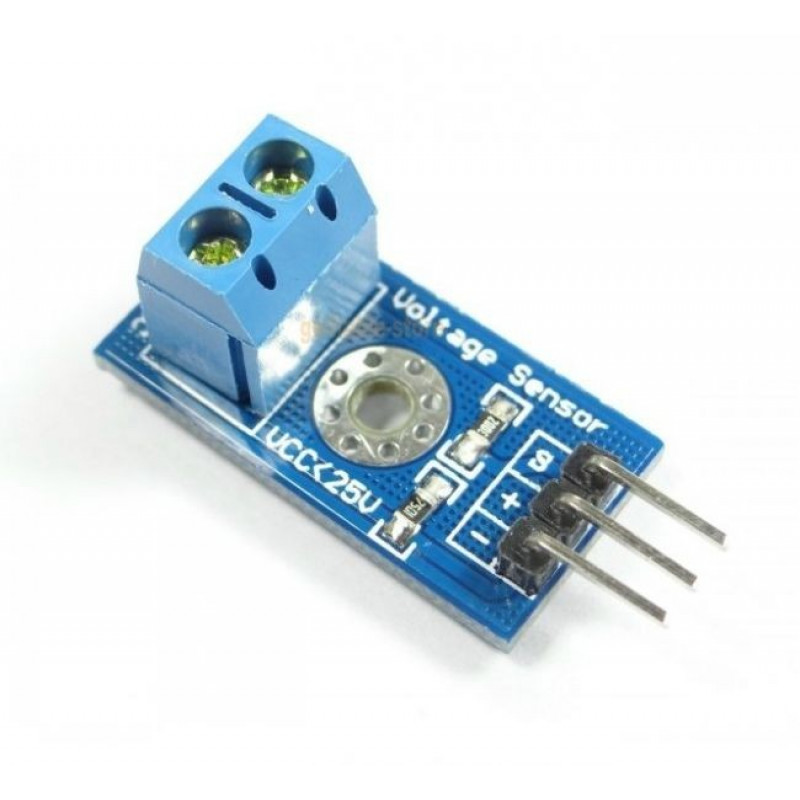

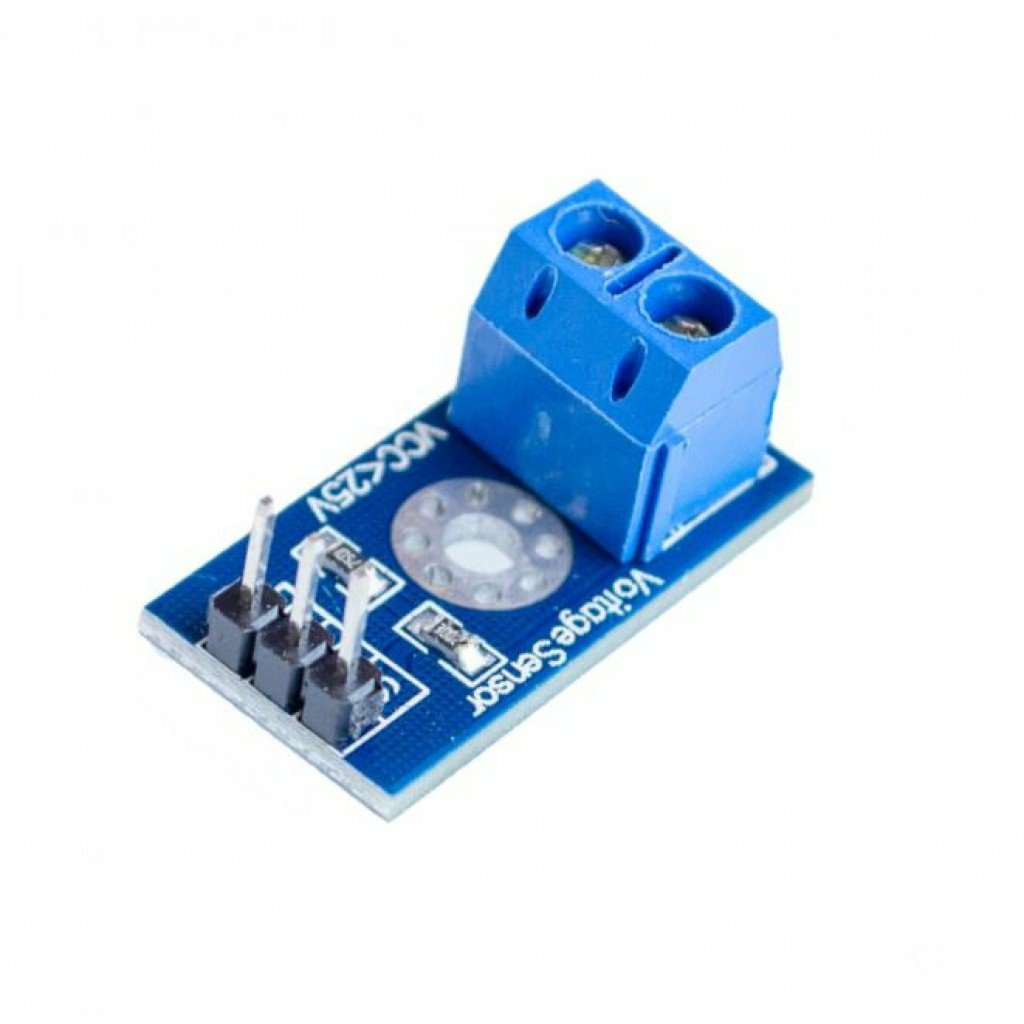

Voltage Detection Sensor Module 25V
Description:
Voltage Detection Sensor Module 25V is an essential tool for monitoring and detecting voltage levels in electrical circuits, making it ideal for a wide range of applications including battery management systems, power supply monitoring, and electronic projects. This module is specifically designed to measure voltage up to 25V, providing users with an easy and reliable way to detect voltage levels within this range and make decisions based on this information.
The module typically operates by comparing the voltage it detects from the input with a reference voltage. When the voltage crosses a certain threshold (either too high or too low), the module sends an output signal, often in the form of a high/low digital signal or a relay activation. This allows it to be used for simple overvoltage or undervoltage protection, automatic switching, or triggering other devices based on voltage levels.
Features:
1. Voltage Detection Range
2. Digital Output
3. Overvoltage and Undervoltage Detection
4. Easy Integration with Microcontrollers
5. Low Power Consumption
6. Simple, User-Friendly Design
7. Adjustable Sensitivity (Optional)
8. Multiple Applications
9. Built-in Protection

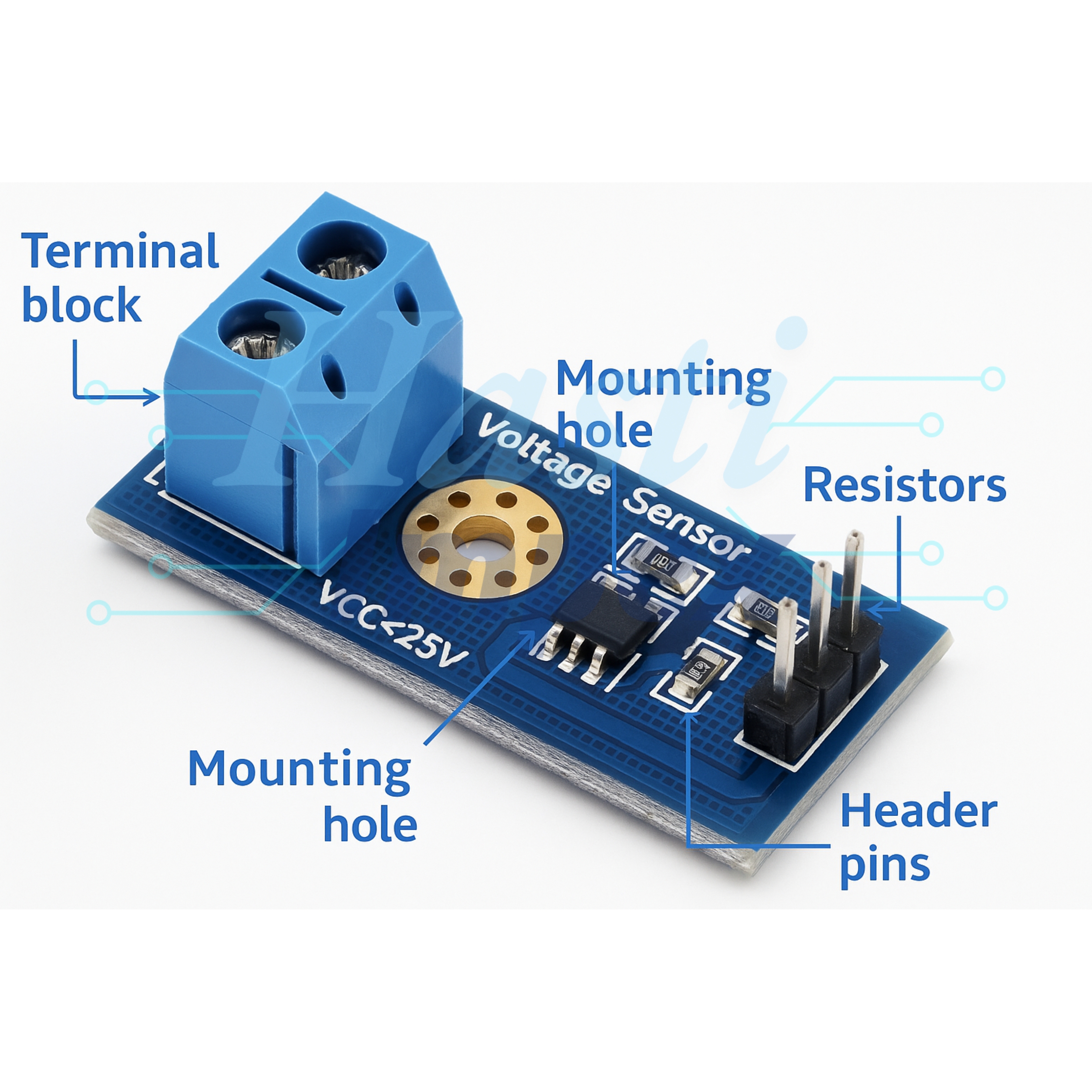

Diagram:
Specifications:
| Operating Voltage | DC 5V or 3.3V |
| Voltage Detection Range | 0V to 25V |
| Output Type | Digital output (HIGH/LOW) |
| Output Voltage | HIGH: VCC (e.g., 5V) / LOW: GND |
| Current Consumption | < 10mA |
| Response Time | < 1 ms |
| Working Temperature | -40°C to 85°C |
| Pin Configuration | VCC, GND, OUT |
| Size | Approx. 4 cm x 3 cm |
