XH-M602 Digital Battery Charging Control Module
Description:

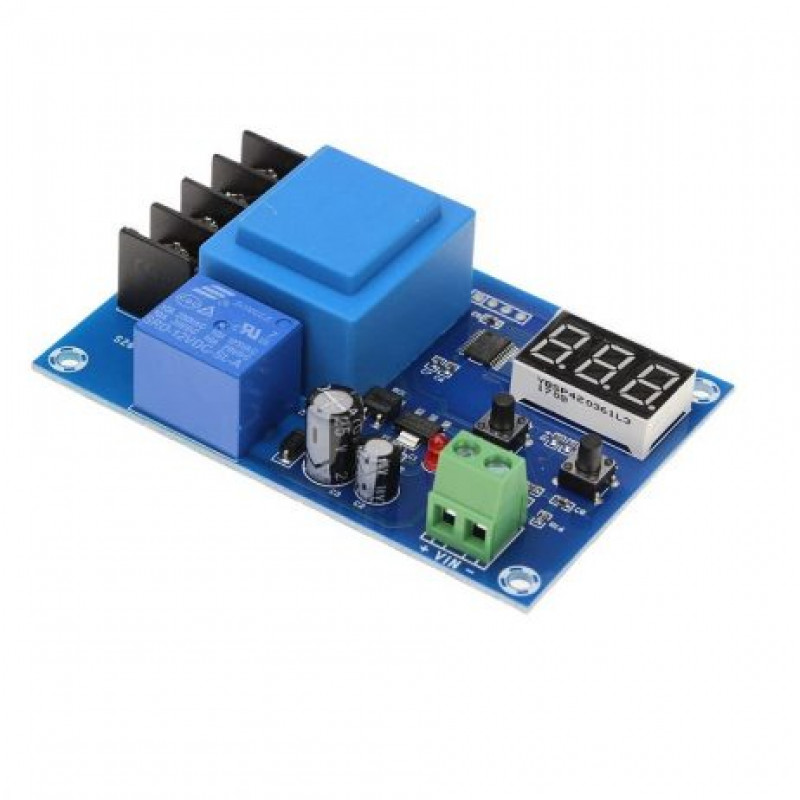

The XH-M602 Digital Battery Charging Control Module is a versatile electronic module designed to control the charging process of batteries, particularly lithium-ion (Li-ion) or lithium-polymer (LiPo) batteries. Here's how you can use it:
-
Battery Charging: The primary function of the XH-M602 module is to regulate the charging process of batteries. It supports both constant voltage (CV) and constant current (CC) charging modes, ensuring safe and efficient charging.
-
Voltage and Current Regulation: The module allows you to set the desired charging voltage and current using onboard potentiometers or switches. This provides flexibility in charging different types and sizes of batteries within the module's specified voltage and current ranges.
-
Digital Display: The module features a digital display that shows real-time information such as charging voltage, charging current, battery status, and error messages. This allows you to monitor the charging process and make adjustments as needed.
-
Overcurrent Protection: The XH-M602 module includes overcurrent protection circuitry to prevent excessive current from damaging the battery or the charging circuit. If the current exceeds the preset limit, the module automatically reduces the charging current to a safe level or shuts off charging altogether.
-
Temperature Monitoring: Some versions of the module may include temperature monitoring capabilities to prevent overheating during charging. If the temperature rises above a certain threshold, the module may reduce the charging current or temporarily halt charging until the temperature returns to a safe level.
-
Reverse Polarity Protection: The module may also feature reverse polarity protection to prevent damage to the battery or the module in case the battery is connected with reversed polarity.
-
Application: The XH-M602 module can be used in various applications requiring battery charging, such as DIY projects, portable electronics, solar power systems, RC hobbyist applications, and more.
To use the XH-M602 Digital Battery Charging Control Module:

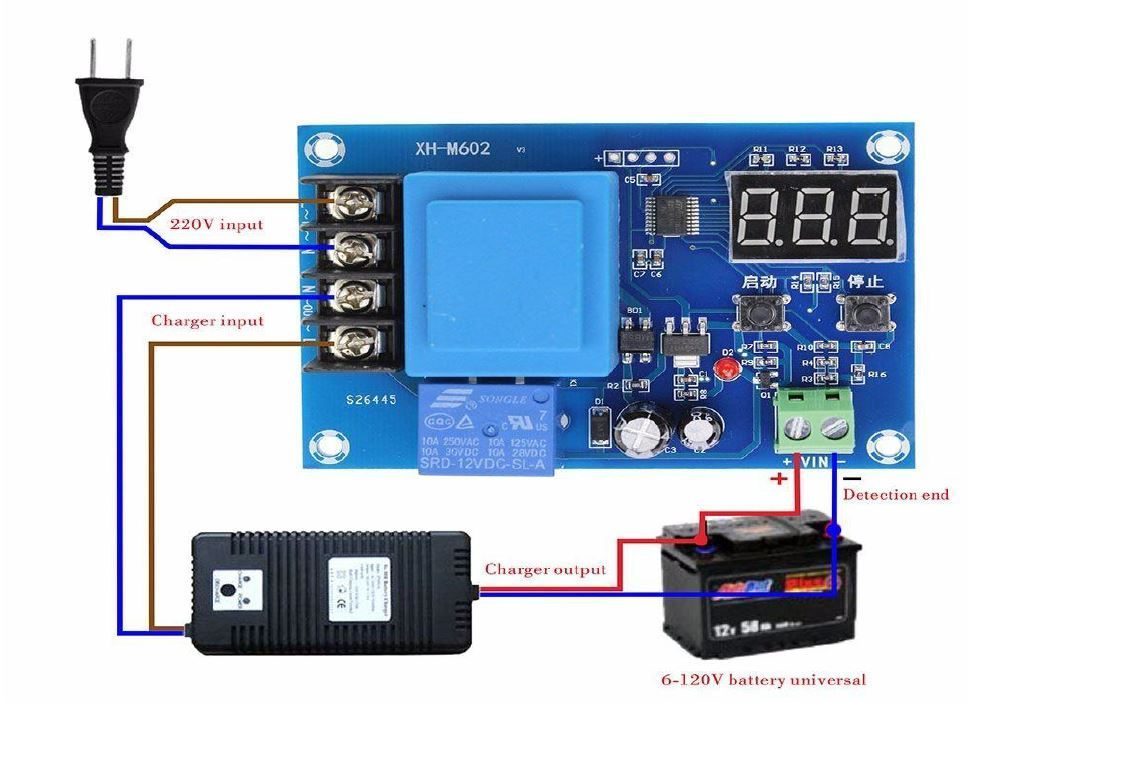

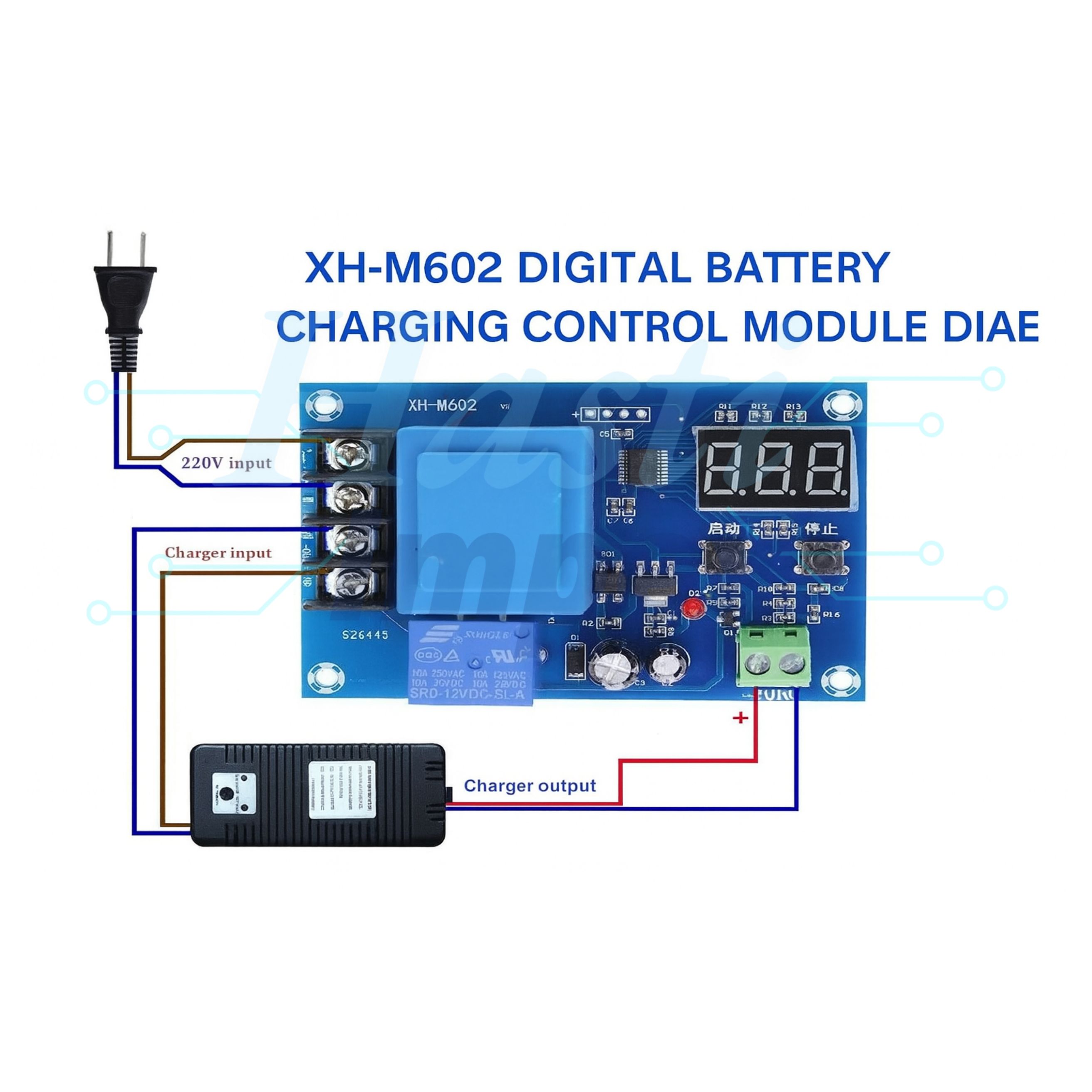

- Connect the positive and negative terminals of the battery to the corresponding terminals on the module.
- Adjust the charging voltage and current settings using the onboard potentiometers or switches according to the specifications of your battery.
- Monitor the digital display to ensure that the charging parameters are set correctly and that the charging process is proceeding as expected.
- Connect a suitable DC power supply to the module's input terminals to provide power for charging.
- Once the battery is fully charged, disconnect the power supply or switch off the charging module to prevent overcharging.
Ensure that you carefully read the module's datasheet and user manual for detailed instructions on setup, operation, and safety precautions. It's essential to use the module within its specified voltage and current limits to avoid damage to the battery or the module itself.
