XL4005 - 5A - DSN5000 - High Current - DC-DC Adjustable Step-Down Power Supply Module
Description:
The XL4005-5A-DSN5000 is a high-current DC-DC adjustable step-down power supply module, commonly used in various electronic projects to efficiently regulate voltage from a higher input voltage to a lower output voltage. Here's how you can use it:
-

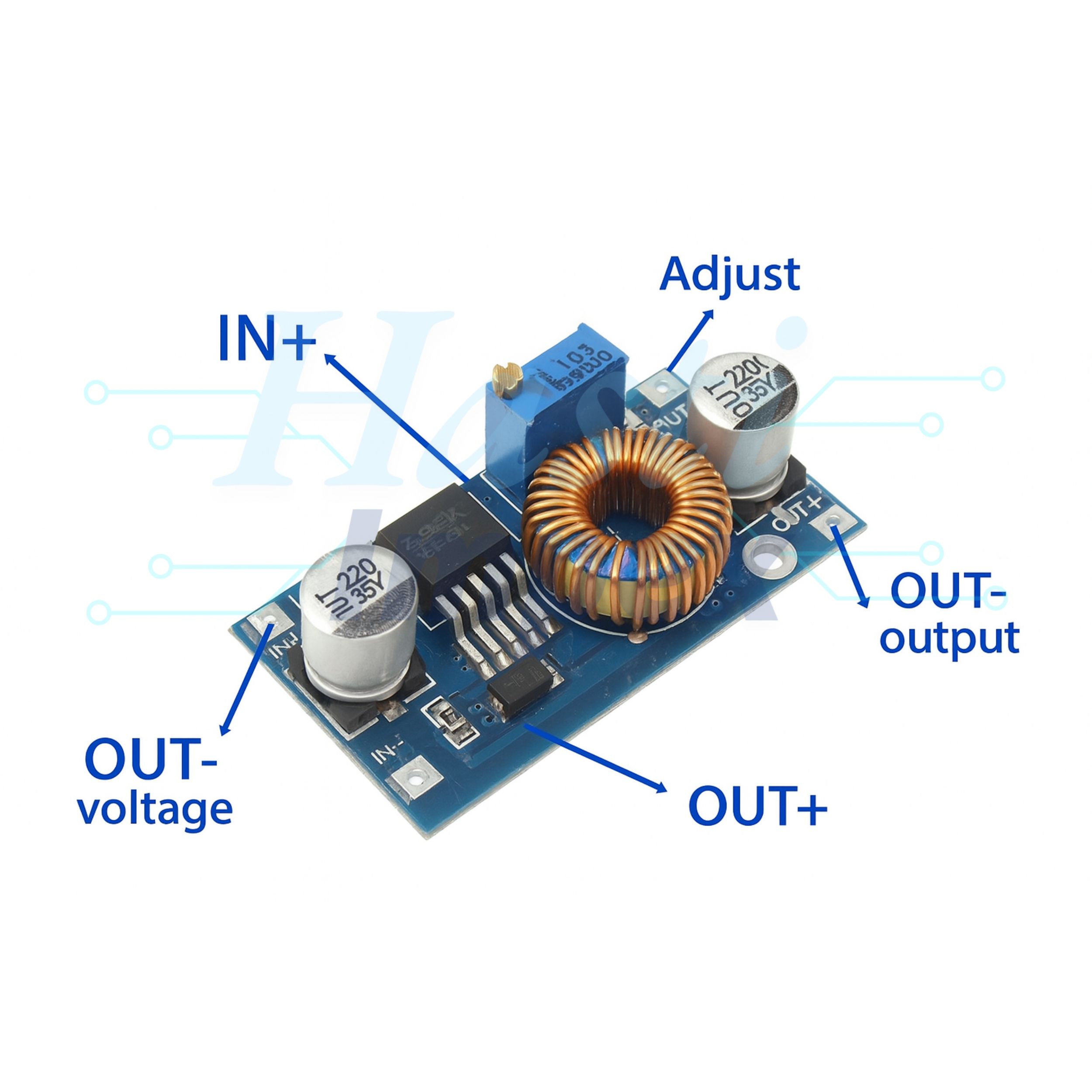

Input Power Supply: Connect the input terminals of the module to your power source. The XL4005 module typically supports a wide input voltage range (e.g., 5V to 32V), but it's essential to ensure that the input voltage does not exceed the module's maximum specified voltage. You can use a variety of power sources, such as batteries, DC power supplies, or solar panels, depending on your application requirements.
-

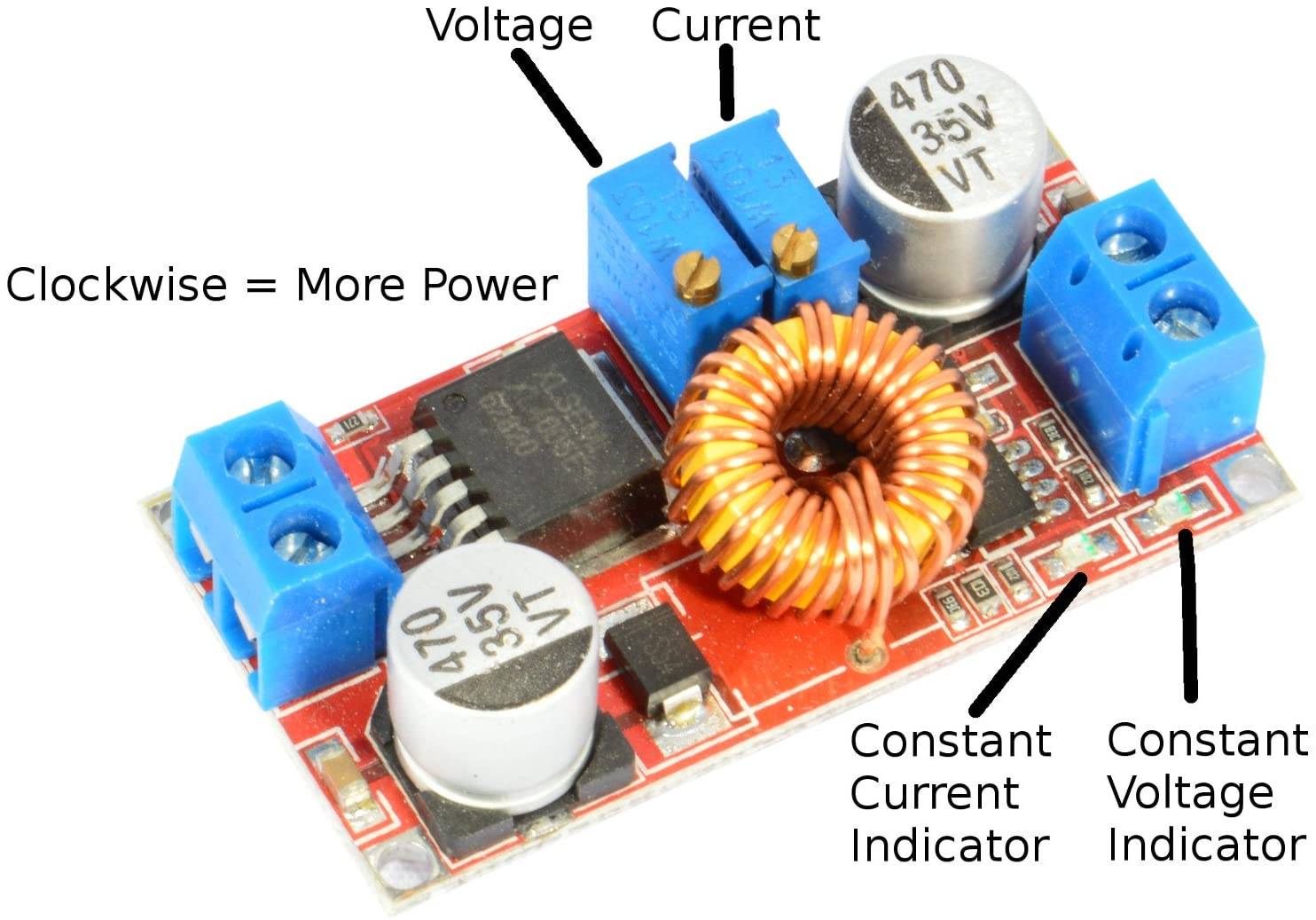

Output Voltage Adjustment: The XL4005 module allows you to adjust the output voltage according to your needs. Use a small screwdriver to turn the trimmer potentiometer or multi-turn trimmer resistor on the module to set the desired output voltage. You can typically adjust the output voltage within a specific range (e.g., 1.25V to the input voltage).
-
Load Connection: Connect your load (e.g., electronic circuits, devices, or components) to the output terminals of the module. Ensure that the polarity is correct and that the load's voltage and current requirements are compatible with the output voltage and current capabilities of the XL4005 module.
-
Output Current Limitation: Some XL4005 modules may include a current-limiting feature to protect the module and the connected load from excessive current. If your module has this feature, adjust the current limit according to the maximum current rating of your load. This feature is especially useful when powering sensitive components or devices that require precise current control.
-
Thermal Considerations: The XL4005 module may generate heat during operation, especially when stepping down higher input voltages or delivering higher output currents. Ensure that the module has adequate heat dissipation and ventilation to prevent overheating. Consider adding a heat sink to the XL4005 IC or providing additional cooling if necessary.
-
Testing and Verification: Before connecting sensitive or expensive components to the output of the XL4005 module, verify its performance by measuring the output voltage and current under different load conditions. Use a multimeter or an oscilloscope to ensure that the output voltage is stable and within the desired range and that the module can deliver the required current to your load.
-
Integration: Integrate the XL4005 module into your electronic project or system as needed. You can use it in various applications, such as powering microcontroller boards, LED lighting systems, motor control circuits, and more.
