0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter Green
Description:
The 0.72 cm (0.28 inch) 0-100V Three Wire DC Voltmeter in green is a miniature voltage measuring instrument tailored for DC circuits. Featuring a compact design with a 0.72 cm (0.28 inch) diameter green display, it's particularly suitable for projects where space is limited.
This voltmeter is adept at measuring voltages within the range of 0 to 100 volts, ensuring precise readings for monitoring various DC power sources. Its three-wire configuration facilitates easy installation and ensures dependable measurement accuracy.
Combining functionality with an appealing green display, this voltmeter is an excellent choice for hobbyists, electronics enthusiasts, and professionals engaged in projects involving DC circuits.
Features:
1. Wide Voltage Range (0-100V)
2. Three-Wire Design
3. Green LED Display
4. Compact Display (0.72 cm / 0.28 inch)
5. Low Power Consumption
6. High Precision & Accuracy
7. Quick Response Time
8. Durable and Reliable
9. Easy Integration
10. Ideal for DIY and Professional Use

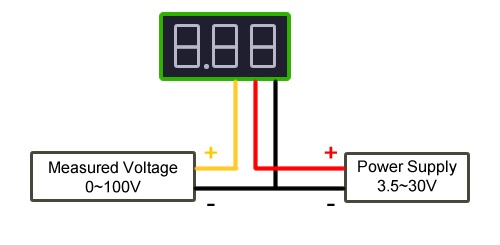

Diagram:
Specifications:
| Display Type | 3-digit 0.28 inch (0.72 cm) Green LED |
| Measuring Voltage Range | DC 0V to 100V |
| Working Voltage | DC 4.5V to 30V (for meter power supply) |
| Minimum Measuring Voltage | DC 0V (with separate power) |
| Measuring Accuracy | ± (1% + 1 Digit) |
| Refresh Rate | Approx. 500ms |
| Display Color | Green LED |
| Operating Temperature | -10°C to +65°C |
| Dimensions (LxWxH) | 30mm x 11mm x 8mm |
| Weight | ~4 grams |
