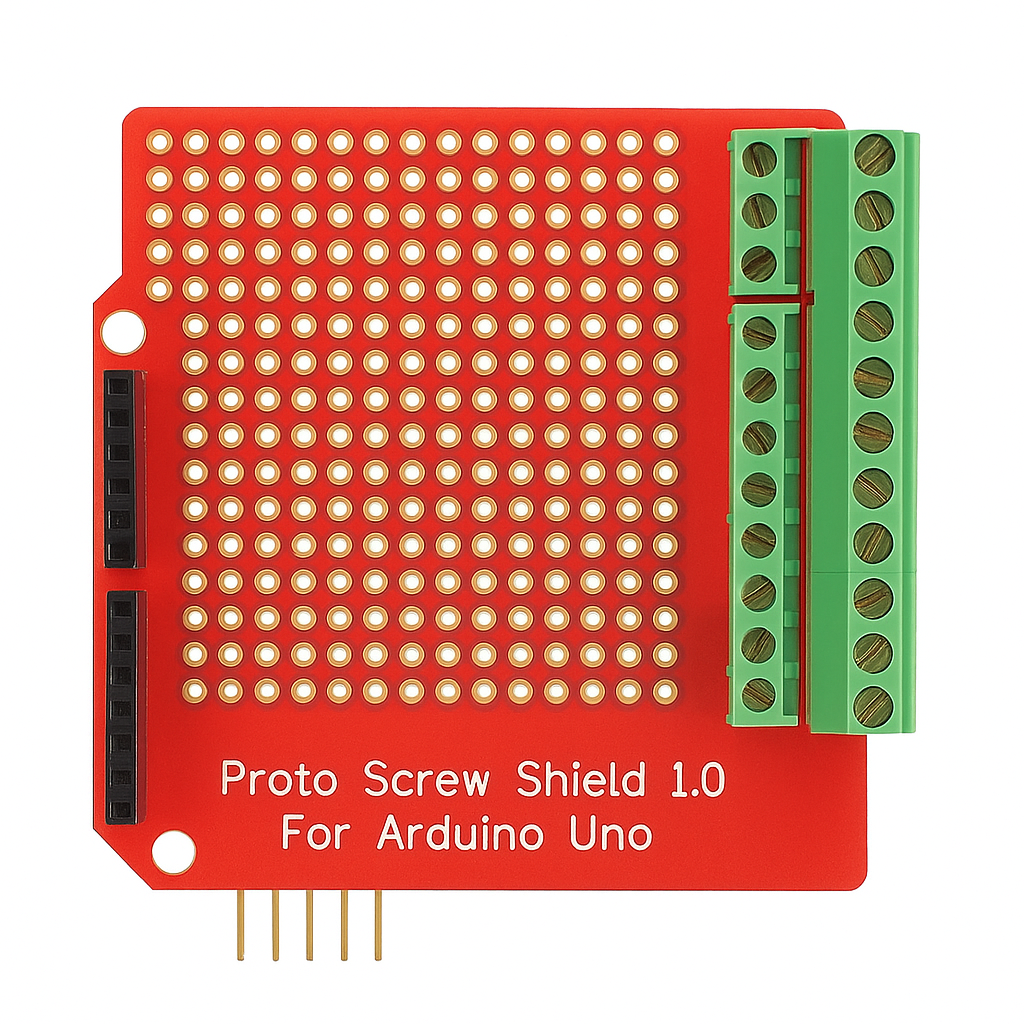

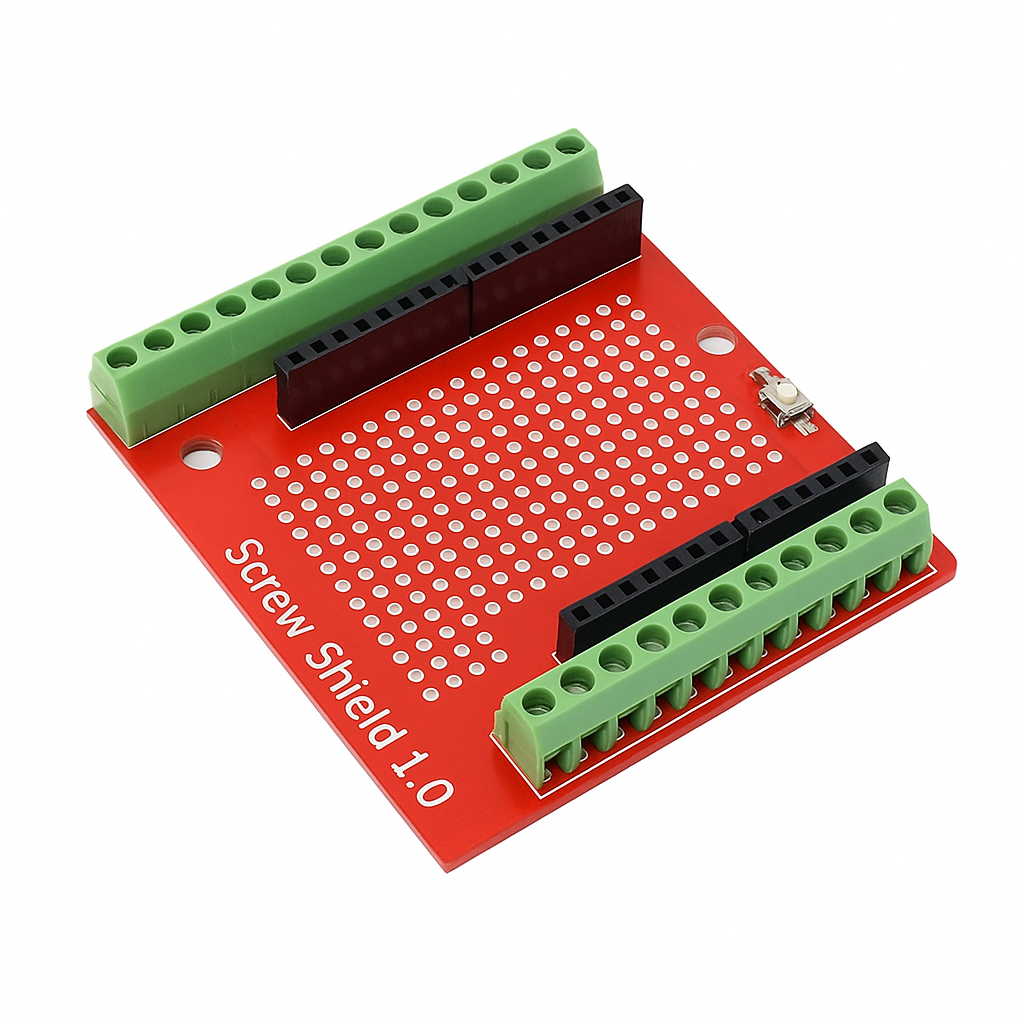

Proto Screw Shield 1.0 For Arduino Uno
Description:
Proto Screw Shield 1.0 for Arduino Uno is an accessory board designed to simplify the process of prototyping and connecting electronic components to the Arduino Uno microcontroller. It provides an easy and reliable way to create custom circuits without the need for soldering or breadboards. With its convenient screw terminals, the Proto Screw Shield is ideal for users who want to quickly connect wires, sensors, actuators, and other components to their Arduino board.
Features:
1. Screw Terminals for Easy Wiring
2. No Soldering Required
3. Full Compatibility with Arduino Uno
4. Supports Both Power and Ground Connections
5. Flexible and Customizable
6. Secure Connections
7. Compact Design

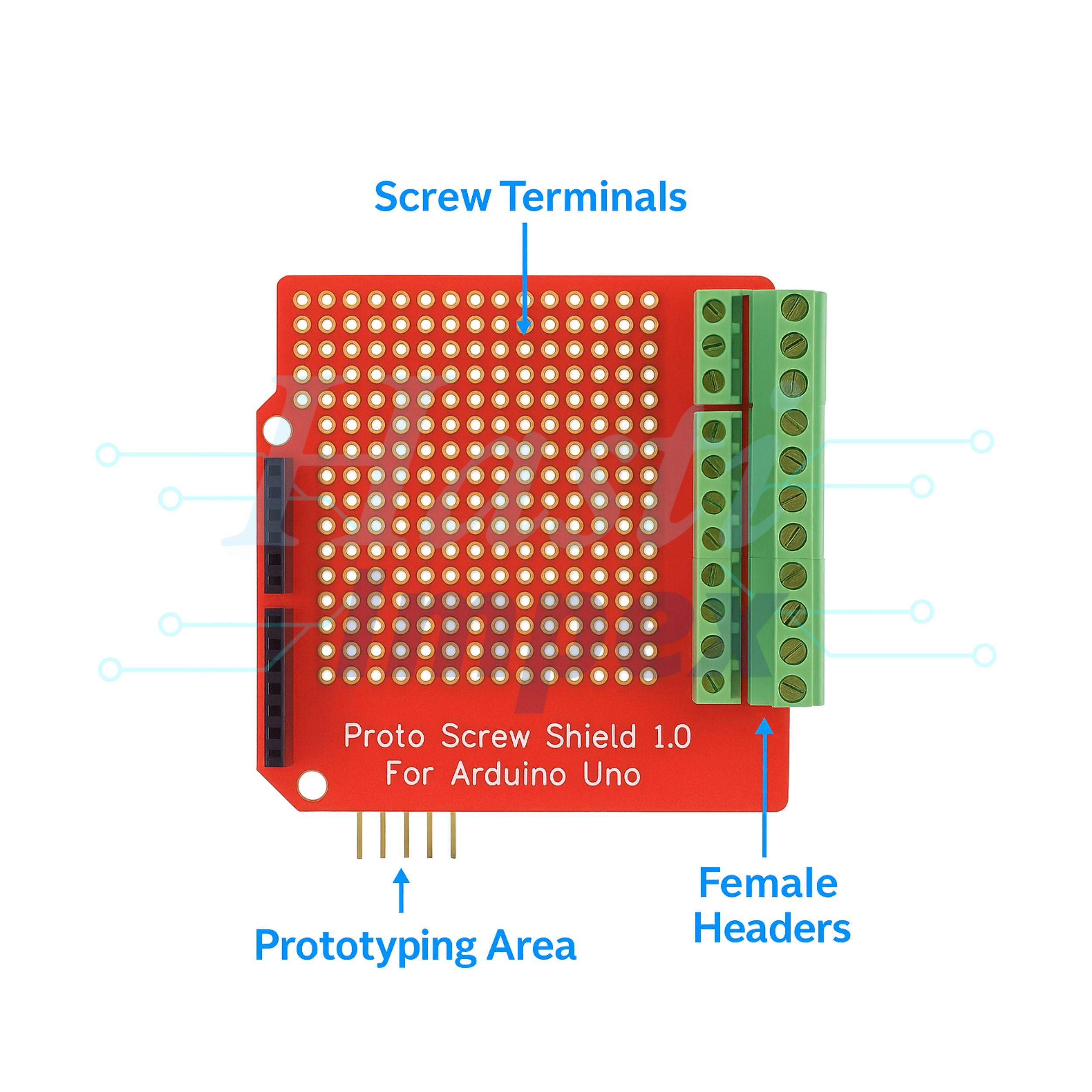

Diagram:
Specifications:
| Model Type | Screw Shield |
| Compatibility | Uno |
| Digital Pins | 14 digital I/O pins |
| Analog Pins | 6 analog pins |
| Power Pins | 5V, GND, and 3.3V |
| Dimensions | 2.7 x 2.1 inches |
| Weight | 30-40 g |
| Material | FR4 PCB |
