PWM to Voltage 0-100% to-10V Converter Module
Description:
PWM to Voltage 0-100% to -10V Converter Module is a specialized electronic module designed to convert a PWM (Pulse Width Modulation) signal into a corresponding analog voltage output in the range of 0V to -10V. This module is widely used in applications where a PWM signal, which is often used for controlling motors, LEDs, or other devices, needs to be translated into a more usable voltage level for further processing or control.
Features:
1. PWM to Voltage Conversion
2. Wide Duty Cycle Range (0-100%)
3. Output Voltage Range
4. Linear Relationship
5. Precise Control
6. Wide Input Voltage Range
7. Compact and Easy to Use
8. Analog Voltage Output
9. Low Power Consumption
10. Protection Features

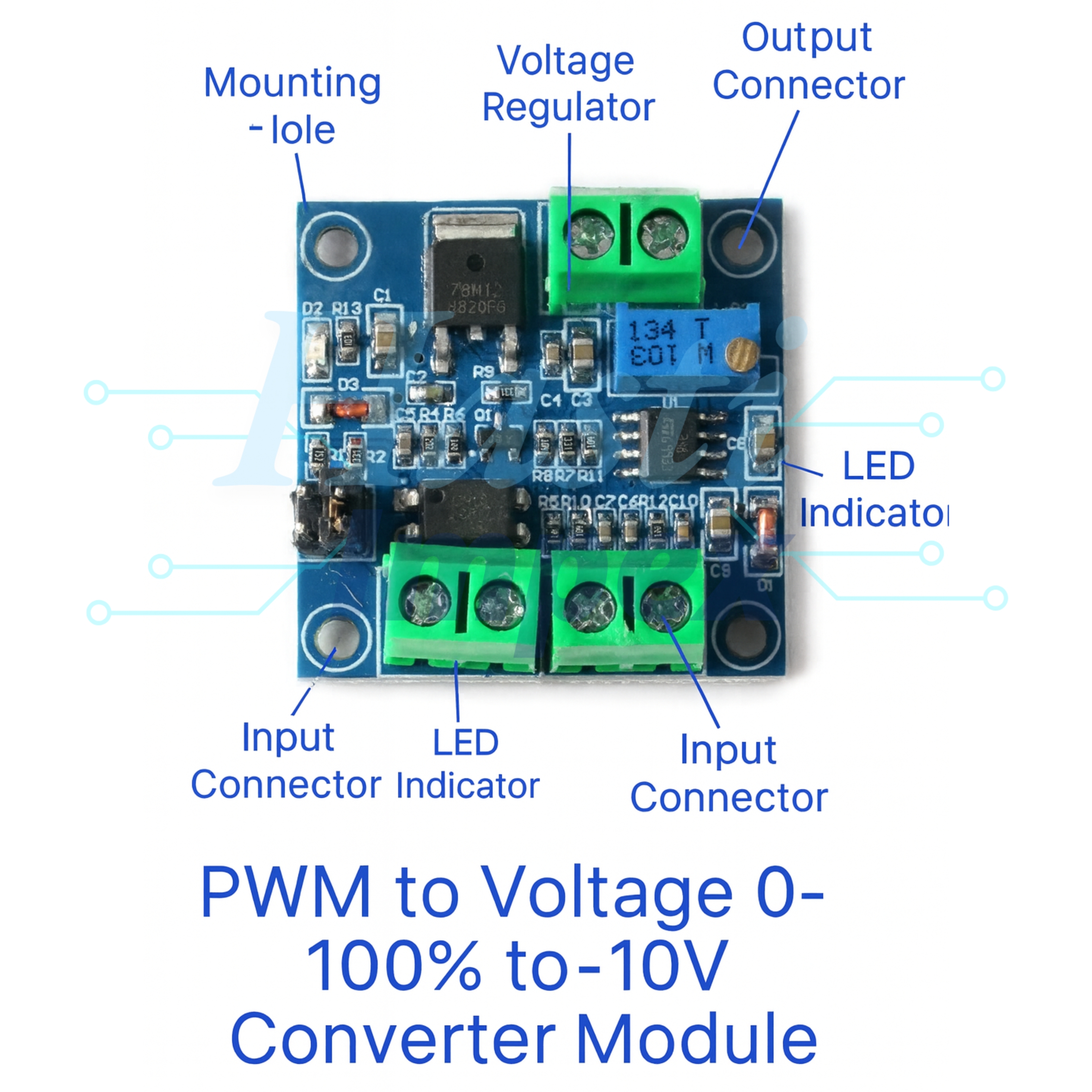

Diagram:
Specifications:
| Frequency Range | 1 kHz to 50 kHz |
| Output Voltage Range | 0V to -10V |
| Power Supply Voltage | 5V or 12V DC |
| Current Consumption | <50mA |
| Response Time | milliseconds |
| Temperature Range | 0°C to 70°C |
| Size | 50mm x 30mm |
