TM1638 8-Bit Button Digital LED Display Module
Description:
TM1638 8-Bit Button Digital LED Display Module is a versatile and compact display module designed for use in embedded systems, electronics projects, and devices requiring LED-based output and button-based input. This module integrates a set of 8 LEDs for displaying numbers, characters, or symbols, and 8 tactile push buttons that can be used for input functions. The TM1638 is based on the TM1638 chip, a powerful LED driver with integrated button scanning and control, which makes it ideal for projects where visual feedback and user input are both needed.
This module is commonly used in applications like digital clocks, status indicators, alarm systems, DIY electronics projects, and other devices where both LED displays and button inputs are required. It communicates with microcontrollers, such as Arduino, Raspberry Pi, or other platforms, via the 4-wire serial communication interface, making it easy to interface and control.
Features:
1.8-Bit 7-Segment LED Display
2. 8 Push Buttons
3. TM1638 Chip
4. Multiple Modules Support
5. Simple Wiring
6. Adjustable Brightness
7. Easy Programming
8. Low Power Consumption
9. Versatile Applications

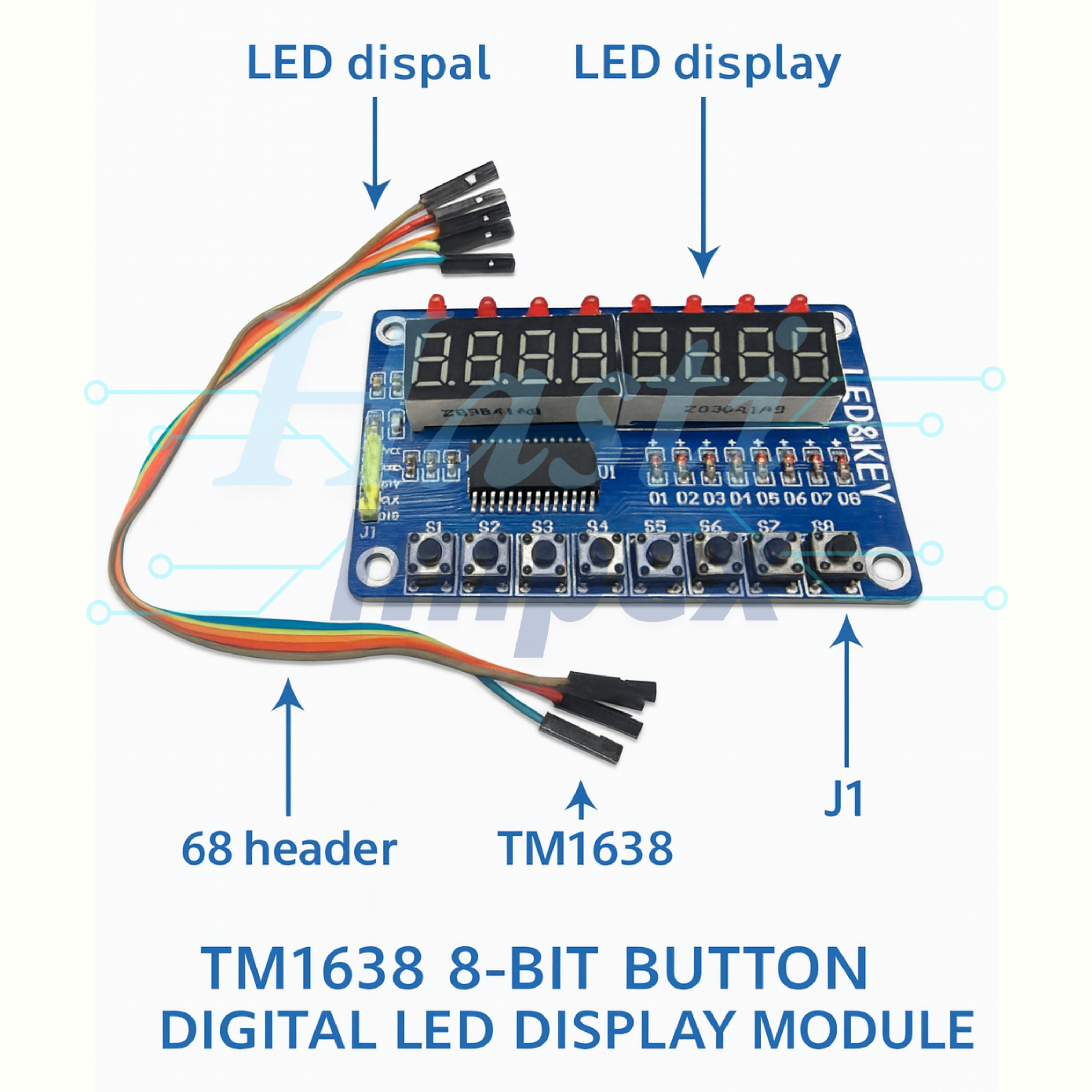

Diagram:
Specifications:
| Model Type: | LED Display Module |
| Rated Voltage (VDC) | 12 |
| Operating Voltage (VDC) | DC 7.0V-13.6V |
| Input Current (A) | 0.24A |
| Rated Speed (RPM) | 9500RPM |
| Operating Temperature (°C) | -10°C ~ 70°C |
| Dimensions (LxWxH) mm | 76 x 50 x 10mm |
| Weight (g) | 27 |
