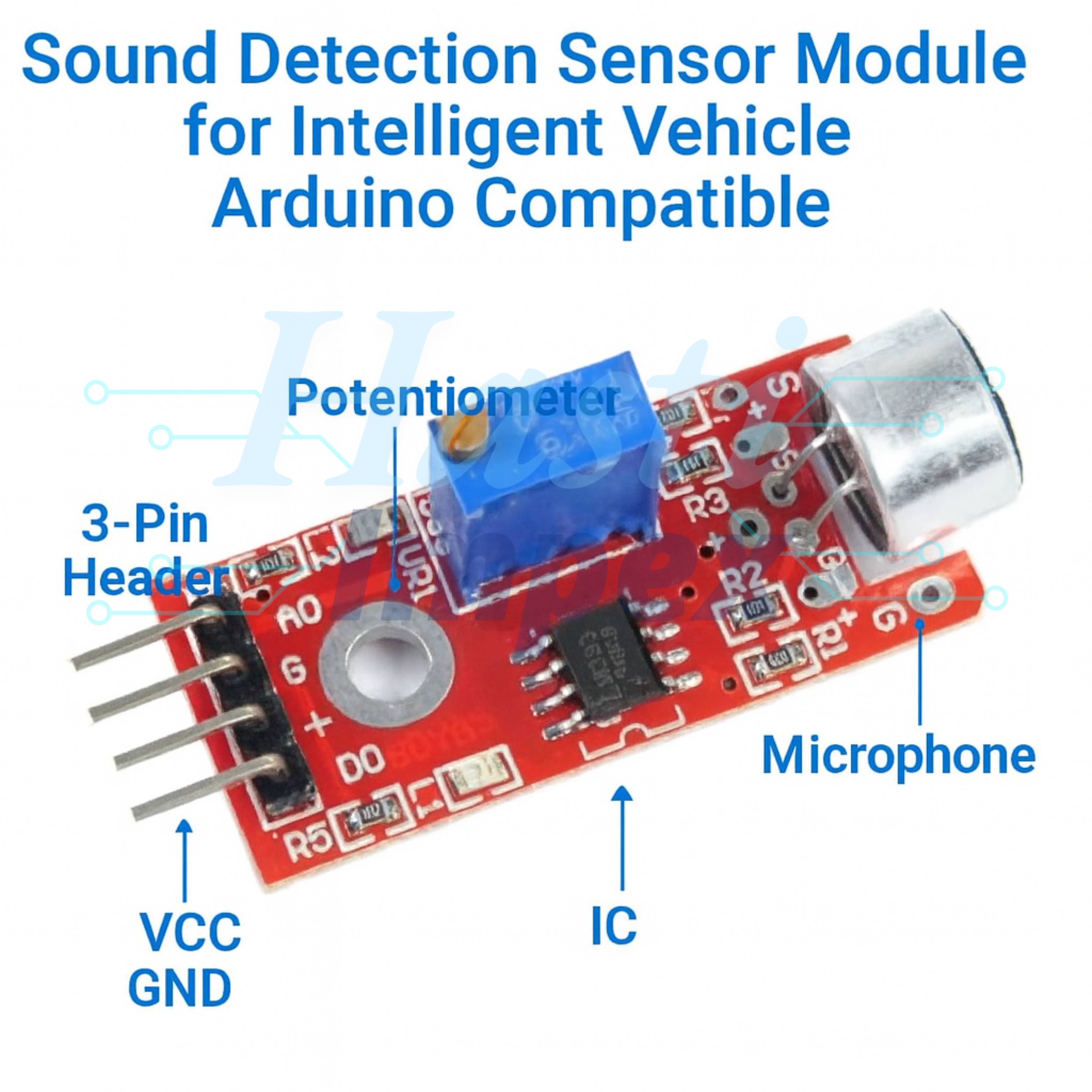

A Sound Detection Sensor Module is a device that detects sound levels and can be used with an Arduino or other microcontroller platforms for various applications, including intelligent vehicles. Below is a detailed description of its use and features:

Description

• Type: Sound Detection Sensor Module
• Compatibility: Arduino and other microcontrollers

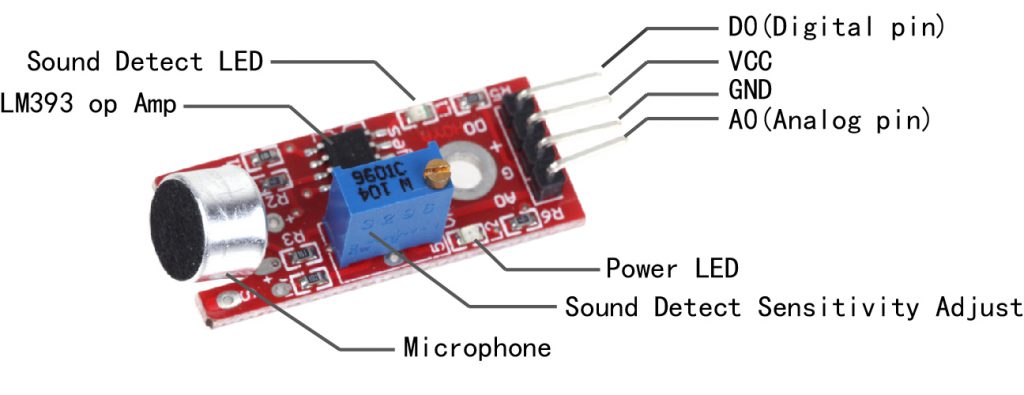

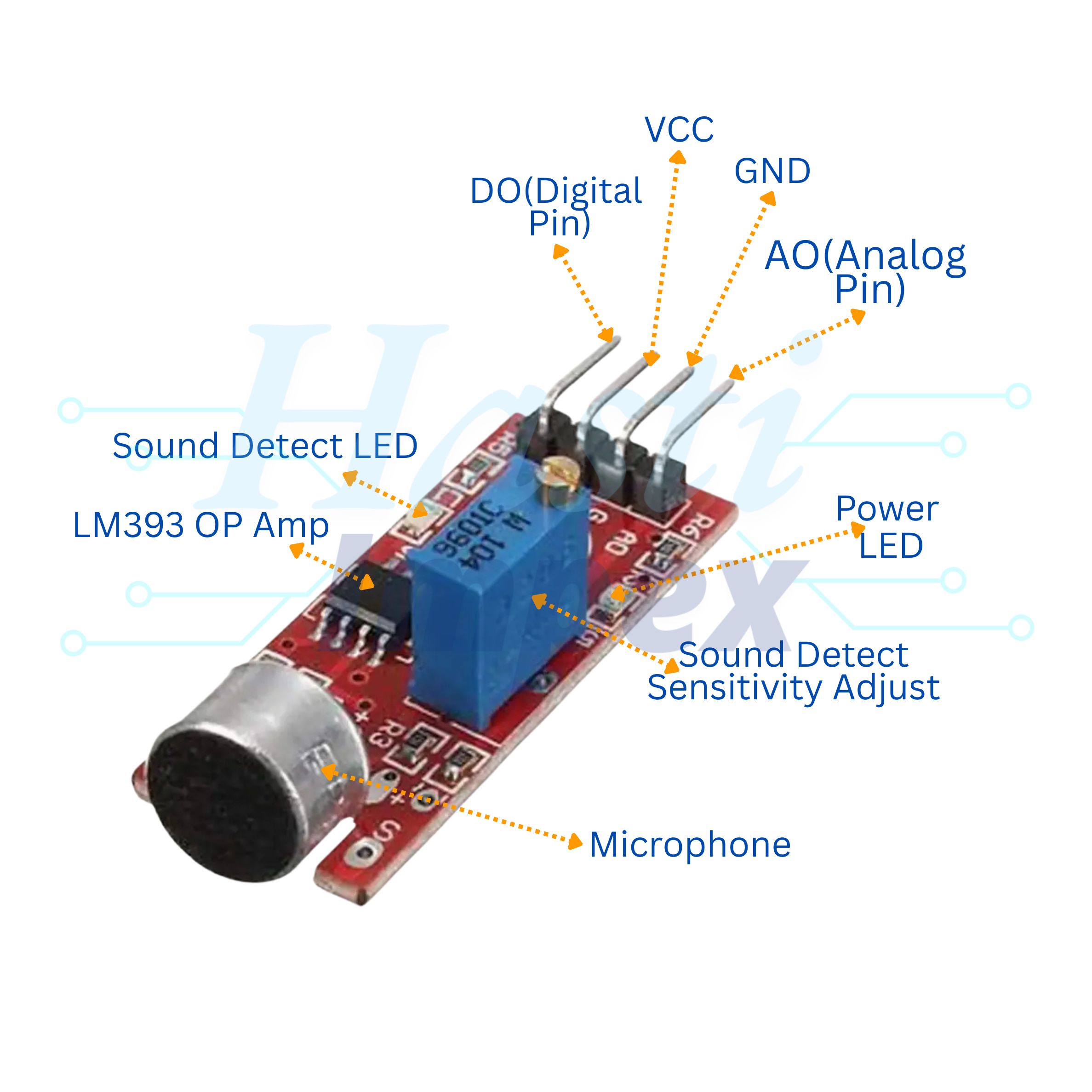

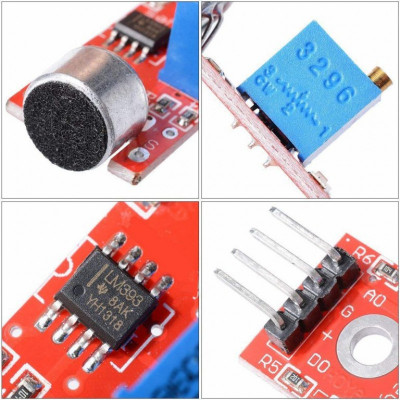

• Components: Microphone, amplifier, comparator, output LED, and potentiometer for sensitivity adjustment

Features

1. Microphone:
   • Captures ambient sound levels in the environment.
2. Amplifier:
   • Amplifies the captured sound signal for processing.
3. Comparator:
   • Compares the amplified sound signal against a set threshold to determine if the sound level is significant.
4. Sensitivity Adjustment:
   • A potentiometer allows for adjusting the sensitivity of the sensor to different sound levels.
5. Digital and Analog Outputs:
   • Provides both digital and analog output signals. The digital output indicates if the sound level has crossed the threshold, while the analog output gives a continuous representation of the sound level.

Use

1. Intelligent Vehicle Applications:

   • Can be used in intelligent vehicle systems for various purposes like voice-activated controls, security alarms, and environmental noise monitoring.

2. Voice-Activated Systems:

   • Integrate into systems where sound commands are used to trigger actions, such as starting the vehicle or controlling multimedia systems.

3. Security Alarms:

   • Used to detect loud noises such as breaking glass or forced entries, triggering alarms or alerts.

4. Environmental Monitoring:

   • Monitor noise levels inside the vehicle to ensure a quiet and comfortable environment for passengers.

Technical Specifications

• Operating Voltage: 3.3V to 5V DC
• Output Types: Digital and Analog
• Sensitivity Adjustment: Via onboard potentiometer
• LED Indicator: Lights up when sound level exceeds the set threshold
• Dimensions: Compact and easily integrable into various systems

Installation and Setup

1. Connecting to Arduino:

   • VCC: Connect to the 5V pin on the Arduino.
   • GND: Connect to the GND pin on the Arduino.
   • Digital Output (D0): Connect to a digital input pin on the Arduino.
   • Analog Output (A0): Connect to an analog input pin on the Arduino if continuous sound level data is needed.

2. Adjusting Sensitivity:

   • Use the potentiometer on the sensor module to set the desired sensitivity level. Turning the potentiometer changes the threshold at which the digital output is triggered.

3. Programming the Arduino:

   • Write a sketch to read the digital or analog signal from the sensor and perform actions based on the detected sound levels.

Example Arduino Sketch

Here is an example sketch to read from the sound detection sensor and turn on an LED if the sound level exceeds the threshold:

Applications

1. Voice-Activated Controls:
   • Enable voice commands to control vehicle systems like starting the engine, controlling the infotainment system, or adjusting the climate control.
2. Security Systems:
   • Implement sound-based security features that detect unusual noises, triggering alarms or sending alerts to the vehicle owner.
3. Passenger Comfort:
   • Monitor cabin noise levels to automatically adjust noise cancellation systems or provide feedback to the driver about excessive noise.

In summary, the Sound Detection Sensor Module is a versatile and straightforward component that can enhance the functionality of intelligent vehicles by enabling sound-based interactions and monitoring.
