ULN2003 Stepper Motor Driver Board

Description:

The ULN2003 Stepper Motor Driver Board is a widely used module for driving stepper motors. Here's how you can use it effectively:

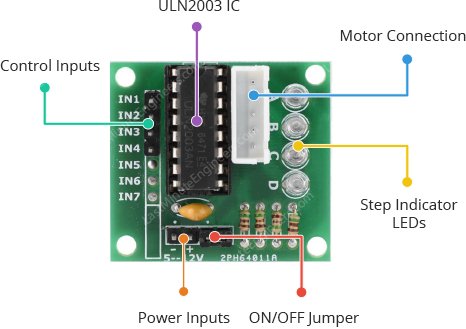

  1. Understanding the Module: Familiarize yourself with the ULN2003 Stepper Motor Driver Board and its components. It typically includes a ULN2003A driver IC, input pins for controlling the motor, and output pins for connecting to the stepper motor.

  2. Connections: Connect the ULN2003 driver board to your microcontroller or development board. It usually requires connections for power (VCC and GND) and control signals. Each control input corresponds to a phase of the stepper motor.

  3. Stepper Motor Connections: Connect your stepper motor to the output pins of the ULN2003 driver board. Ensure correct wiring of the motor coils to the appropriate output pins to enable proper motor movement.

  4. Power Supply: Supply the driver board with the required voltage (usually 5V) and ensure proper current capacity to drive the stepper motor.

  5. Control Signals: Determine the sequence of control signals required to drive your stepper motor. The ULN2003 driver board typically operates in full-step or half-step mode, and you need to provide the appropriate sequence of control signals to step the motor.

  6. Microcontroller Interface: Interface the driver board with your microcontroller or development board. Send control signals from the microcontroller to the input pins of the ULN2003 driver board to control the movement of the stepper motor.

  7. Code Implementation: Write or download code to generate the required control signals for your stepper motor. Depending on your application, you may need to implement acceleration, deceleration, or position control algorithms.

  8. Testing: Test the stepper motor movement under different conditions to ensure proper operation. Verify that the motor steps in the correct direction and moves the desired number of steps as commanded by your code.

  9. Current Limiting: The ULN2003 driver IC has built-in current-limiting resistors for each output channel, which helps protect the motor from overcurrent conditions. Ensure that the current limit is suitable for your stepper motor.

  10. Integration: Integrate the ULN2003 Stepper Motor Driver Board into your project setup, ensuring proper mounting and electrical connections. Consider factors such as heat dissipation and electrical noise suppression to maintain reliable operation.

By following these steps, you can effectively use the ULN2003 Stepper Motor Driver Board to control stepper motors in various applications, such as robotics, CNC machines, 3D printers, and more.
