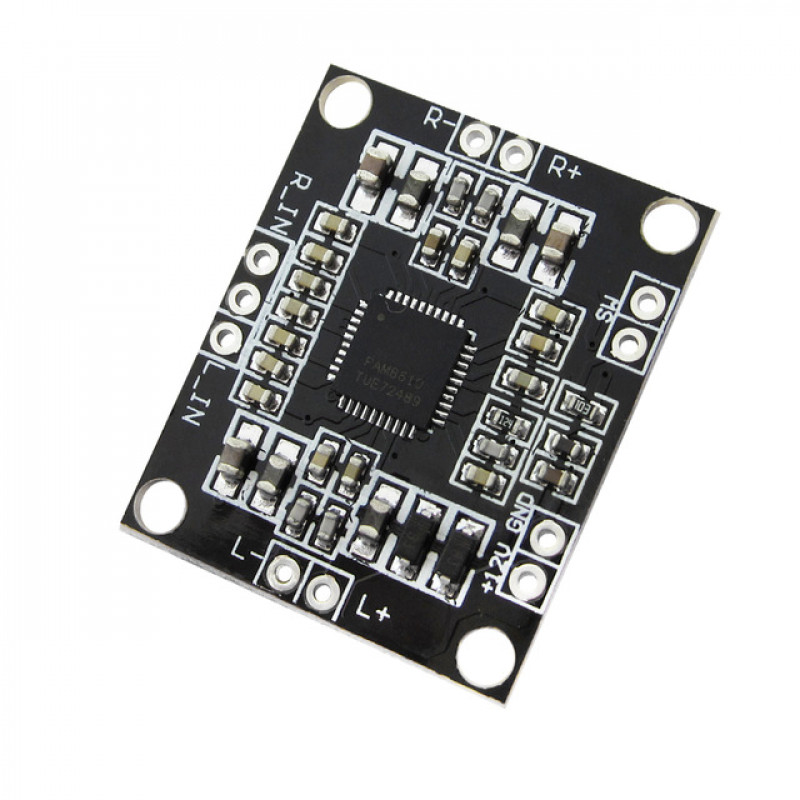

PAM8610 Digital Stereo Class-D Amplifier Module 2x15W Output
Description:
PAM8610 Digital Stereo Class-D Amplifier Module is a compact, high-performance audio amplifier designed for various audio applications. It is based on the PAM8610 integrated circuit, a digital stereo amplifier chip known for its high efficiency and low distortion characteristics. This amplifier module is ideal for powering small to medium-sized speakers and provides clear, high-quality audio output while being extremely energy-efficient.
Operating in the Class-D architecture, the PAM8610 offers an outstanding 2x15W stereo output, making it suitable for various audio projects like DIY speakers, portable audio systems, home audio systems, and car amplifiers. The module also boasts a low quiescent current and high efficiency, allowing it to operate without significant heat generation, making it a great choice for battery-powered applications.
Features:
1. Class-D Amplification Technology
2. High Output Power (2x15W)
3. Low Distortion and Noise
4. Wide Voltage Range
5. Compact Design
6. Efficient Heat Management
7. Protection Features
8. Easy to Use
9. Compatible with Various Audio Sources

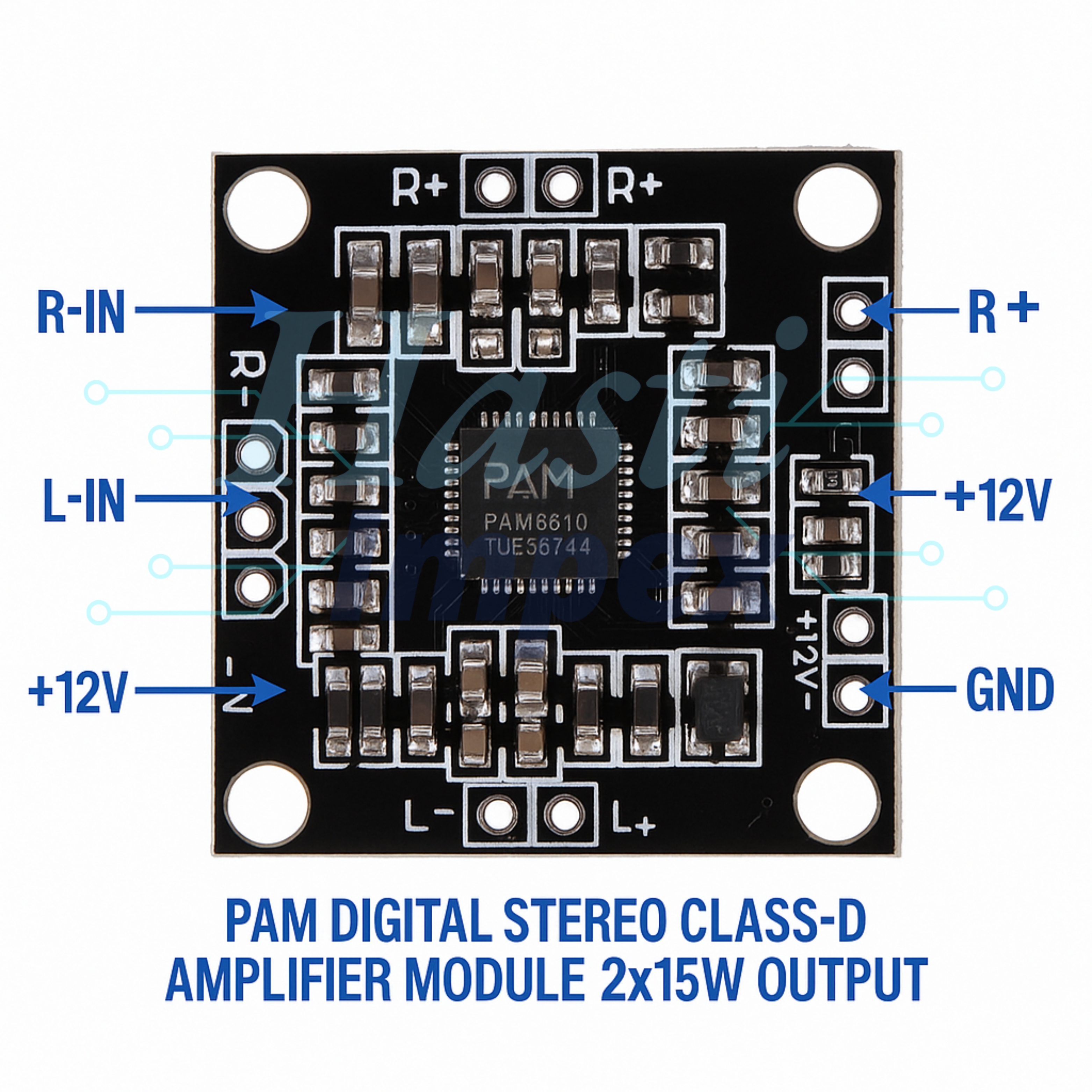

Diagram:
Specifications:
| Amplifier IC | PAM8610 |
| Output Power | 2x15W at 4Ω or 2x10W at 8Ω |
| Voltage Range | 8V to 18V DC |
| Current Consumption | <1A at 12V |
| Signal-to-Noise Ratio (SNR) | >90 dB |
| Frequency Response | 20Hz to 20kHz |
| Efficiency | Up to 90% |
| Operating Temperature Range | -20°C to +85°C |
| Size | 6 cm x 4.5 cm (2.36" x 1.77") |
