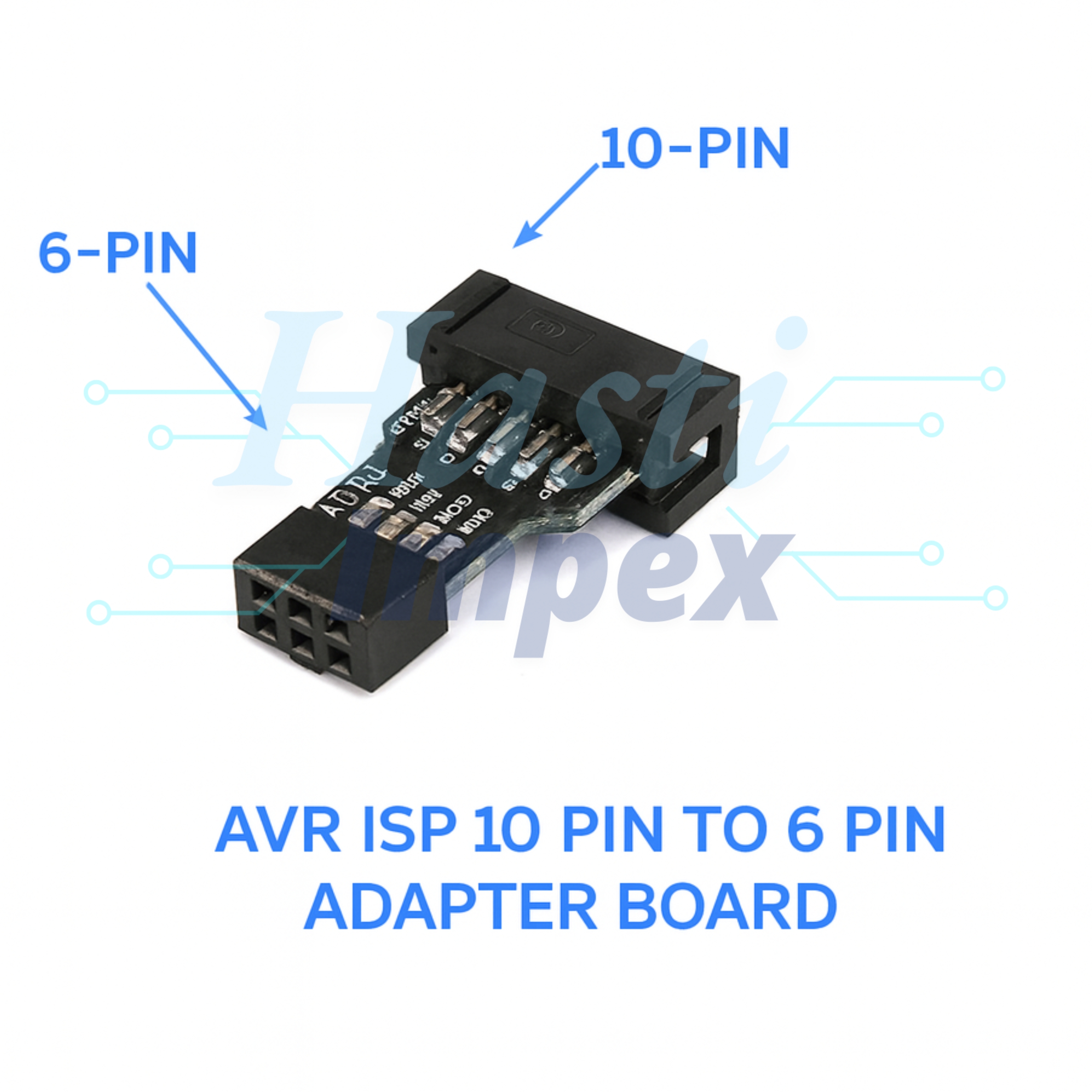

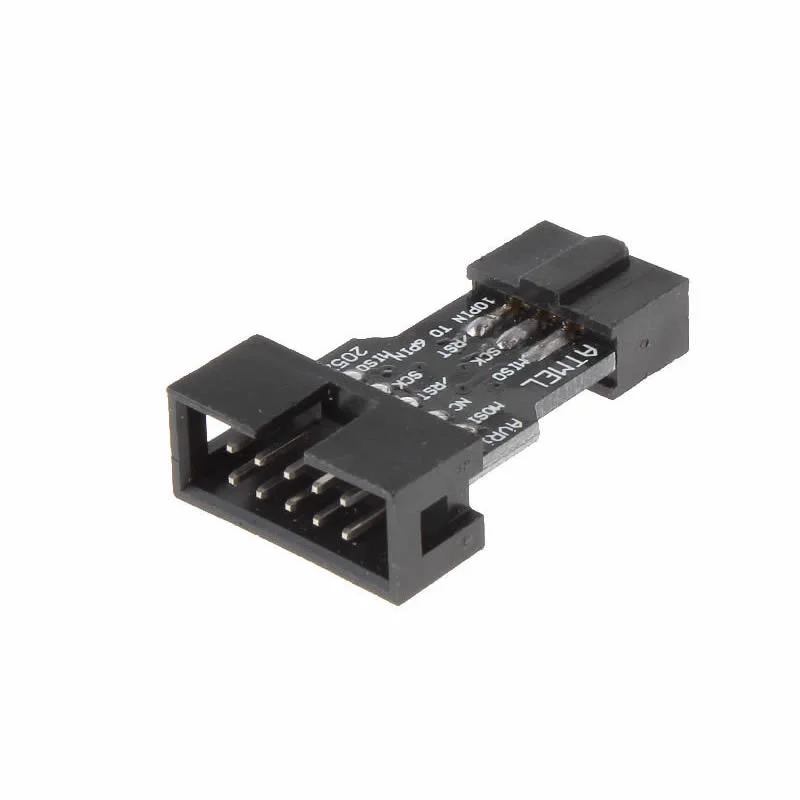

AVR ISP 10 Pin to 6 Pin Adapter Board
Description:
AVR ISP 10 Pin to 6 Pin Adapter Board is a versatile and practical tool designed for programming AVR microcontrollers (such as ATmega and ATtiny series) through In-System Programming (ISP). This adapter board allows you to easily interface with microcontrollers that use a 6-pin ISP connector when the programming tool (such as a programmer or development board) requires a 10-pin ISP connector.
ISP is a method of programming microcontrollers that allows firmware to be written directly onto the device’s flash memory without the need to remove the microcontroller from the circuit. It involves connecting the programmer to the device using a set of pins, which allows for communication and programming. The AVR ISP Adapter Board helps simplify this connection by providing a convenient interface to convert a 10-pin ISP header to the more commonly used 6-pin ISP.
Features:
1. Connector Conversion
2. Pinout Compatibility
3. Versatile Usage
4. Simple and Cost-Effective
5. No Need for Soldering
6. Compact Design
7. Ideal for AVR Development
Diagram:
Specifications:
| Adapter Type | AVR ISP 10 Pin to 6 Pin Adapter |
| Supported Microcontrollers | ATmega |
| Pinout | VCC, GND, MOSI, MISO, SCK, RESET |
| Connection Type | Converts 10-pin ISP header to 6-pin ISP header |
| Compatibility | USBasp, AVRISP mkII |
| Voltage Range | 3.3V or 5V |
| Operating Voltage | 3.3V or 5V |
| Dimensions | 2.5cm x 2.5cm |
