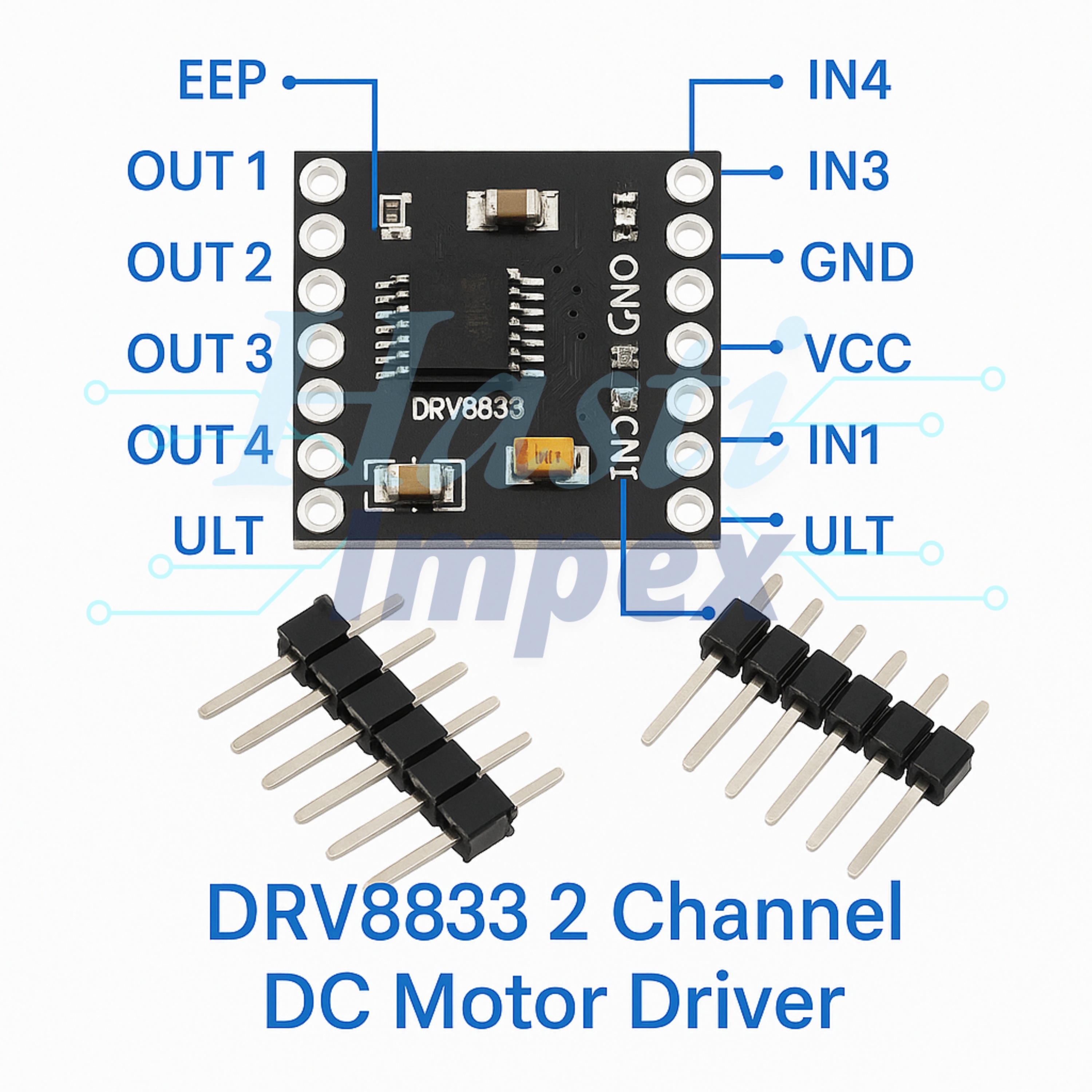

DRV8833 2 Channel DC Motor Driver
Description:
DRV8833 2-Channel DC Motor Driver is an advanced, low-power, dual-channel motor driver designed for driving DC motors, stepper motors, and other inductive loads. Powered by Texas Instruments' DRV8833 IC, this motor driver module provides a simple interface for controlling the direction and speed of DC motors with ease. It's widely used in robotics, automation, mechatronics, and DIY electronics projects where control of motors is required.
With the DRV8833 chip, this module is highly efficient, providing bidirectional motor control along with support for PWM (Pulse Width Modulation) speed control, which allows for smooth and precise motor speed regulation. This makes it an excellent choice for applications requiring fine control, such as robotic drives, mobile robots, RC vehicles, mechanical actuators, and automated systems.
The module is designed for use in 5V systems, and it operates with a wide voltage range, making it versatile for various power sources. The integrated features, such as thermal protection, overcurrent protection, and overvoltage protection, ensure reliable operation and motor protection, which is crucial for long-term durability in your projects.
Features:
1. Dual Motor Channels
2. Bidirectional Motor Control
3. PWM Speed Control
4. Motor Voltage Range
5. Current Protection
6. Thermal and Overvoltage Protection
7. Low Quiescent Current
8. Compact Design
9. Easy to Use
10. Low Power Operation

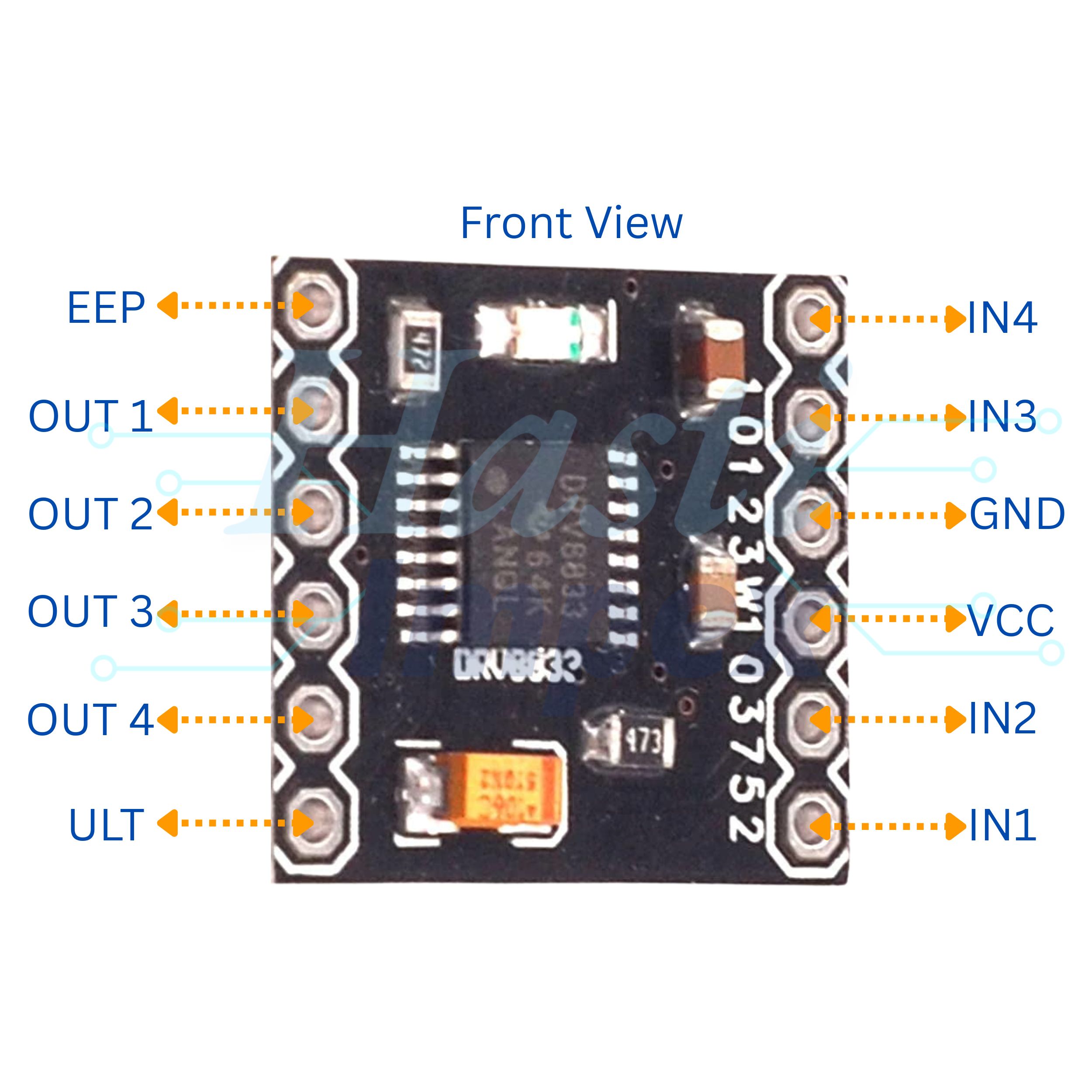

Diagram:
Specifications:
| Motor Channels: | 2 Channels |
| Motor Voltage Range | 0.9V to 10.8V |
| Continuous current | 1.5A |
| Peak current | 2A |
| Logic Voltage Range | 2.5V to 5.5V |
| PWM Frequency | high-frequency PWM |
| Motor supply voltage | 0.9V to 10.8V |
| Logic supply voltage | 2.5V to 5.5V |
| Operating Temperature Range: | -40°C to +125°C |
| Dimension | 25mm x 20mm |
