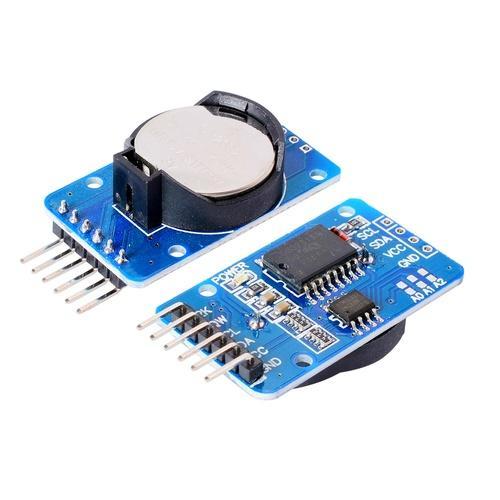

DS3231 Real Time Clock (RTC) Module
Description:
DS3231 Real-Time Clock (RTC) Module is a highly accurate and reliable timekeeping device commonly used in embedded systems, DIY electronics projects, and industrial applications. It is based on the DS3231 IC, which is a high-precision RTC with an integrated temperature-compensated crystal oscillator (TCXO). The module is typically used for maintaining accurate time even when the main power is turned off, making it ideal for projects that require real-time time tracking.
The DS3231 RTC module can keep track of time down to seconds, minutes, hours, day of the week, date, month, and year. It also features an onboard battery (usually a coin cell battery) that ensures the clock keeps running even when the system is powered down or disconnected. The module is widely used in applications such as timekeeping, data logging, alarms, and scheduling tasks in microcontroller-based systems.
Features:
1. High Accuracy and Stability
2. Real-Time Clock Functionality
3. Battery Backup
4. I2C Communication Interface
5. Integrated Alarm Functionality
6. Square Wave Output
7. Wide Operating Voltage Range
8. Easy to Use and Integrate
9. Robust and Reliable

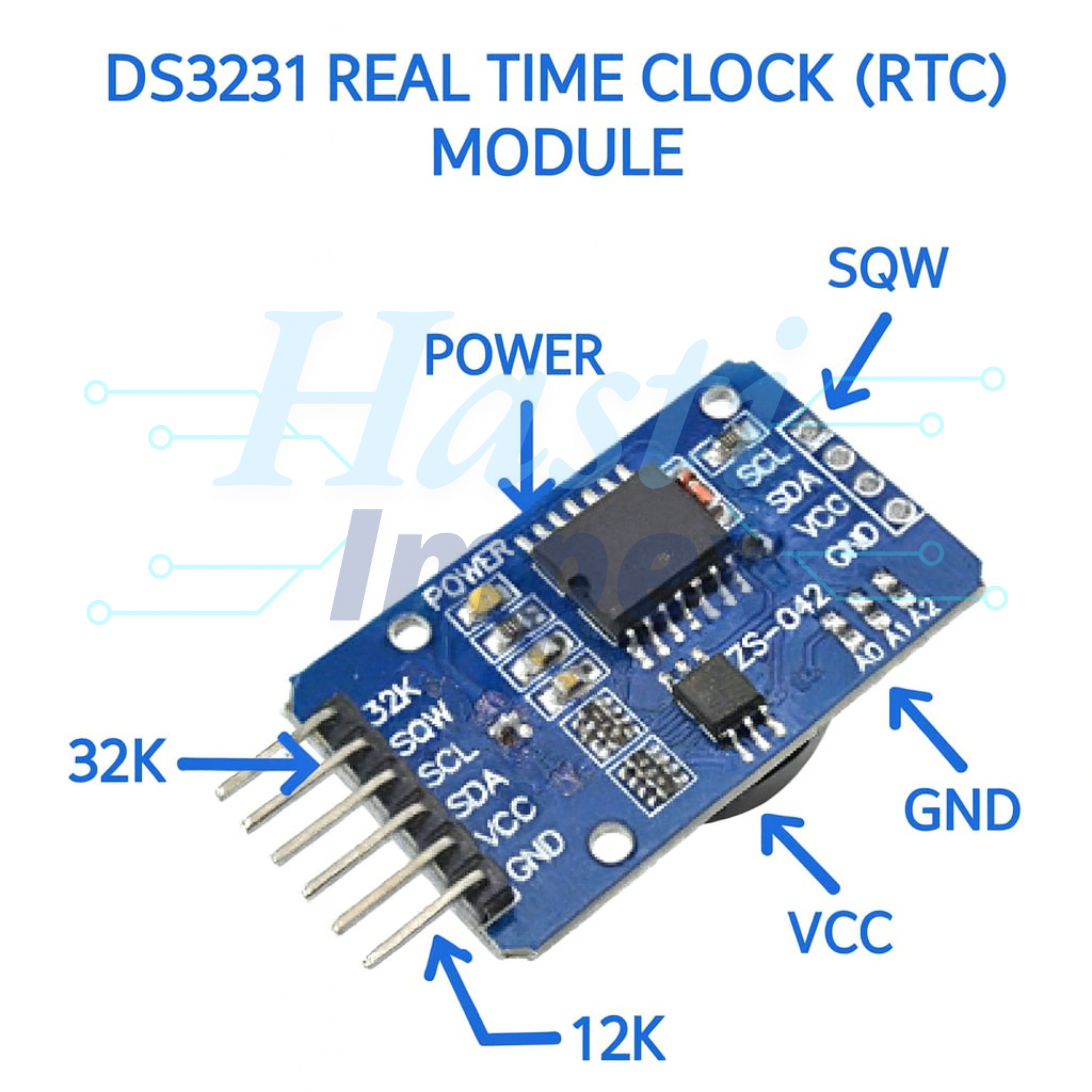

Diagram:
Specifications:
| Power Supply Voltage | 2.3V to 5.5V |
| Accuracy | ±1 minute/year |
| Operating Temperature Range | -40°C to +85°C |
| I2C Address | 0x68 |
| Backup Battery | CR2032 coin cell |
| Alarm Functionality | 2 alarms |
| Square Wave Output Frequencies | 1Hz, 4kHz, 8kHz, 32kHz |
| Communication Protocol | I2C (2-wire) |
| Current Consumption (Active) | ~0.5mA |
| Current Consumption (Standby) | ~0.1µA |
| Size | ~2.5 cm x 1.5 cm |
