XH-M603 HW-632 Charging Control Module With LED Display
Description:
The XH-M603 HW-632 charging control module with LED display is a device commonly used for controlling and monitoring the charging process of batteries or other power sources. Here's how you might use it:
-
Charging Control: The module likely provides control over the charging process, including parameters such as charging current and voltage. You can use the onboard controls or settings to adjust these parameters based on the requirements of your battery or power source.
-
LED Display: The LED display provides real-time feedback on various charging parameters, such as current voltage, charging status, or battery level. This allows you to monitor the charging process conveniently.
-
Safety Features: The module may include safety features to protect against overcharging, over-discharging, or short circuits. These features help ensure the safe and efficient charging of batteries while extending their lifespan.
-
Compatibility: The module may support different types of batteries, such as lithium-ion (Li-ion), lithium-polymer (LiPo), nickel-cadmium (NiCd), or nickel-metal hydride (NiMH). Make sure to configure the module correctly for the type of battery you're charging.
-

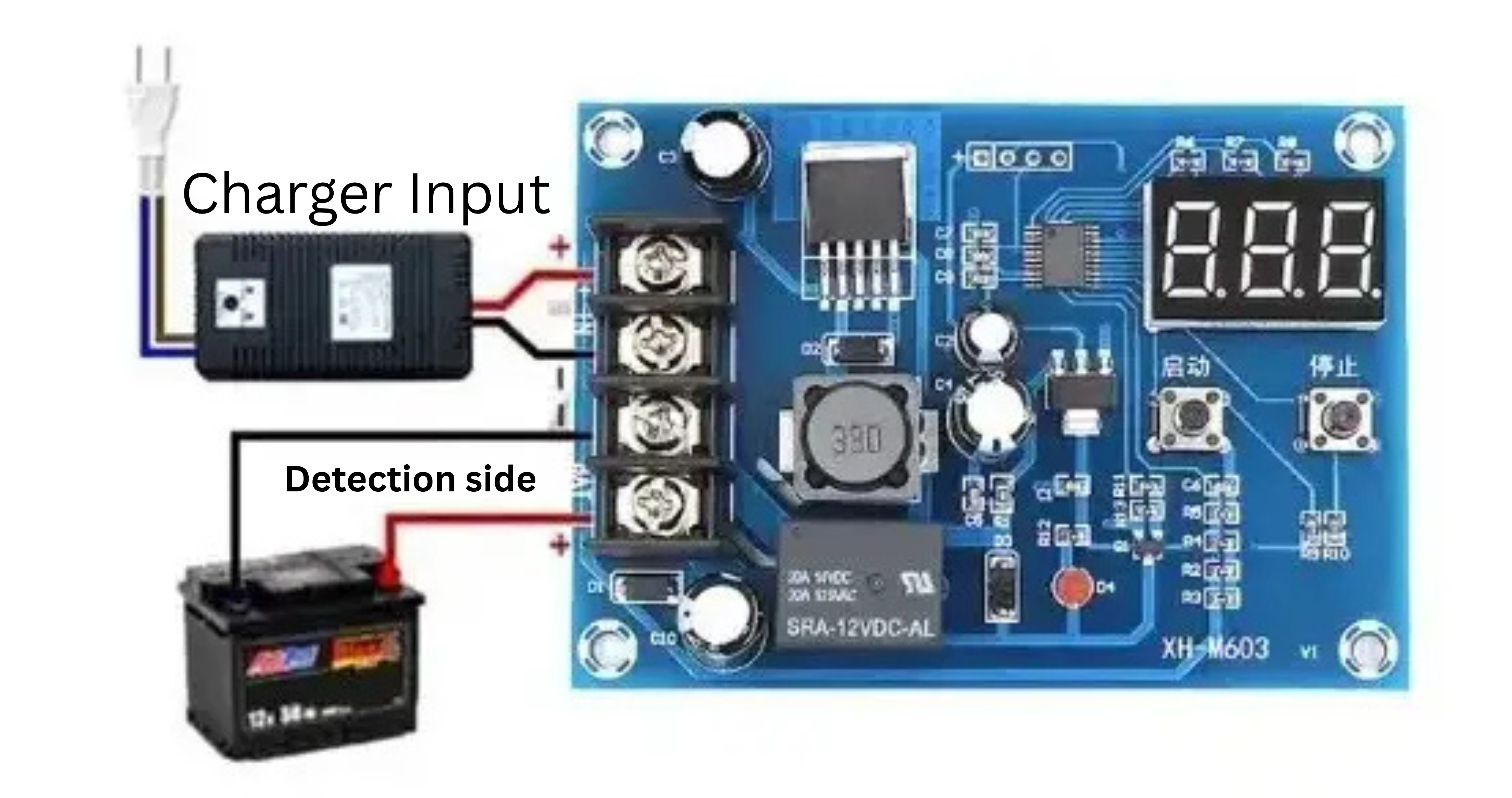

Input Power: The module requires a power source to operate. Typically, it accepts a DC input voltage within a certain range. Ensure that the power source you connect is within the specified voltage range to prevent damage to the module.
-
Output Connection: Connect the battery or power source you want to charge to the output terminals of the module. Make sure to observe proper polarity and connection configurations to avoid damage.
-
Application: This module can be used in various applications, such as charging batteries for portable devices, solar power systems, electric vehicles, or DIY electronics projects where precise charging control and monitoring are required.
-
Integration: Depending on your application, you may need to integrate the module into a larger system or enclosure. Consider factors such as mounting options, cooling requirements, and compatibility with other components in your system.
Before using the XH-M603 HW-632 charging control module, carefully read the user manual or datasheet provided by the manufacturer. This will give you detailed instructions on how to set up and operate the module safely and effectively for your specific application.
