MAX30100 Pulse Oximeter Heart Rate Sensor Module
Description:
MAX30100 Pulse Oximeter Heart Rate Sensor Module is an advanced, integrated sensor designed for health monitoring applications, capable of measuring both blood oxygen saturation (SpO2) and heart rate (HR). It utilizes cutting-edge optical sensing technology to detect changes in the amount of light absorbed by the skin, which in turn is used to calculate these vital health parameters. The sensor is widely used in wearable health devices, medical equipment, fitness trackers, and other healthcare applications where real-time monitoring of these parameters is crucial.
Features:
1. Integrated Pulse Oximeter and Heart Rate Sensor
2. Low Power Consumption
3. I2C Interface
4. Compact Size
5. High Sensitivity and Accuracy
6. Integrated Ambient Light Cancellation
7. Flexible Operating Conditions
8. Easy to Use and Interface

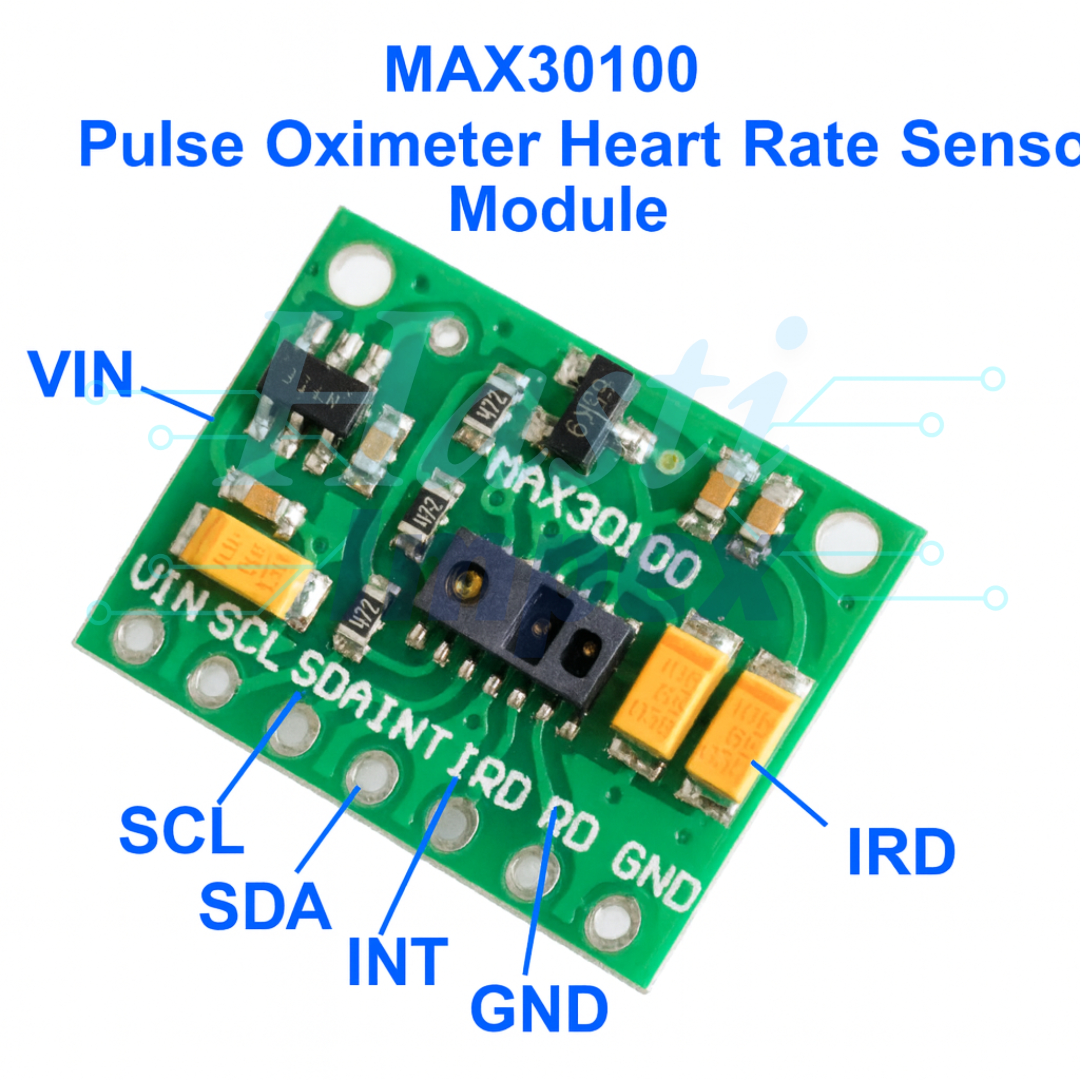

Diagram:
Specifications:
| Interface | I2C |
| Operating Voltage | 1.8V to 3.3V |
| Power Consumption | ~0.75mA |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Communication Protocol | I2C |
