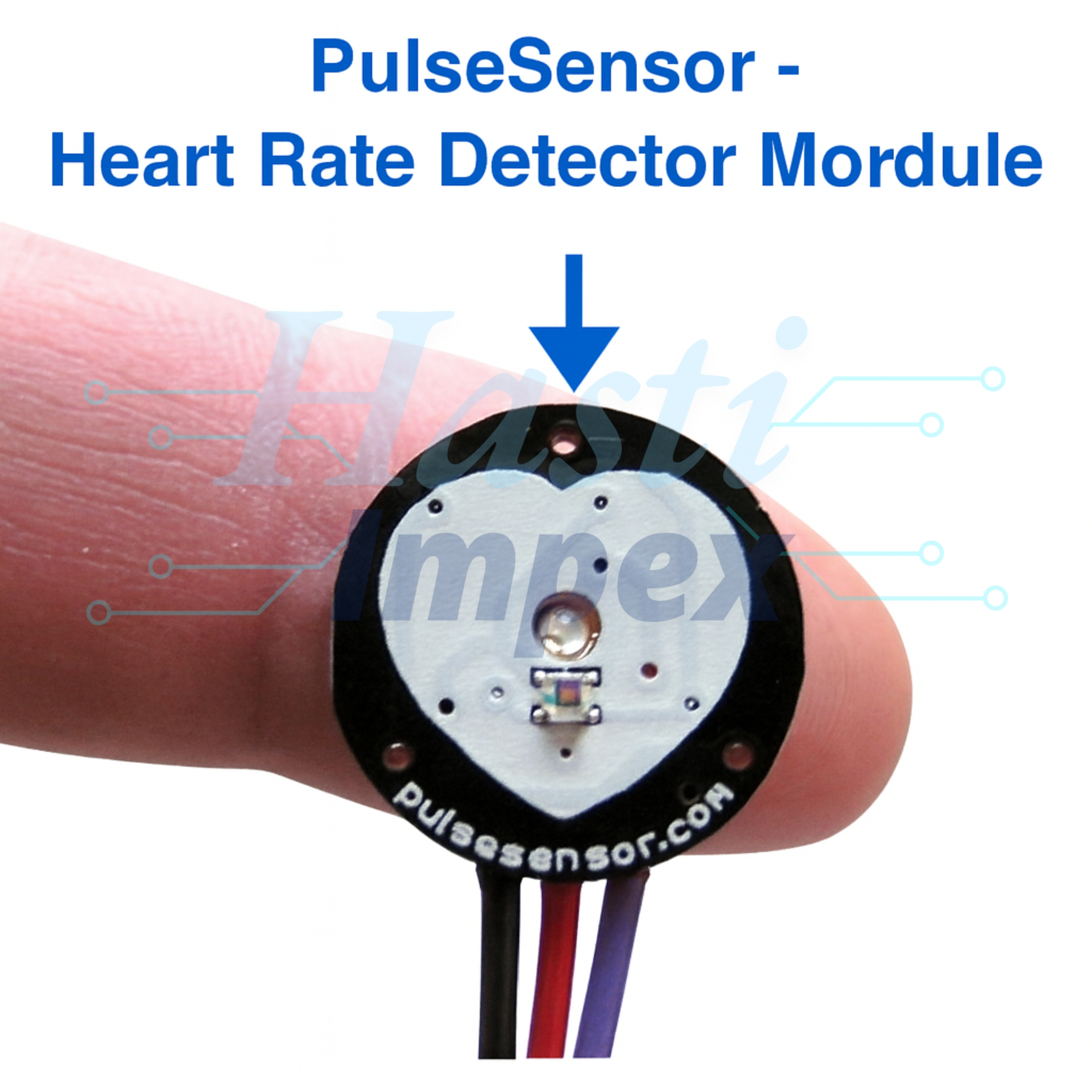

Pulse Sensor - Heart Rate Detector Module
Description:
Pulse Sensor is a compact and easy-to-use heart rate sensor module designed to monitor real-time heartbeats by detecting pulses in blood flow through a fingertip or earlobe. Widely used in wearable health and fitness applications, this sensor translates the physical heartbeat into a readable analog signal for microcontrollers such as Arduino, ESP32, or Raspberry Pi.Module is perfect for DIY biomedical projects, fitness monitoring, biofeedback applications, and interactive installations involving heart rate data.
Features:
1. Real-Time Heartbeat Detection
2. Analog Signal Output
3. Integrated Amplifier and Filter
4. Wearable and Compact Design
5. Plug-and-Play with Arduino
6. Visual Feedback (Optional LED)
Diagram:
Specifications:
| Operating Voltage | 3.3V – 5V DC |
| Output Signal | Analog Voltage (0 – VCC) |
| Sensor Type | Optical PPG sensor |
| Measurement Range | 30–250 BPM |
| Sampling Rate | ~500 Hz |
| Signal Conditioning | Onboard amplifier & bandpass filter |
| Dimensions | ~16mm diameter sensor, small PCB (~20mm) |
| Interface Pins | VCC, GND, Signal (Analog Out) |
