MQ7 - Carbon Monoxide Gas Sensor Module
Description:
The MQ-7 carbon monoxide (CO) gas sensor module is designed to detect the presence of carbon monoxide gas in the air. Carbon monoxide is a toxic gas produced by incomplete combustion of carbon-containing fuels. Here's how to effectively use the MQ-7 sensor:
-
Understanding the Sensor: The MQ-7 sensor operates on the principle of a chemical reaction between carbon monoxide molecules and the sensor's electrodes, leading to a change in electrical conductivity. This change is then measured and interpreted as the presence of carbon monoxide.
-

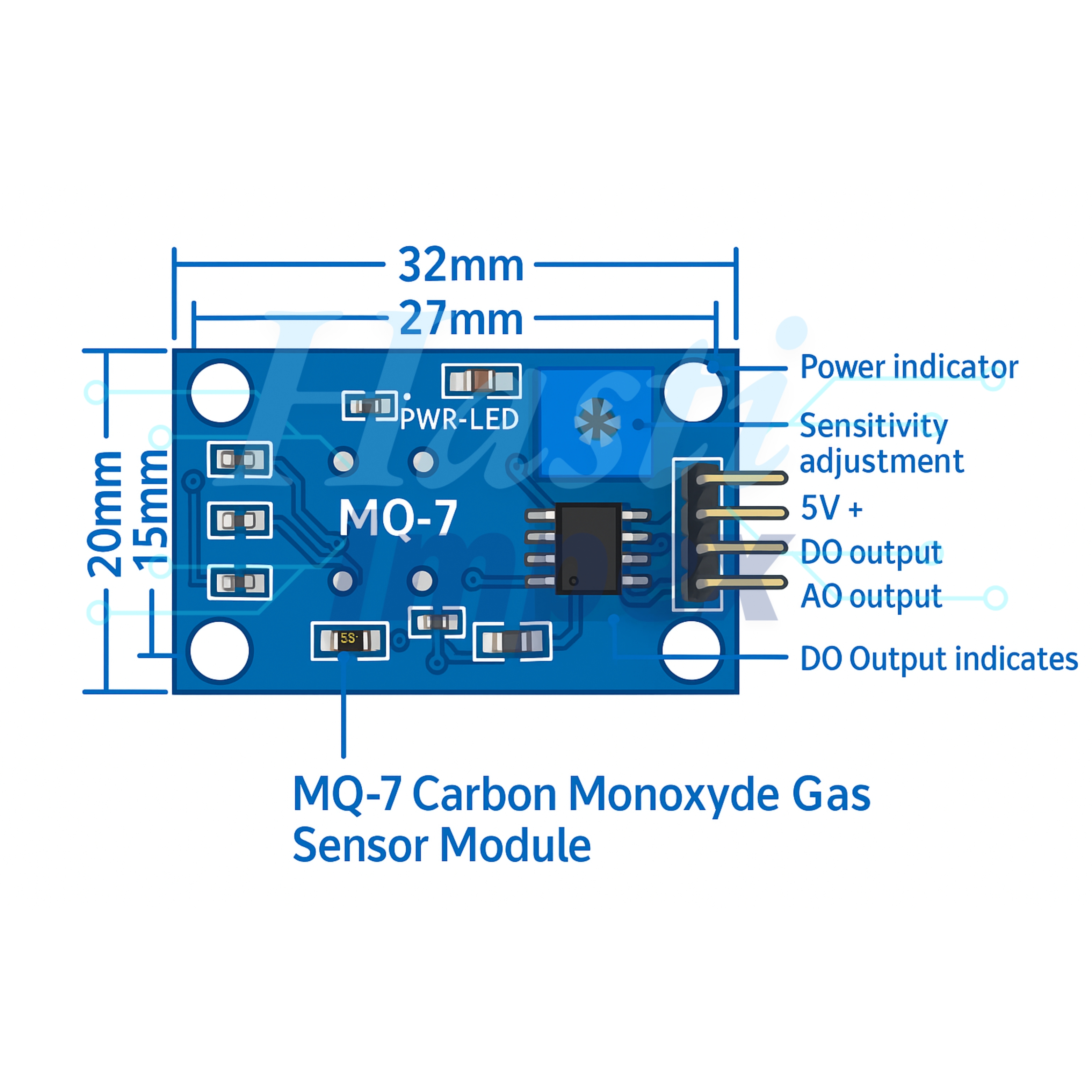

Connections: The MQ-7 sensor typically has four pins: VCC (power supply), GND (ground), AOUT (analog output), and DOUT (digital output). Connect VCC to a suitable power supply (usually 5V), GND to ground, and then either AOUT or DOUT depending on your preferred output type.
-
Calibration: Calibration may be necessary before use. Expose the sensor to clean air for a certain period to establish a baseline reading. Calibration procedures may vary depending on the specific sensor and application, so refer to the manufacturer's instructions.
-
Powering Up: Apply power to the sensor module. Allow a warm-up time (usually a few minutes) for the sensor to stabilize and provide accurate readings.
-
Reading Output: If connected to the AOUT pin, you'll receive an analog voltage output proportional to the concentration of carbon monoxide in the air. If connected to the DOUT pin, you'll receive a digital signal that switches from low to high when the carbon monoxide concentration exceeds a certain threshold.
-
Interpretation: Interpret the sensor output based on your project requirements. You may need to convert the analog voltage to a concentration value using a suitable calibration curve or simply monitor the digital output for threshold crossing.
-
Safety Considerations: Carbon monoxide is a poisonous gas, so handle the sensor with care and avoid exposure to high concentrations. Ensure proper ventilation during testing and avoid using the sensor in potentially hazardous environments without appropriate safety precautions.
-
Integration: Integrate the sensor with a microcontroller (e.g., Arduino, Raspberry Pi) for data processing, display, or further action based on the detected carbon monoxide concentration.
