Description:

The 300W 20A DC-DC Buck Converter Step-down Module with Constant Current functionality is a versatile and powerful device commonly used for converting a higher DC voltage to a lower one while maintaining a constant output current. This type of module is often employed in applications such as LED driving, battery charging, and other scenarios requiring efficient power conversion and regulation.

Key Features:

1. High Power Output:

   • Output Power: Up to 300W
   • Output Current: Up to 20A

2. Input and Output Voltage Range:

   • Input Voltage: Typically ranges from 6V to 40V (varies by model)
   • Output Voltage: Adjustable, typically ranging from 1.2V to 35V

3. Efficiency:

   • High efficiency, often greater than 90%, depending on input/output conditions

4. Constant Current Mode:

   • Suitable for driving high-power LEDs or charging batteries, where a constant current is necessary

5. Protection Features:

   • Over-current protection
   • Over-temperature protection
   • Short-circuit protection

6. Other Features:

   • Adjustable output voltage and current
   • Thermal shutdown
   • Frequency operation around 150kHz for low heat generation

Description and Usage:

Applications:

1. LED Driving:

   • Ensures a steady current supply to LEDs, preventing overcurrent which can damage the LEDs.
   • Suitable for high-power LED arrays and strips.

2. Battery Charging:

   • Can be used to charge various types of batteries by providing a controlled constant current followed by a constant voltage.

3. Power Supply for Electronic Projects:

   • Provides a stable and adjustable power supply for various electronic circuits and development boards.

4. Automotive and Industrial Uses:

   • Suitable for voltage regulation in automotive applications where the input voltage from a car battery can vary significantly.

How to Use:

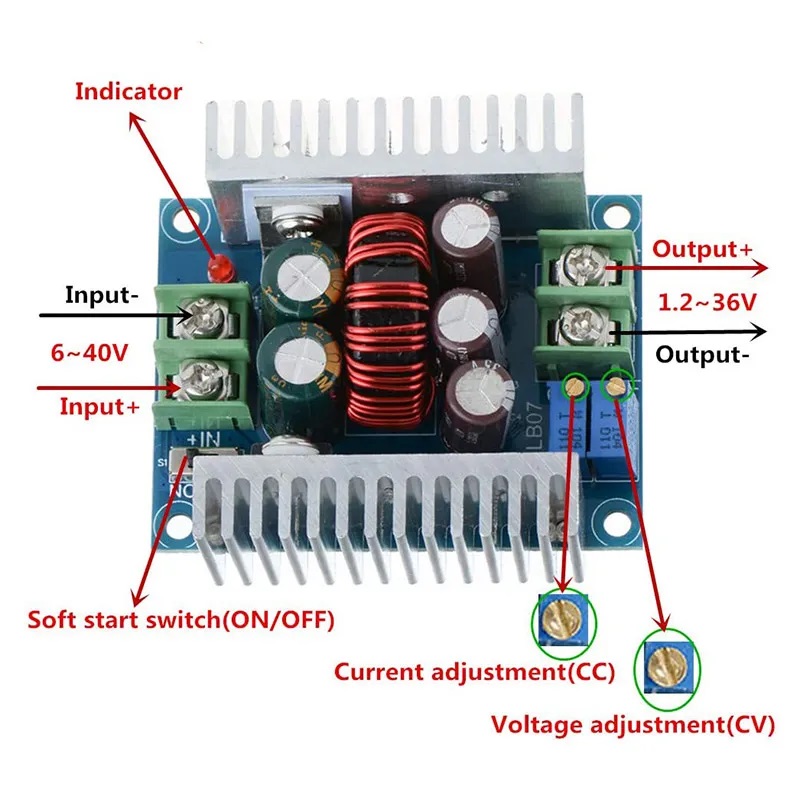

1. Connections:

   • Input: Connect the positive and negative terminals of the power source to the input terminals of the module.
   • Output: Connect the load (e.g., LED, battery, or electronic device) to the output terminals.

2. Adjustments:

   • Voltage Adjustment: Use the potentiometer labeled for voltage (often marked as "V-ADJ") to set the desired output voltage.
   • Current Adjustment: Use the potentiometer labeled for current (often marked as "I-ADJ") to set the desired constant current level.

3. Operation:

   • Power on the module. Use a multimeter to monitor the output voltage and current while making adjustments to ensure they meet the desired levels.
   • For LED driving, ensure the current is set to match the specifications of the LED.
   • For battery charging, set the current according to the battery's charging requirements and then set the maximum voltage to the battery's rated voltage.

4. Mounting and Cooling:

   • Ensure the module is mounted in a well-ventilated area to avoid overheating.
   • An additional heatsink or cooling fan may be required for high power operation to maintain efficiency and longevity.

Example Setup:

• Input: 24V DC from a power supply.
• Output: Adjusted to 12V DC, 5A for an LED strip.

1. Connect the 24V DC power supply to the input terminals.
2. Connect the LED strip to the output terminals.
3. Adjust the voltage potentiometer to read 12V on the output.
4. Adjust the current potentiometer to limit the current to 5A.
5. Ensure the module is not overheating and the LED strip is functioning correctly.

By following these guidelines, the 300W 20A DC-DC Buck Converter Step-down Module can be effectively used in various applications requiring reliable and efficient power conversion and regulation.
