TDA7297 12V Stereo Noiseless Audio Power Amplifier Module with 2 x 15W Output
Description:
TDA7297 is a high-performance, dual-output stereo audio power amplifier IC, commonly used in various audio amplification applications such as home audio systems, TVs, computer speakers, and car audio systems. This 12V stereo audio amplifier module is built around the TDA7297 IC, which provides 2 x 15W of output power while delivering high-quality sound with low distortion and low noise. The module is ideal for use in compact audio devices and small to medium-sized audio systems.
Features:
1. High Power Output (2 x 15W)
2. Low Noise and Distortion
3. Built-in Overload and Thermal Protection
4. 12V Power Supply
5. Compact Design
6 High Efficiency
7. Stereo Sound Output
8. Simple to Use
9. Wide Range of Applications

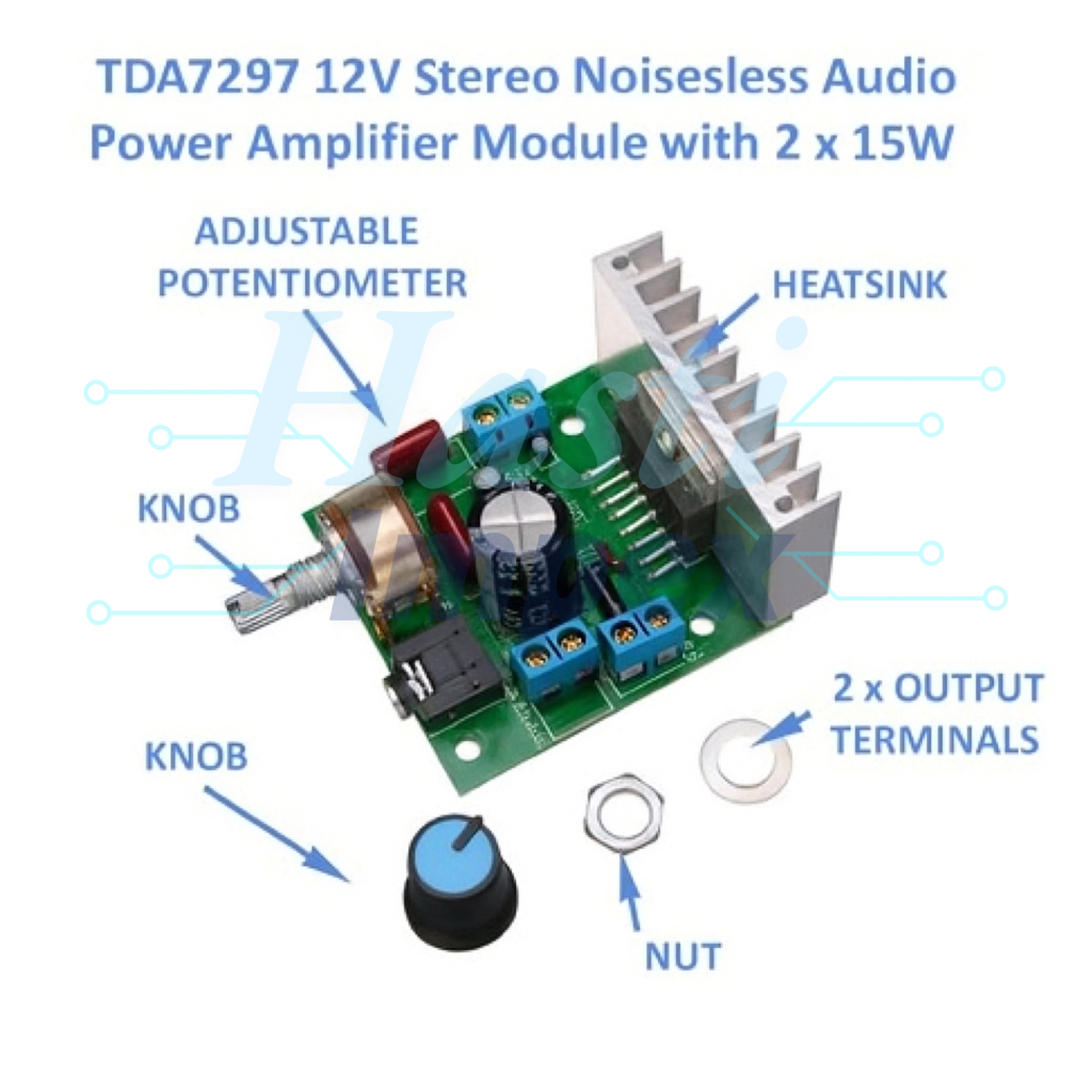

Diagram:
Specifications:
| IC Model | TDA7297 |
| Power Supply | 12V DC |
| Output Power | 2 x 15W |
| Distortion (THD) | < 0.1% |
| Frequency Response | 20 Hz - 20 kHz |
| SNR (Signal-to-Noise Ratio) | > 90 dB |
| Maximum Output Voltage | 10W at 8 Ohms, 12V supply |
| Input Voltage Range | 10V to 18V DC |
| Operating Temperature Range | -40°C to 150°C |
| Dimensions | 50mm x 40mm |
