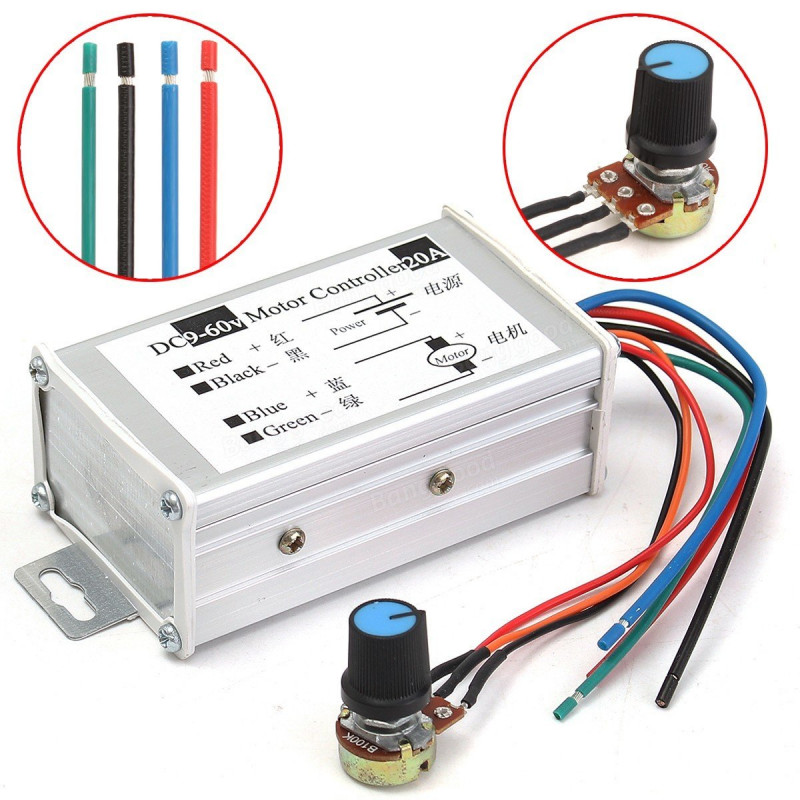

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)
Description:
The 20A PWM DC Motor Speed Regulator Module is a device designed to control the speed of a DC motor. Here's what you need to know about it:
-
PWM (Pulse Width Modulation): PWM is a method used to control the speed of motors by adjusting the average voltage supplied to them. This module likely utilizes PWM to regulate the speed of DC motors.
-
Voltage Compatibility: The module supports a wide range of input voltages, including 9V, 12V, 24V, 36V, 48V, and 60V. This versatility allows it to be used with various DC motors operating at different voltage levels.
-
Current Rating: The module can handle a maximum current of 20A. This current rating indicates the maximum amount of current that can flow through the module without causing damage.
-
Adjustable Speed: Users can adjust the speed of the connected DC motor using a potentiometer or other control mechanism. By changing the duty cycle of the PWM signal, the module varies the motor speed accordingly.
-
Protection Features: Some modules may include protection features such as over-current protection, over-voltage protection, and over-temperature protection to ensure safe operation and prevent damage to the motor or the module itself.
-
Applications: This type of module is commonly used in various applications requiring precise speed control of DC motors, such as robotics, automation systems, and electronic projects.
Overall, the 20A PWM DC Motor Speed Regulator Module provides a convenient and efficient way to control the speed of DC motors across a wide range of voltage levels, making it suitable for diverse projects and applications.
