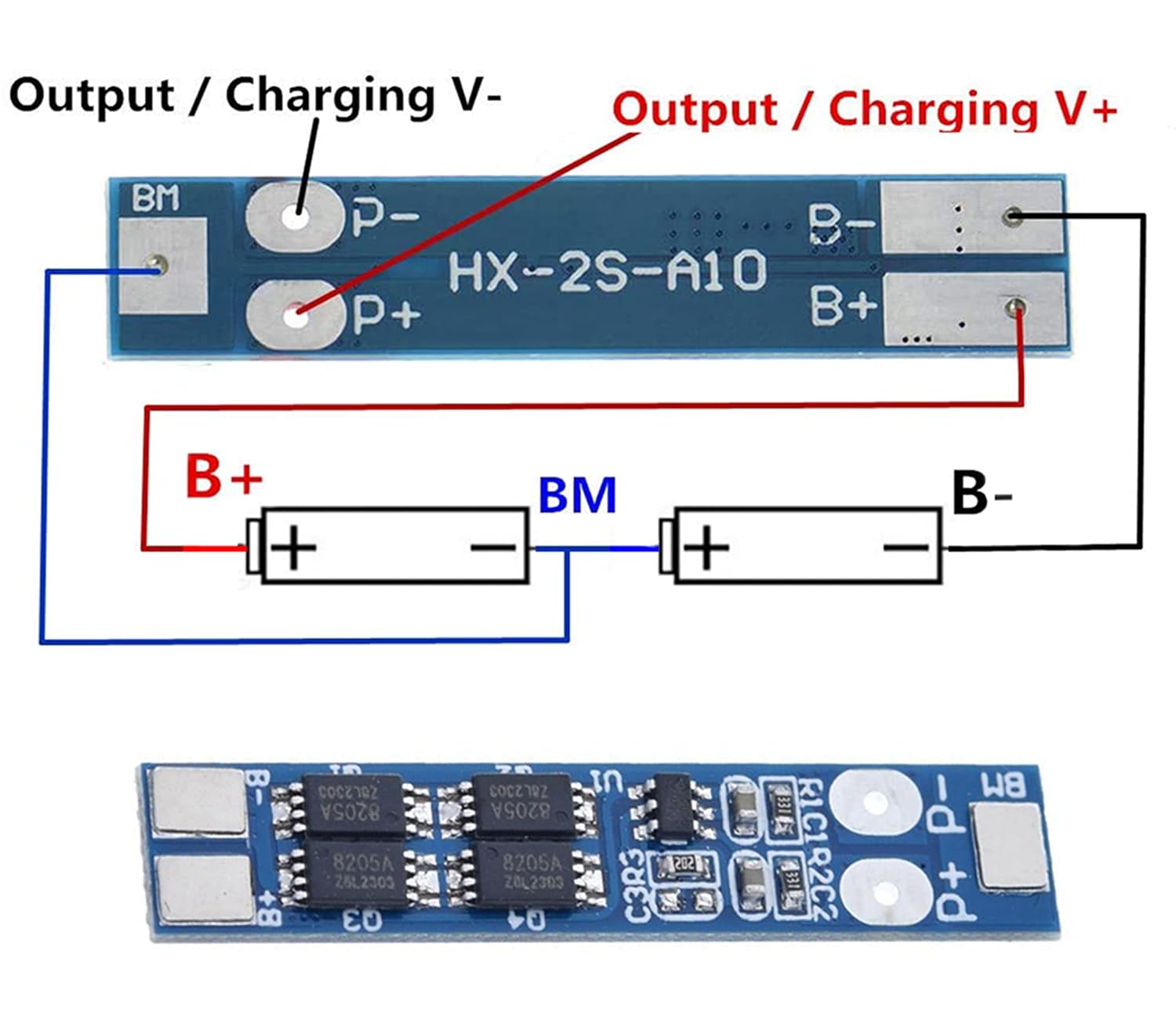

2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board
Description:
The "2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board" is a specialized circuit board designed to ensure the safe and efficient operation of a lithium-ion battery pack consisting of two cells connected in series. Here's a detailed description of its features:
-
2S Configuration: This indicates that the protection board is designed to manage a battery pack consisting of two lithium-ion cells connected in series. Each cell typically has a nominal voltage of 3.7 volts, resulting in a total nominal voltage of 7.4 volts for the battery pack.
-
Battery Protection: The protection board provides various safety mechanisms to protect the battery cells from potentially damaging conditions. This includes protection against overcharging, over-discharging, over-current, and short circuits.
-
Voltage Range: The protection board is designed to operate within a voltage range of 7.4 volts to 8.4 volts, which corresponds to the nominal voltage range of a 2S lithium-ion battery pack. It ensures that the battery pack operates within safe voltage limits to prevent damage to the cells and associated circuitry.
-
Current Rating: The protection board has a maximum continuous discharge current rating of 10 amps (10A). This rating indicates the maximum amount of current that the protection board can safely handle without triggering the over-current protection mechanism.
-
Compatibility: The protection board is specifically designed for use with 18650 lithium-ion battery cells, which are commonly used in various electronic devices and battery packs due to their high energy density and reliability.
-
Compact Size: The protection board typically comes in a compact form factor, making it easy to integrate into battery packs or electronic devices where space is limited.
-
Quality Assurance: While not explicitly mentioned in the description, the protection board is expected to be manufactured to high standards using quality components to ensure reliable performance and safety.
Overall, the 2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board provides essential protection and management functions to ensure the safe and efficient operation of a 2S lithium-ion battery pack, making it suitable for a wide range of applications, including portable electronics, power tools, and elec
