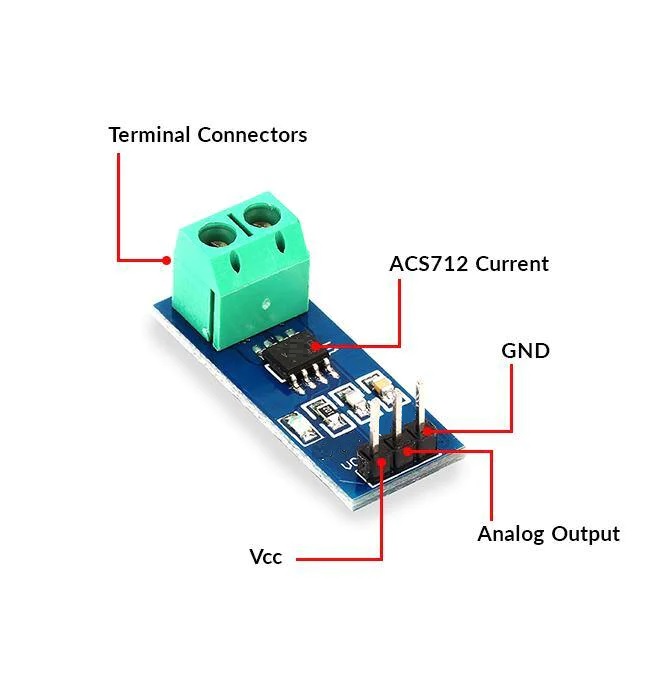

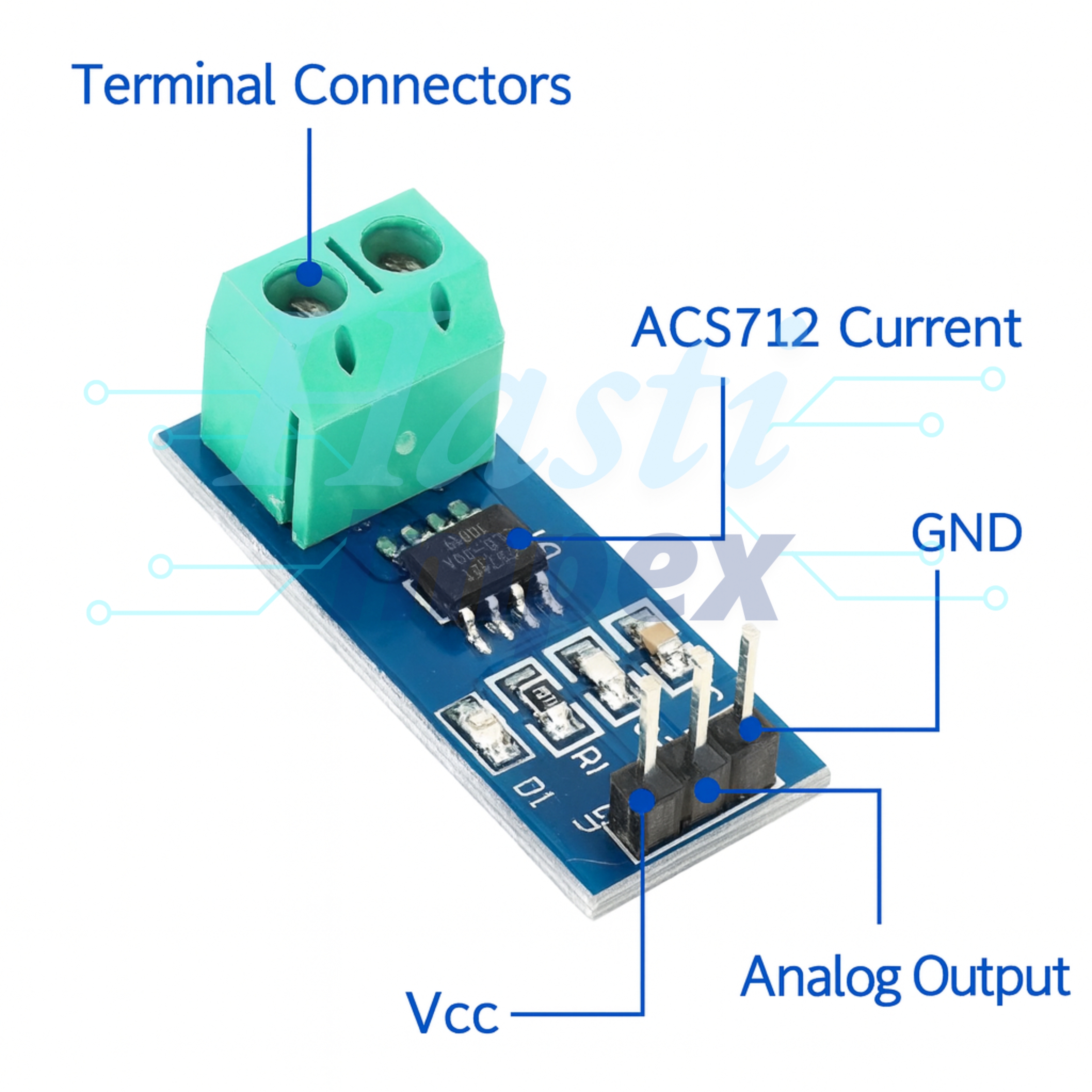

ACS712 - 30A Range Current Sensor Module
Description:
The ACS712 - 30A Range Current Sensor Module is designed to measure currents up to 30 amps. Here's how you can use it:
-
Current Measurement: The primary purpose of the ACS712 - 30A module is to measure current flow through a conductor. This is particularly useful for monitoring power consumption or detecting overcurrent conditions in circuits.
-
Non-Invasive Measurement: Like other ACS712 modules, this one is non-invasive. You can pass the current-carrying wire through the sensor's central hole, enabling measurement without the need to break the circuit.
-
Analog Output: The module provides an analog output voltage that is linearly proportional to the sensed current. This voltage can be read by an analog-to-digital converter (ADC) on a microcontroller like Arduino to determine the current value.
-
Overcurrent Protection: Continuous monitoring of current with the ACS712 - 30A module allows for the implementation of overcurrent protection mechanisms. You can set thresholds and trigger actions (such as shutting down a system) when the current exceeds a certain limit.
-
Power Monitoring: You can use the ACS712 - 30A module to monitor power consumption in various devices or systems. By integrating the measured current over time, you can calculate the total energy consumed.
-
Feedback Control: In systems requiring precise current control, such as motor control applications, the ACS712 - 30A module can provide feedback for closed-loop control algorithms.
To use the ACS712 - 30A Range Current Sensor Module with an Arduino or similar microcontroller:
- Connect the VCC and GND pins of the module to the appropriate power and ground pins on the microcontroller.
- Connect the OUT pin to one of the analog input pins on the microcontroller.
- Pass the current-carrying wire through the sensor's central hole.
- In your Arduino code, read the analog voltage from the sensor and convert it to a current value using calibration factors provided in the datasheet or determined experimentally.
Ensure that you choose the appropriate variant of the ACS712 module based on the maximum current you expect to measure in your application.
