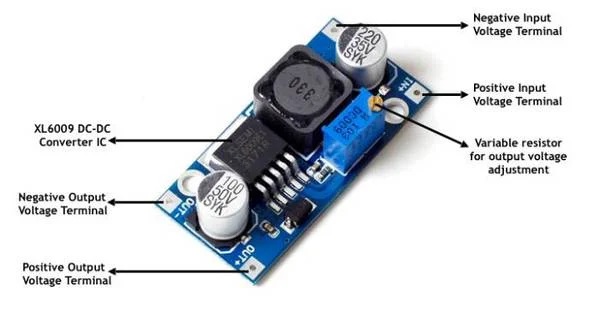

XL6009 DC- DC Adjustable Step UP Boost Power Converter Module
Description:
The XL6009 DC-DC adjustable step-up boost power converter module is a versatile component commonly used in electronics projects to efficiently increase voltage levels from a lower input voltage to a higher output voltage. Here's how it's used and its description:
-
Step-Up Boost Converter: This module is designed to boost (step-up) input voltages to higher output voltages. It's particularly useful in scenarios where the available input voltage is lower than what's required for your application.
-
Adjustable Output Voltage: One of the key features of the XL6009 module is its ability to adjust the output voltage. Using the onboard potentiometer or trimmer resistor, you can set the desired output voltage within a certain range, providing flexibility for various applications.
-
Efficiency: The XL6009 converter is known for its high efficiency, making it suitable for battery-powered applications where maximizing power efficiency is crucial for extending battery life.
-
Input Voltage Range: It typically accepts input voltages ranging from 3V to 32V, although this can vary slightly depending on the specific module. This wide input voltage range makes it compatible with various power sources, including batteries, solar panels, and DC power supplies.
-
Output Voltage Range: The output voltage can be adjusted within a certain range, often from around 5V to 35V, depending on the module and configuration. This versatility allows you to tailor the output voltage to match the requirements of your specific project.
-
Current Limit Protection: Many XL6009 modules come with built-in current limit protection, which helps prevent damage to the module and connected components in case of overcurrent conditions.
-
Applications: The XL6009 module is widely used in electronics projects requiring higher voltage levels than what's available from the power source. Common applications include powering LED strips, driving high-power LEDs, powering motors, charging batteries, and creating adjustable power supplies.
-
Compact Design: Like many other DC-DC converter modules, the XL6009 typically comes in a small form factor, making it easy to integrate into your projects or mount on PCBs.
Overall, the XL6009 DC-DC adjustable step-up boost power converter module is a versatile and efficient solution for boosting voltage levels in electronics projects, offering adjustable output voltage and high efficiency in a compact package.
