Nano 328P Expansion Adapter Breakout Board IO Shield
Description:
Nano 328P Expansion Adapter Breakout Board IO Shield is a compact and powerful accessory designed to expand the functionality of your Arduino Nano (or similar compatible microcontroller boards). This adapter board provides easy access to the GPIO (General Purpose Input/Output) pins of the Arduino Nano, offering a convenient and organized way to connect external components like sensors, motors, and displays to your project. With the use of this breakout board, your projects become easier to wire and troubleshoot, making it a valuable addition for both beginners and advanced users working with the Arduino Nano platform.
Features:
1. Expanded I/O Access
2. Compatibility with Arduino Nano
3. Easy-to-Use Headers
4. Power Supply Rails
5. Breadboard Friendly
6. Compact Size
7. Clear Labeling
8. Durable and High-Quality Construction
9. Supports Breadboard Development
10. GPIO Expansion

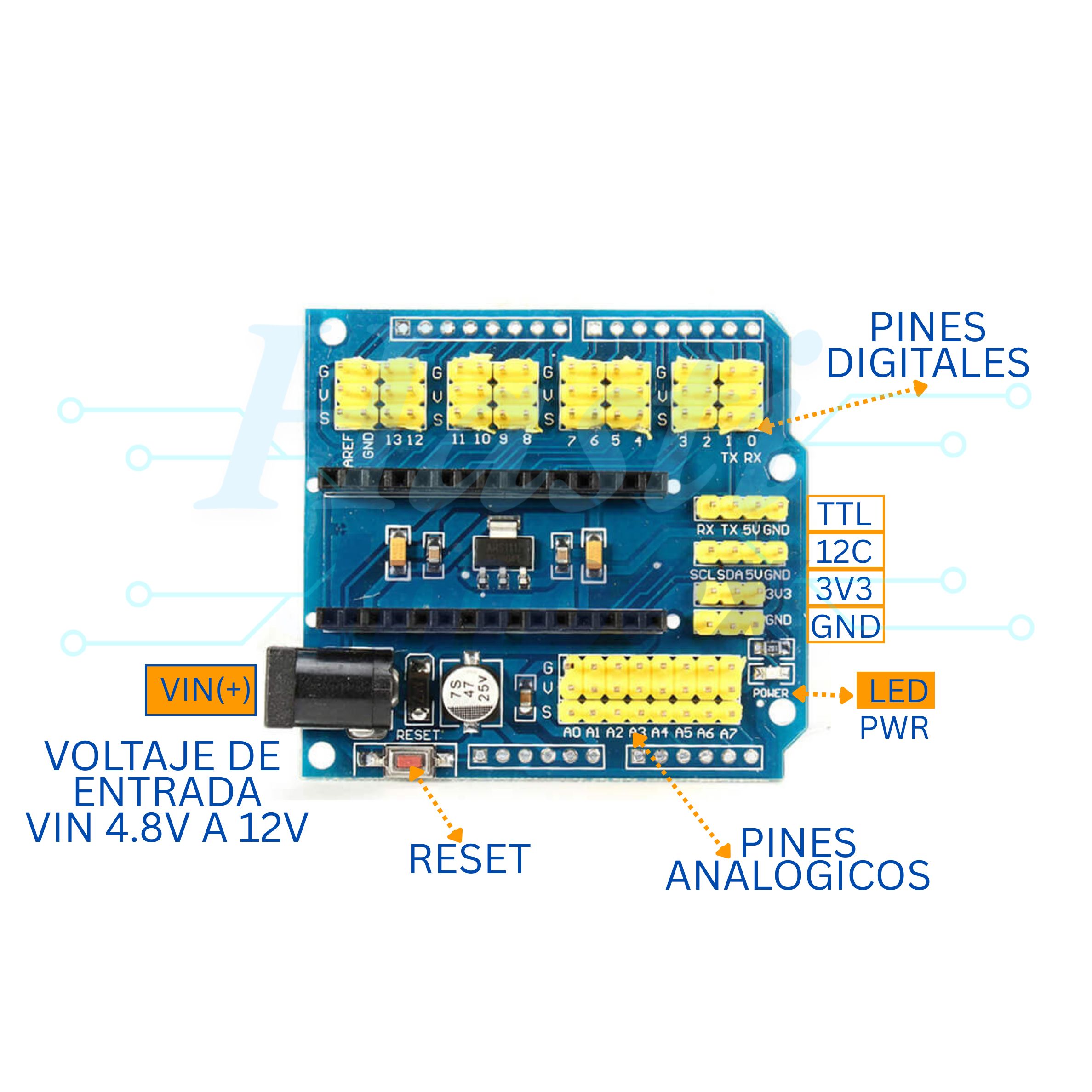

Diagram:
Specifications:
| Microcontroller Compatibility | Arduino Nano 328P |
| Pin Access | I/O pins |
| Power Rails | VCC (5V) |
| Power Supply | Arduino Nano’s |
| Length (mm) | 58 |
| Width (mm) | 54 |
| Height (mm) | 12 |
| Weight (g) | 15 |
| Dimensions | 50mm x 30mm. |
