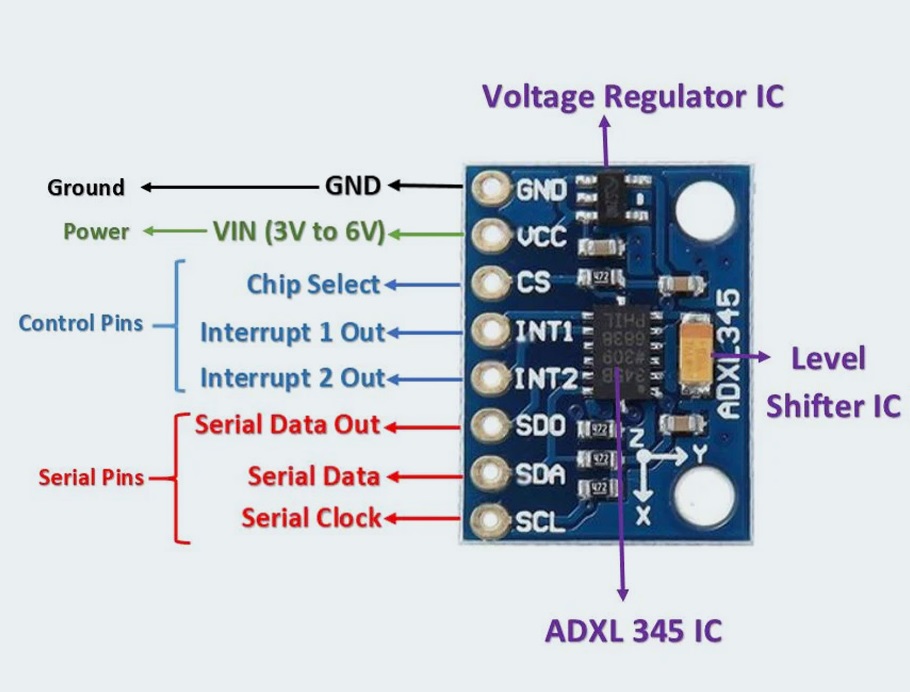

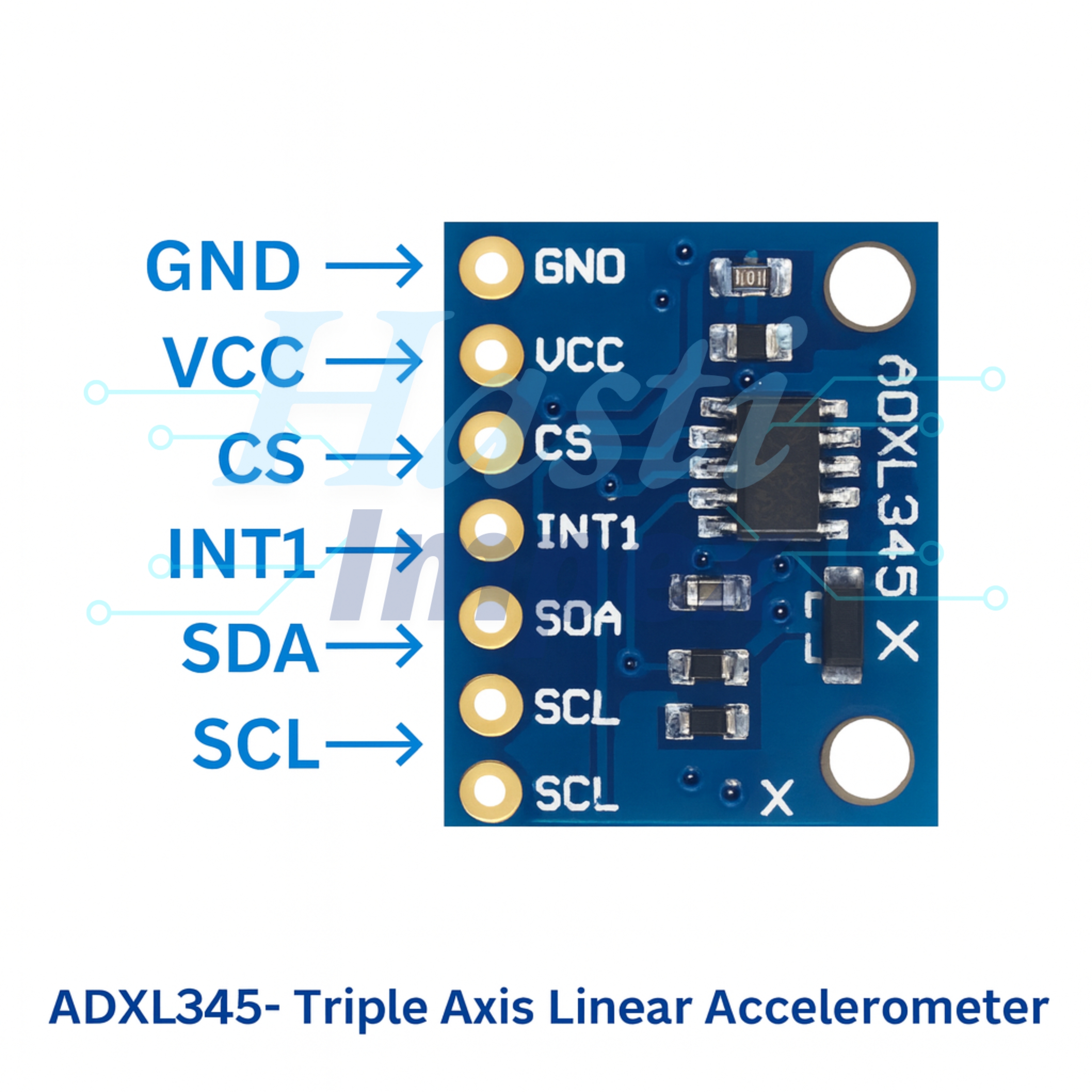

ADXL345 - Triple Axis Linear Accelerometer
Description:
The ADXL345 is a popular triple-axis accelerometer sensor manufactured by Analog Devices. It's widely used in various applications requiring measurement of acceleration along three orthogonal axes. Here's a breakdown of its use and description:
-
Triple Axis Acceleration Sensing: The ADXL345 can measure acceleration along three axes: X, Y, and Z. This makes it suitable for applications where you need to monitor movement or acceleration in three-dimensional space.
-
Digital Output: The sensor communicates with external microcontrollers or other digital devices via standard communication protocols such as I2C or SPI. This digital output simplifies integration into digital systems.
-
High Resolution: The ADXL345 offers high resolution, typically with selectable full-scale range settings, allowing you to adjust the sensitivity of the sensor to suit your specific application requirements.
-
Low Power Consumption: It is designed to operate with low power consumption, making it suitable for battery-powered applications or systems where power efficiency is important.
-
Embedded Features: The sensor often includes embedded features such as built-in motion detection, tap/double-tap detection, and free-fall detection. These features can be utilized to trigger actions or events based on specific motion patterns.
-
Applications: The ADXL345 finds applications in a wide range of fields including motion and tilt sensing, gesture recognition, vibration monitoring, inertial navigation systems, robotics, and wearable devices among others. Its small size, low power consumption, and digital output make it suitable for integration into various electronic systems.
-
Calibration: Depending on the application, calibration might be necessary to ensure accurate measurements. Calibration typically involves compensating for any bias, sensitivity, or offset errors in the sensor output.
-
Data Processing: Once the sensor is interfaced with a microcontroller or other digital device, software algorithms can be implemented to process the raw acceleration data and derive meaningful information such as orientation, velocity, displacement, or gesture recognition.
-
Datasheet and Documentation: It's important to refer to the datasheet and documentation provided by Analog Devices for detailed information on how to properly interface, configure, and use the ADXL345 sensor in your specific application.
Overall, the ADXL345 offers a versatile and reliable solution for measuring acceleration in three dimensions, making it a popular choice for a wide range of motion-sensing applications.
