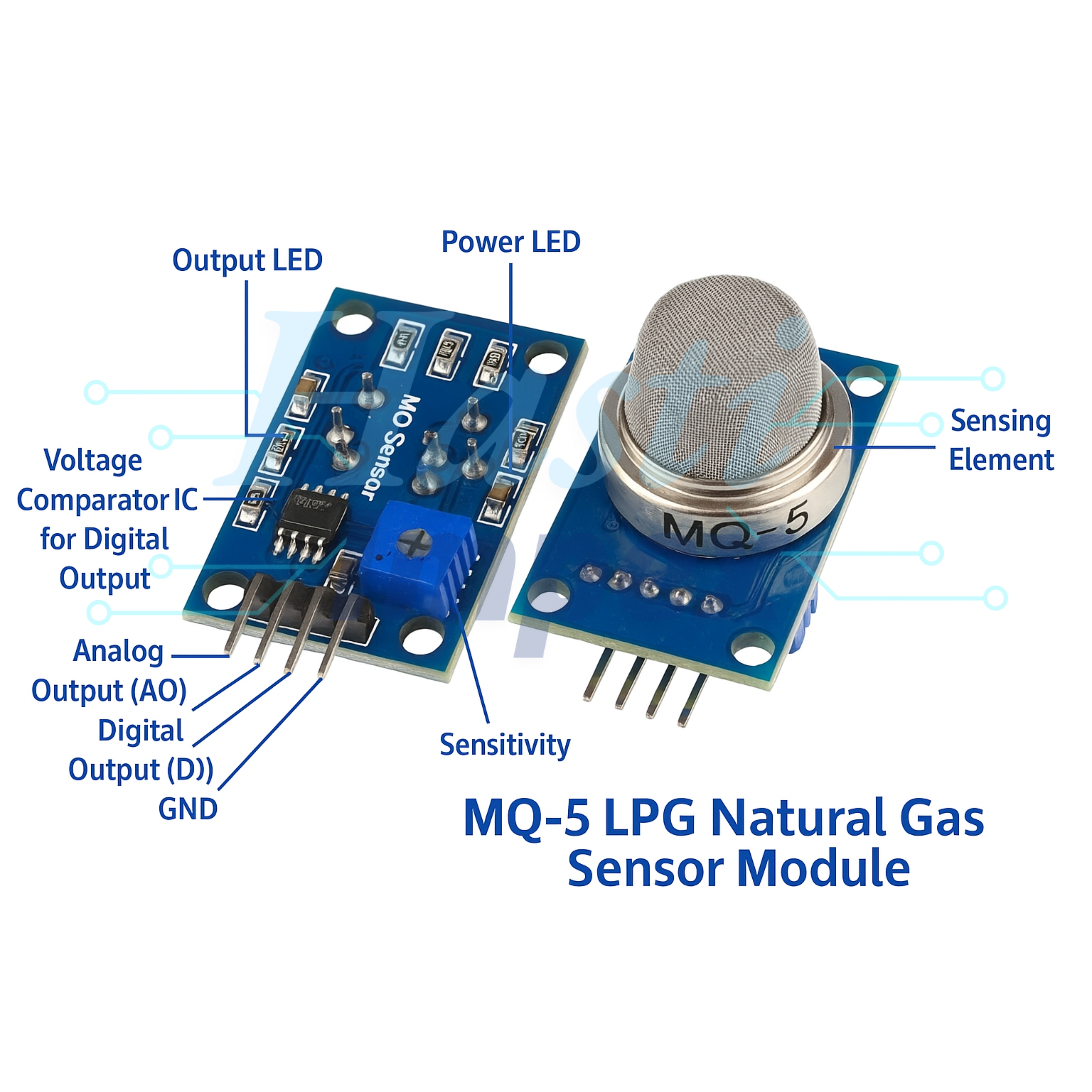

MQ5 LPG Natural Gas Sensor Module
Description:
The MQ-5 LPG (liquefied petroleum gas) and natural gas sensor module is designed to detect the presence of LPG, natural gas, and other combustible gases in the air. Here's a guide on how to use it effectively:
-
Understanding the Sensor: The MQ-5 sensor operates on the principle of a chemical reaction between the gas molecules and the sensor's electrodes, leading to a change in electrical conductivity. This change is then measured and interpreted as the presence of LPG, natural gas, or other combustible gases.
-

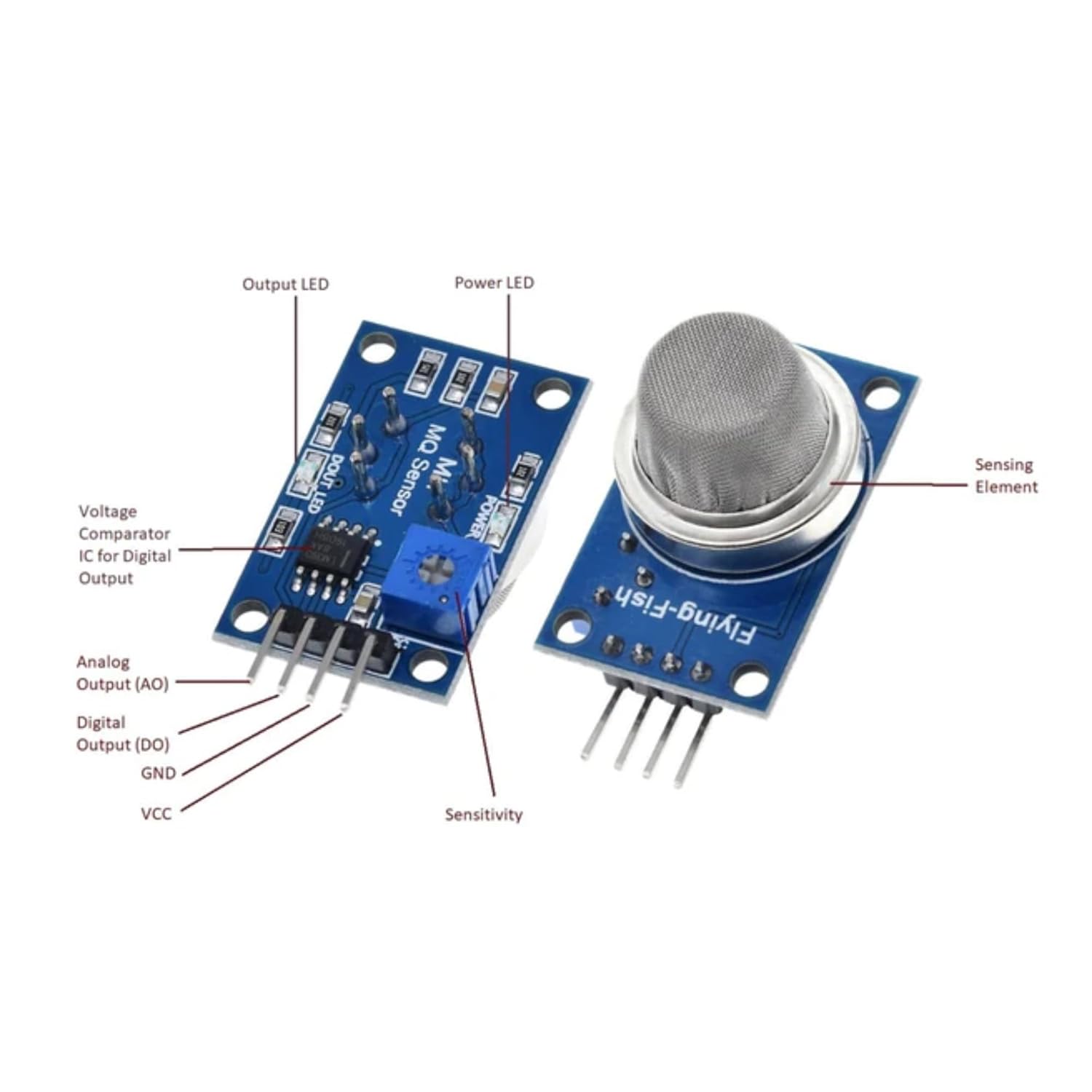

Connections: The MQ-5 sensor typically has four pins: VCC (power supply), GND (ground), AOUT (analog output), and DOUT (digital output). Connect VCC to a suitable power supply (usually 5V), GND to ground, and then either AOUT or DOUT depending on your preferred output type.
-
Calibration: Calibration may be necessary before use. Expose the sensor to clean air for a certain period to establish a baseline reading. Calibration procedures may vary depending on the specific sensor and application, so refer to the manufacturer's instructions.
-
Powering Up: Apply power to the sensor module. Allow a warm-up time (usually a few minutes) for the sensor to stabilize and provide accurate readings.
-
Reading Output: If connected to the AOUT pin, you'll receive an analog voltage output proportional to the concentration of LPG or natural gas in the air. If connected to the DOUT pin, you'll receive a digital signal that switches from low to high when the gas concentration exceeds a certain threshold.
-
Interpretation: Interpret the sensor output based on your project requirements. You may need to convert the analog voltage to a concentration value using a suitable calibration curve or simply monitor the digital output for threshold crossing.
-
Safety Considerations: MQ-5 sensors are sensitive to various combustible gases, including LPG and natural gas. Ensure proper ventilation and avoid exposure to potentially hazardous concentrations during testing.
-
Integration: Integrate the sensor with a microcontroller (e.g., Arduino, Raspberry Pi) for data processing, display, or further action based on the detected gas concentration.
