HB100 Microwave Doppler Radar Wireless Motion Sensor Module
Description:
HB100 Microwave Doppler Radar Wireless Motion Sensor Module is a highly sensitive and precise motion detection device that uses microwave Doppler radar technology to detect movement in its vicinity. Unlike traditional motion sensors, such as infrared or ultrasonic, the HB100 employs radar waves to detect motion, making it more robust, less susceptible to environmental interference, and capable of detecting movement through non-metallic materials. This feature makes it especially valuable in applications where reliability and precision are critical.
Features:
1. Microwave Doppler Radar Technology
2. Wide Detection Range
3. Highly Sensitive
4. Wireless Communication
5. Low Power Consumption
6. Analog and Digital Outputs
7. Compact Design
8. Stable and Reliable Operation

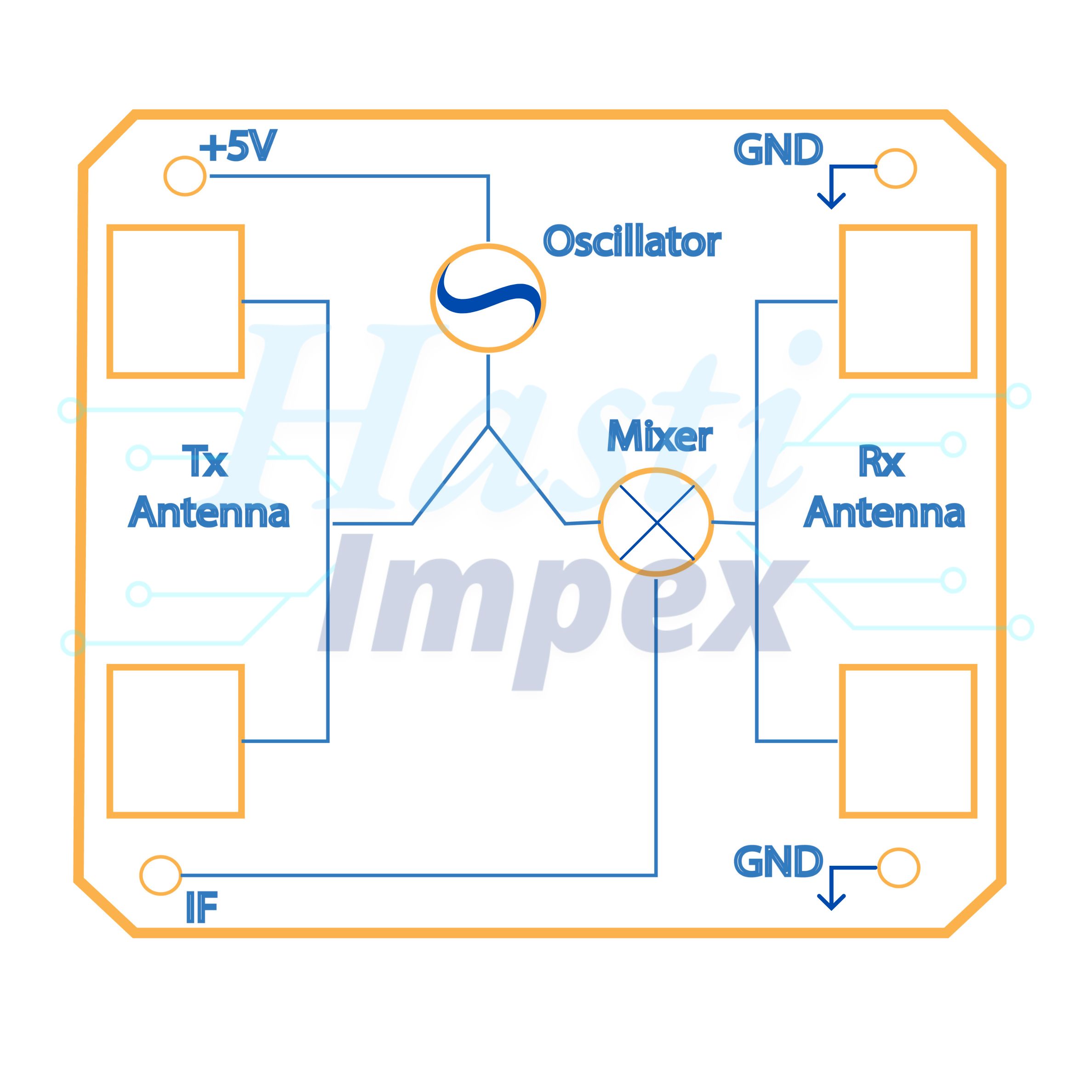

Diagram:
Specifications:
| Operating Voltage | 5V DC |
| Frequency | 10.525 GHz |
| Detection Range | 20 meters |
| Detection Angle | 70° - 90° |
| Power Consumption | 20-30mA |
| Response Time | Milliseconds to seconds |
| Operating Temperature | -20°C to +70°C |
| Size: | 40mm x 30mm x 15mm |
