LM2596HVS DC-DC Buck Converter 4.5-50V To 3-40V Adjustable Step Down Power Module
Description:
The LM2596HVS is a high-voltage step-down DC-DC buck converter module capable of converting input voltages ranging from 4.5V to 50V into adjustable output voltages from 3V to 40V. Here's a guide on how to use the LM2596HVS DC-DC buck converter module:
-
Understanding the LM2596HVS: The LM2596HVS is based on the LM2596 integrated circuit, which is a highly efficient step-down voltage regulator. The "HVS" version extends the input voltage range compared to the standard LM2596 module.
-

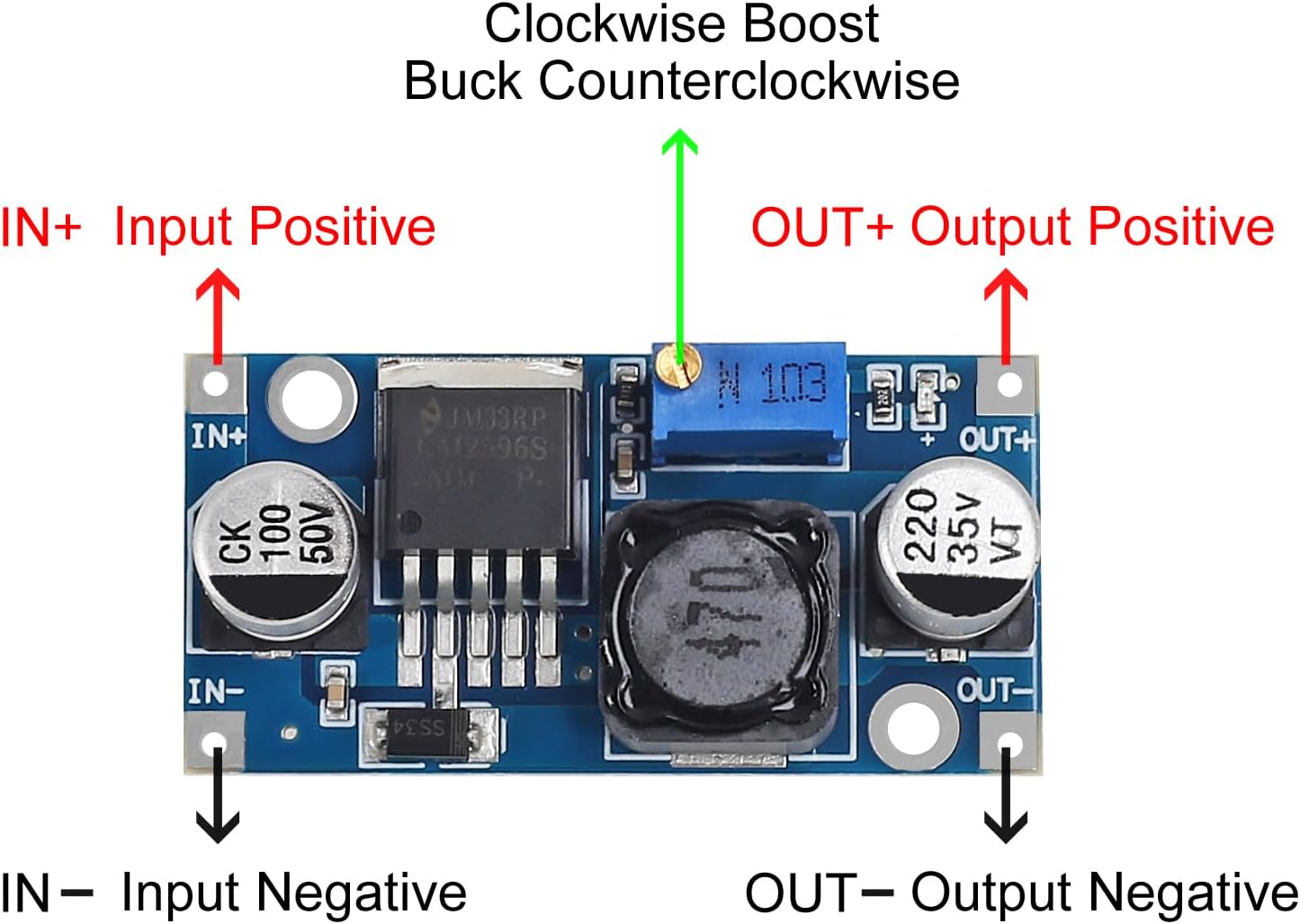

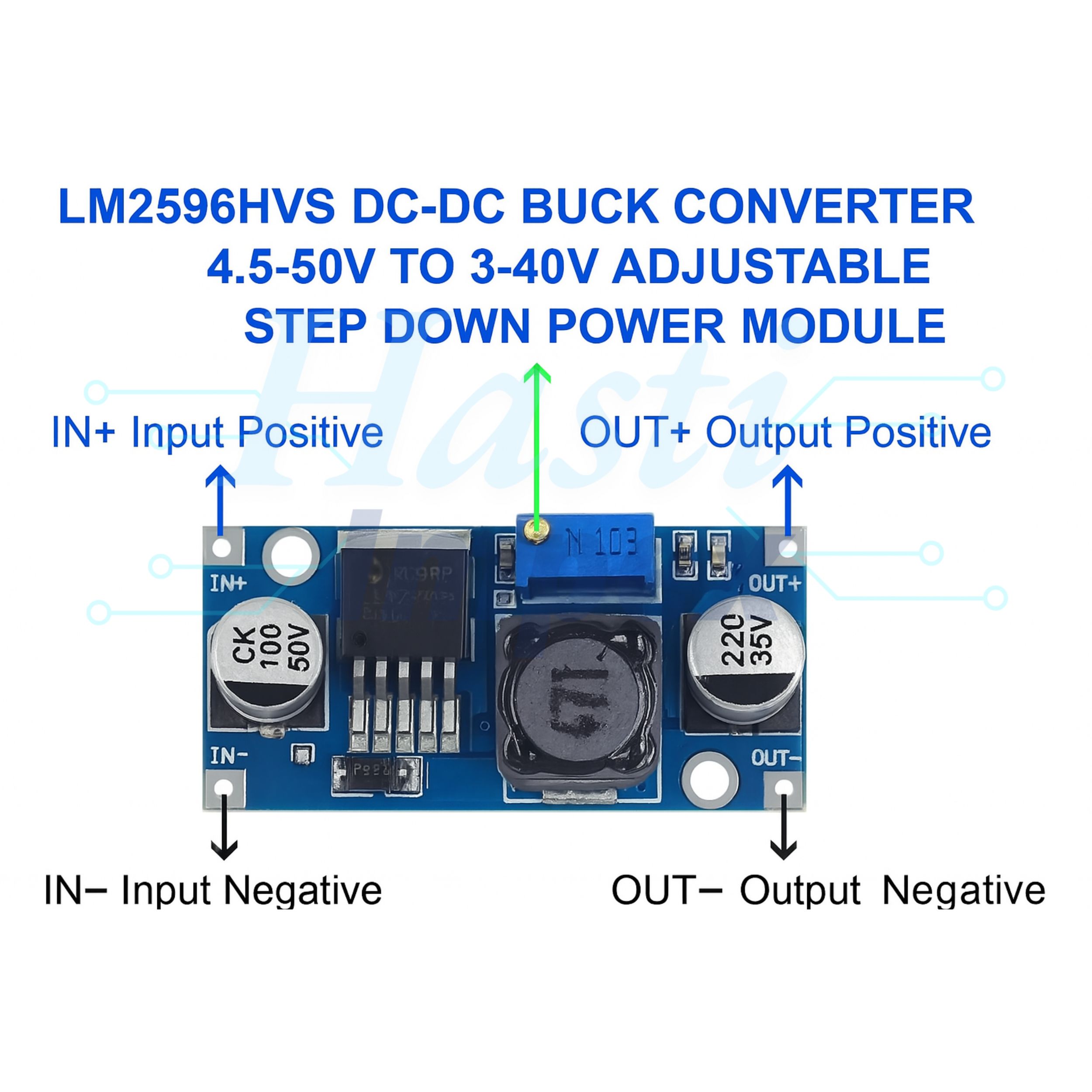

Connections: The LM2596HVS module typically has input (VIN+ and VIN-), output (VOUT+ and VOUT-), and adjustment (ADJ) pins. Connect the positive terminal of your input voltage source (within the specified range of 4.5V to 50V) to VIN+ and the negative terminal to VIN-. Similarly, connect your load (e.g., a circuit or device requiring a lower voltage) to VOUT+ and VOUT-. The ADJ pin is used to adjust the output voltage.
-
Output Voltage Adjustment: Adjust the output voltage of the LM2596HVS module to your desired level using the onboard potentiometer connected to the ADJ pin. Turning the potentiometer clockwise increases the output voltage, while turning it counterclockwise decreases the output voltage.
-
Input and Output Capacitors: It's recommended to add input and output capacitors to stabilize the module's operation and reduce noise. A typical configuration includes a ceramic capacitor (e.g., 10µF to 100µF) connected between VIN+ and VIN- and an electrolytic capacitor (e.g., 100µF to 1000µF) connected between VOUT+ and VOUT-. Refer to the LM2596HVS datasheet for specific capacitor recommendations.
-
Load: Connect your load (such as a microcontroller, sensor, or other electronic device) to the output terminals (VOUT+ and VOUT-) of the LM2596HVS module. Ensure that the load current does not exceed the maximum current rating of the module.
-
Heat Dissipation: Depending on the input voltage, output voltage, and load current, the LM2596HVS module may generate some heat during operation. Adequate heat dissipation measures, such as providing sufficient ventilation or adding a heat sink to the module, may be necessary to ensure reliable performance, especially for higher power applications.
-
Protection Features: Some LM2596HVS modules may include built-in protection features such as over-current protection and thermal shutdown. Check the module specifications to understand its protection capabilities and limitations.
-
Testing and Optimization: Once the connections are made, power up the LM2596HVS module and verify that the output voltage meets your requirements. Monitor the module's temperature and performance under different load conditions to ensure stable operation.
By following these steps and referring to the LM2596HVS datasheet, you can effectively use the LM2596HVS DC-DC buck converter module to step down high voltages to lower voltages for your electronic projects.
