PL2303 - PL2303HX USB to TTL Serial UART Converter Module
Description:
PL2303HX USB to TTL Serial UART Converter Module is a small and highly useful device that allows you to easily interface a microcontroller or embedded system with a computer via USB. Based on the PL2303HX chip, which is a widely used USB to TTL serial adapter, this module provides a simple and reliable method for converting USB signals to serial UART signals (Universal Asynchronous Receiver/Transmitter).
This module is commonly used in projects that involve Arduino, ESP32, Raspberry Pi, and other microcontroller platforms where there is a need to establish a USB-based serial communication interface. Whether for programming, data exchange, or debugging, the PL2303HX module provides a seamless connection between USB devices and serial systems. The PL2303HX USB to TTL converter is highly valued for its compact design, ease of use, and wide compatibility with different devices.
Features:
1. USB to TTL Conversion
2. Plug-and-Play
3. High-Speed Data Transfer
4. Voltage Compatibility
5. Serial Communication
6. Compact and Easy to Use
7. Built-in LED Indicators
8. Wide Compatibility
9. Low Power Consumption
10. Driver Support

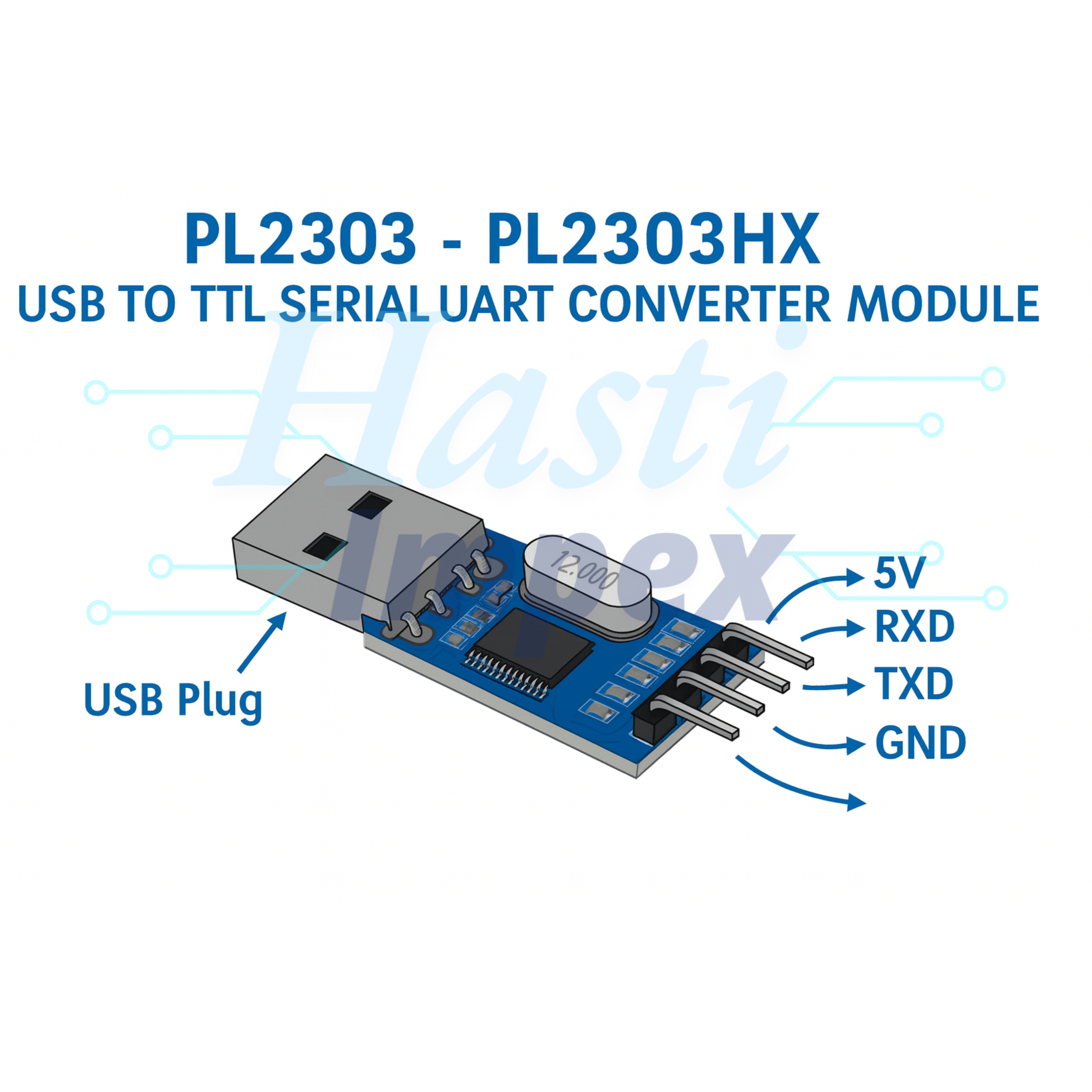

Diagram:
Specifications:
| Chipset | PL2303HX |
| Input Voltage | 5V |
| Logic Voltage (TTL) | 3.3V or 5V |
| Baud Rate | 300 bps to 1 Mbps |
| Data Bits | 7 or 8 data bits |
| Stop Bits | 1 or 2 stop bits |
| Flow Control | XON/XOFF |
| Pins (TTL) | TX (Transmit), RX (Receive), VCC (Power), GND (Ground) |
| Operating Temperature | -40°C to 85°C |
| LED Indicators | Power LED, TX/RX LEDs |
| Cable Type | USB Type-A to Mini USB or Micro USB |
| Dimensions | 45mm x 20mm |
| Weight | 5-10g |
