MB102 Breadboard Power Supply Module 3.3V/5V
Description:
MB102 Breadboard Power Supply Module 3.3V/5V is a versatile and widely used power supply module designed to provide a stable voltage to electronic components during prototyping, especially for breadboard-based projects. This module is popular among hobbyists, engineers, and developers due to its ease of use and efficient power delivery. It typically works with a 5V or 3.3V output, which makes it suitable for various microcontrollers, sensors, and other digital circuits.
Features:
1. Input Voltage
2. Output Voltage
3. Output Current
4. Onboard Voltage Regulators
5. Pinout and Connections
6. Compact and Lightweight
7. Switchable Voltage Output
8. Indicator LEDs
9. Safety Features
10. Application Areas
11. Installation
12. Price and Availability

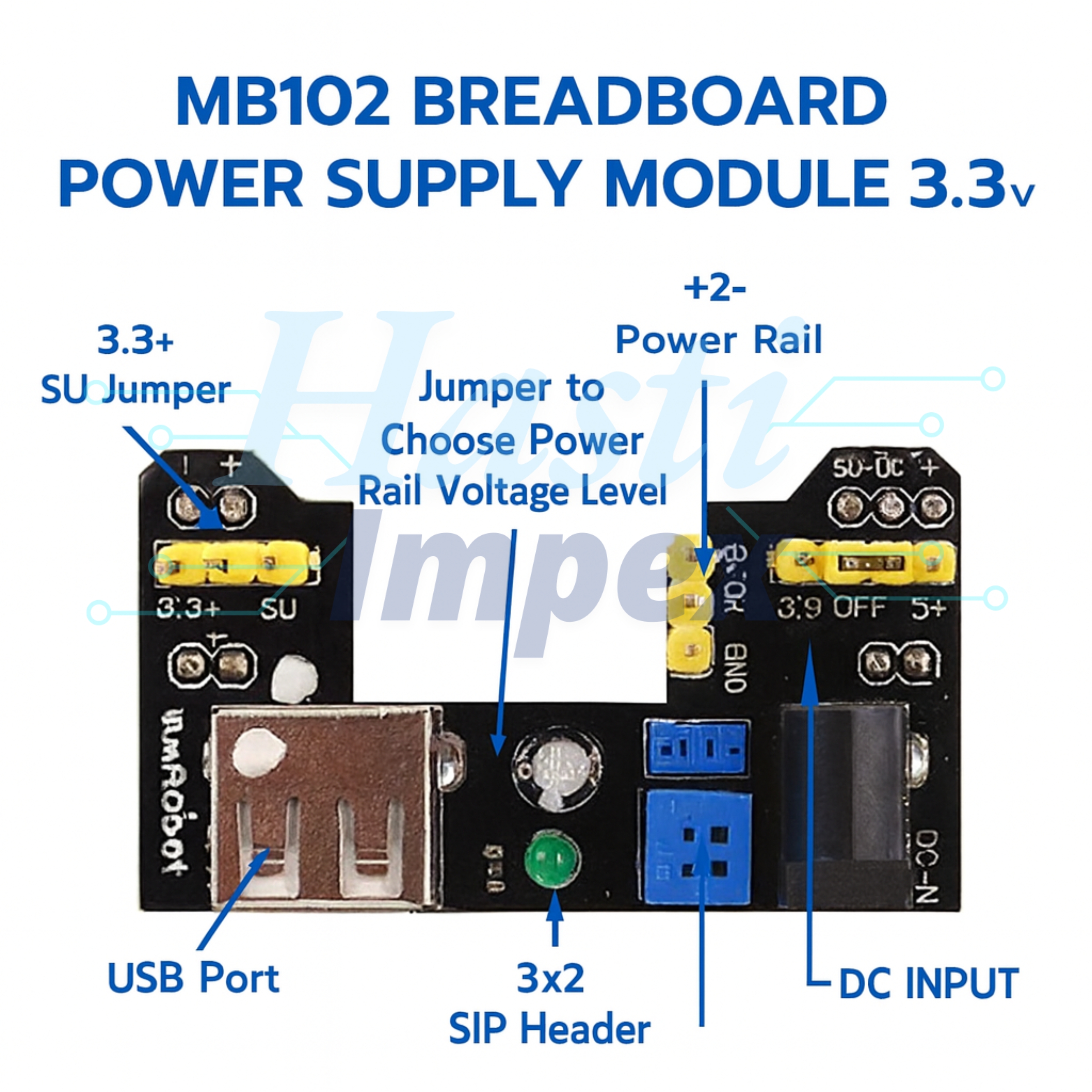

Diagram:
Specifications:
| Input Voltage | 6.5V to 12V DC |
| Output Voltage | 3.3V DC to 5V DC |
| Output Current | 700mA to 1A |
| Voltage Selection Switch | 3.3V and 5V |
| Power Rails | +5V, +3.3V, and GND |
| Input Pins | 6.5V–12V |
| Output Pins | +5V, +3.3V, and GND pins |
| Size | 6.9 x 3.3 cm |
| Weight | 10 to 20 grams |
