400KV Step Up Power Module
Description:
400kV Step-Up Power Module is an advanced, high-voltage power conversion device designed to step up a lower voltage to a massive 400kV (kilovolt) output. These types of modules are commonly used in high-voltage applications, including industrial machinery, power systems, and laboratory settings, where high voltage is required for various purposes, such as in testing equipment, medical devices, and particle accelerators.
Features:
1. High Voltage Output (400kV)
2. Wide Input Voltage Range
3. Compact and Robust Design
4. High Efficiency
5. Safety Mechanisms
6. Precise Output Control
7. Compatibility with Specialized Applications
8. Durability and Long Lifespan
9. Output Voltage Type

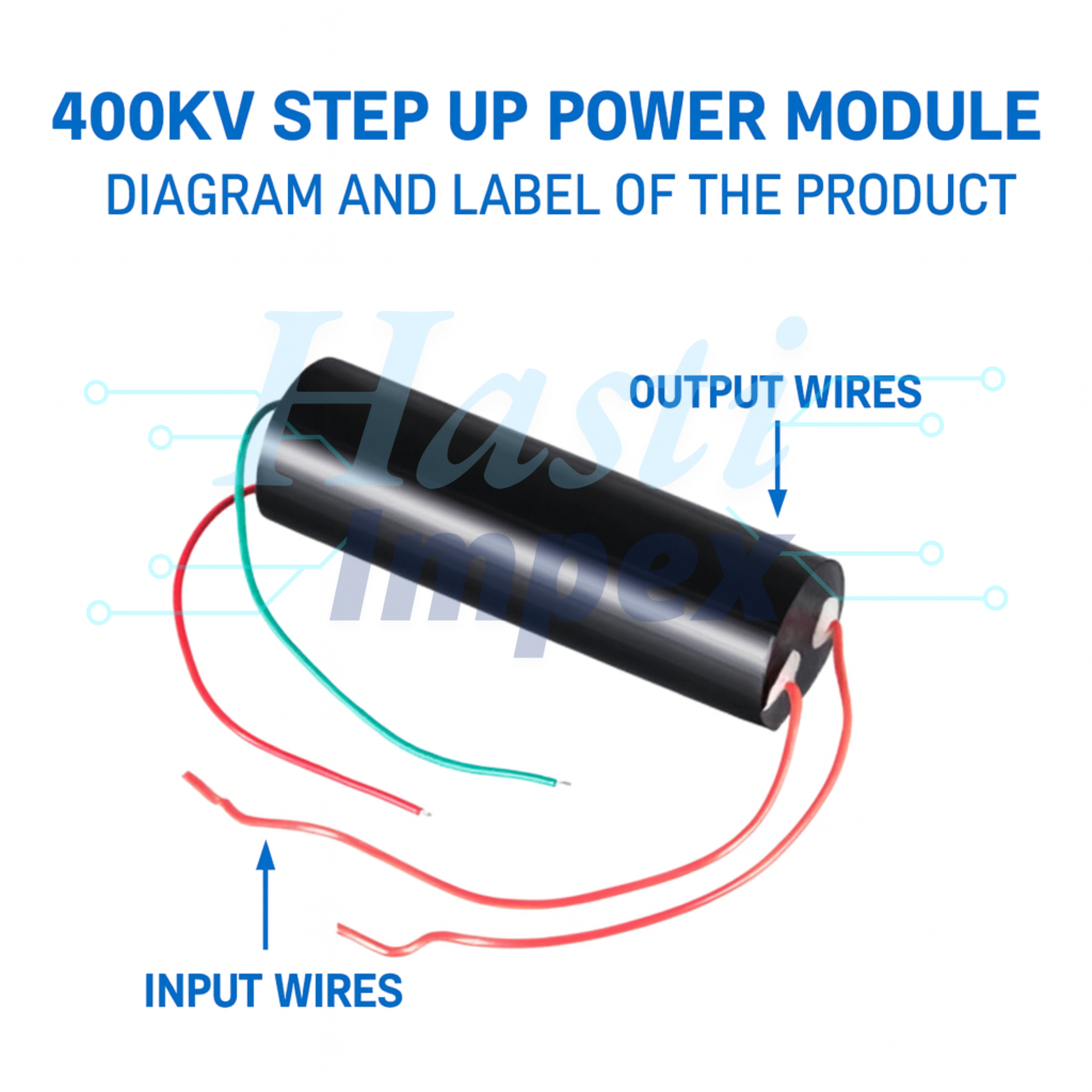

Diagram:
Specifications:
| DC Input Voltage | 12V DC |
| Output Power | 1 mA to several milliamps |
| High Efficiency | 85-95% |
| Input Power Consumption | 400kV at 1mA |
| Output Voltage Regulation | 400kV output |
| Input | standard low-voltage terminals |
| Output | high-voltage output terminals |
| Active Cooling | fans or liquid cooling systems |
| Dimensions | 150mm x 250mm x 100mm |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Weight | 3 to 10 kg |
