Description:

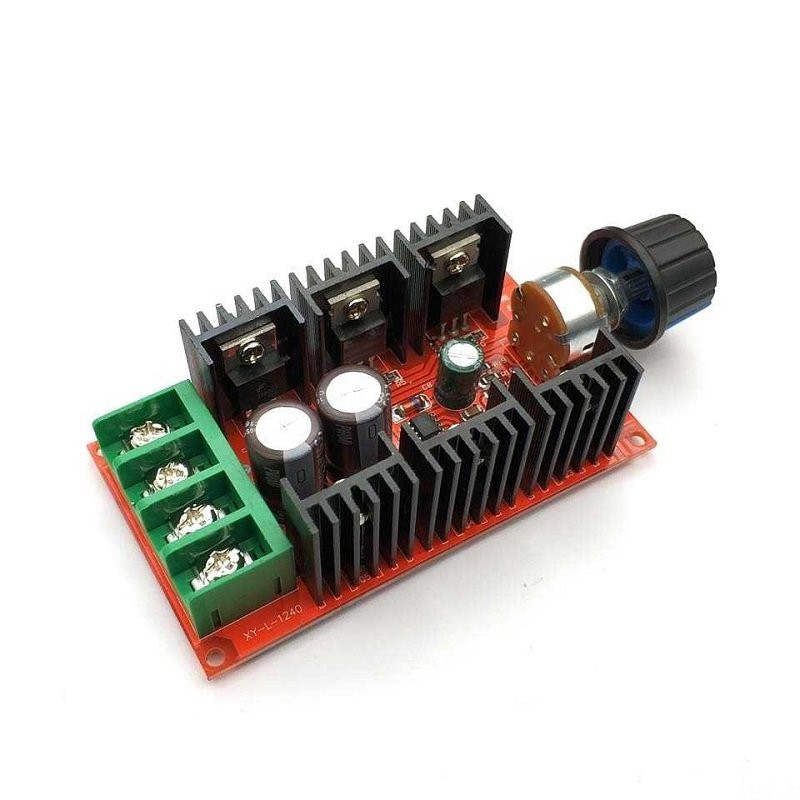

The 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller is a device designed to regulate the speed of DC motors using Pulse Width Modulation (PWM) technology. This type of speed controller is commonly used in various applications, such as electric vehicles, industrial equipment, and hobby projects involving high-power DC motors.

Key Features

1. Wide Voltage Range:
   • Operates within a voltage range of 9V to 50V DC.
2. High Power Handling:
   • Can handle up to 2000W of power.
3. Current Rating:
   • Supports a maximum continuous current of 40A.
4. PWM Technology:
   • Uses Pulse Width Modulation to control motor speed, offering efficient and precise speed adjustments.
5. Versatile Compatibility:
   • Suitable for various voltage levels, including 12V, 24V, 36V, and 50V systems.
6. Adjustable Speed Control:
   • Features a potentiometer or other interface to adjust motor speed.
7. Protection Mechanisms:
   • Often includes protections against overcurrent, overheating, and short circuits to ensure safe operation.
8. Compact Design:
   • Typically designed to be compact and easy to install in different setups.

Usage

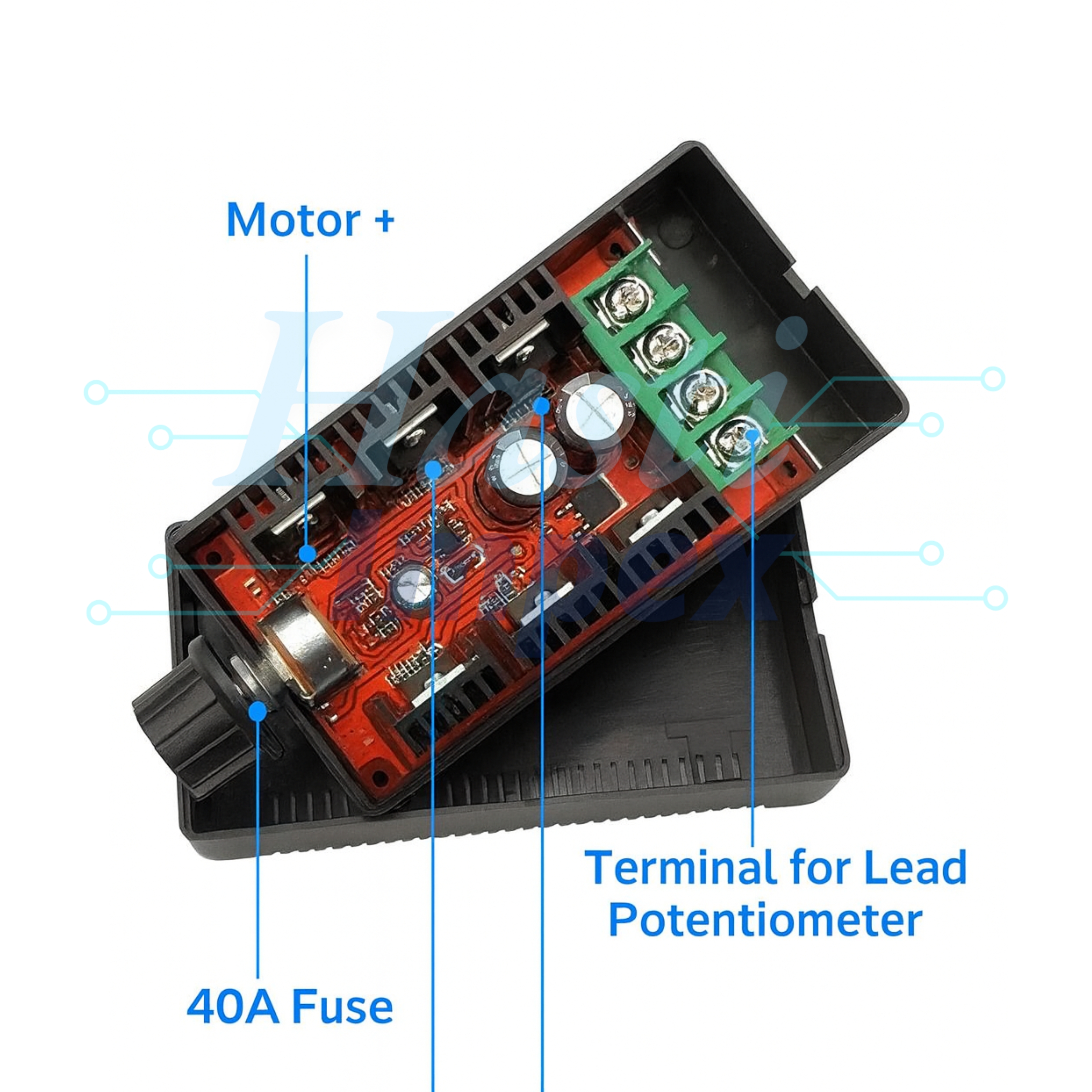

1. Wiring:
   • Input Connections: Connect the power supply to the input terminals of the controller. Ensure the power supply voltage is within the specified range (9-50V DC).
   • Output Connections: Connect the DC motor to the output terminals of the controller. Make sure the motor's voltage and current ratings are compatible with the controller's specifications.
2. Power On:
   • Once the connections are secure, power on the system. The controller should power up and be ready to adjust the motor speed.
3. Speed Adjustment:
   • Use the potentiometer (knob) or the control interface provided on the controller to adjust the motor speed. Turning the knob or adjusting the control will change the PWM signal, thus varying the motor speed.
4. Monitoring:
   • Monitor the motor and controller during operation. Ensure that the controller does not overheat and that the motor runs smoothly. Most controllers have built-in safety features, but it is still important to ensure proper ventilation and avoid overloading.

Description

The 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller is an advanced device designed for high-performance motor control applications. It leverages PWM technology to provide efficient and precise control over DC motor speeds, making it ideal for applications requiring fine-tuned motor operations.

With its ability to handle high power and current, this controller is suited for demanding applications, including electric vehicles, large industrial machines, and heavy-duty hobbyist projects. The wide input voltage range and robust design ensure compatibility with various power systems and reliable performance under different conditions.

Safety Considerations

• Overcurrent Protection: Ensure the controller has built-in overcurrent protection to prevent damage from excessive currents.
• Overheating Protection: Make sure the controller can handle the thermal load and has mechanisms to prevent overheating.
• Proper Ventilation: Install the controller in a well-ventilated area to avoid heat buildup.
• Secure Connections: Ensure all electrical connections are secure and properly insulated to prevent short circuits and electrical hazards.

By following these guidelines, users can effectively utilize the 9-50V 2000W 40A DC Electronic Speeder PWM Motor Speed Controller for a wide range of applications, achieving reliable and efficient motor speed control.
