3V 6V 12V 24V 35V PWM DC Motor Speed Regulator
Description:
A PWM (Pulse Width Modulation) DC motor speed regulator is a device used to control the speed of a DC motor by adjusting the average voltage delivered to the motor through rapid switching of the supply voltage. Here's a usage description along with specifications for a PWM DC motor speed regulator compatible with 3V, 6V, 12V, 24V, and 35V power supplies, capable of handling up to 5A:
-
Voltage Compatibility: This PWM DC motor speed regulator is versatile and can work with various DC power sources ranging from 3V to 35V. This flexibility allows it to be used with different types of DC motors requiring different voltage levels.
-
Pulse Width Modulation (PWM): PWM is a technique where the duty cycle of a square wave is varied to control the average voltage applied to the motor. By adjusting the duty cycle of the PWM signal, the speed of the motor can be precisely controlled.
-
Speed Control: The regulator allows for precise control over the speed of the DC motor. By adjusting the PWM signal, the average voltage applied to the motor terminals can be varied, thus changing the speed of the motor.
-
Current Handling Capacity: This regulator can handle a maximum current of up to 5A. It's important to ensure that the motor's current draw does not exceed this limit to prevent damage to the regulator.
-
Input Voltage: The regulator can accept input voltages ranging from 3V to 35V, making it suitable for a wide range of applications where different voltage power supplies are available.
-
Output Voltage: The output voltage is adjustable based on the PWM signal. By controlling the duty cycle of the PWM signal, the average voltage delivered to the motor can be adjusted accordingly.
-
Protection Features: Some PWM DC motor speed regulators may include protection features such as over-current protection or over-temperature protection to safeguard the regulator and the motor from damage under adverse conditions.
-
Heat Dissipation: Depending on the load and operating conditions, the regulator may generate heat. Adequate heat dissipation measures should be taken to ensure the regulator operates within its specified temperature range.
-

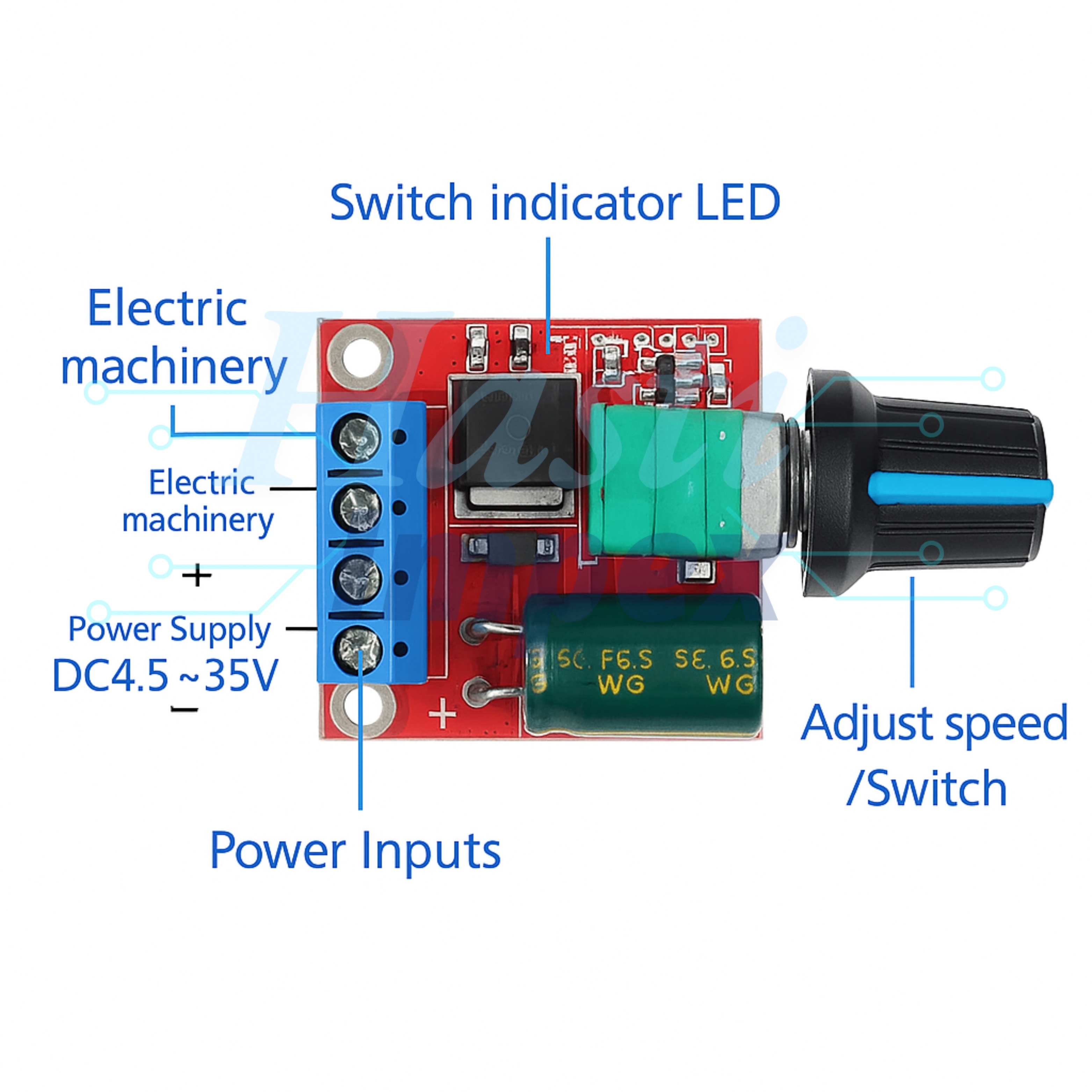

Connections: The regulator typically has input and output terminals for connecting the power supply and the motor. Additionally, there may be terminals for connecting the PWM control signal and possibly other control features depending on the specific model.
-
Applications: PWM DC motor speed regulators find applications in robotics, automation, model making, automotive, and various other fields where precise control of motor speed is required.
When using the PWM DC motor speed regulator, it's essential to adhere to the manufacturer's specifications and guidelines to ensure safe and optimal operation. Additionally, proper wiring and installation techniques should be followed to prevent electrical hazards and ensure reliable performance.
