A3144 Hall Effect Sensor Module
Description:
A3144 Hall Effect Sensor Module is a popular and widely used sensor module designed to detect magnetic fields and generate a corresponding electrical output. This module is based on the A3144 Hall Effect Sensor integrated circuit, which allows it to measure the presence and strength of a magnetic field in its proximity. Hall Effect sensors are commonly used in applications such as position sensing, speed detection, proximity sensing, and current sensing.
Hall Effect refers to the generation of a voltage difference (the Hall voltage) across a conductor when it is subjected to a magnetic field perpendicular to the current flow. The A3144 Hall Effect Sensor operates based on this principle, providing a digital output (either HIGH or LOW) depending on the presence and polarity of the magnetic field.
Features:
1. Digital Output
2. Single Bipolar Output
3. Supply Voltage
4. Current Consumption
5. Compact Size
6. Wide Operating Temperature
7. Built-in Pull-up Resistor
8. Magnetic Field Sensitivity

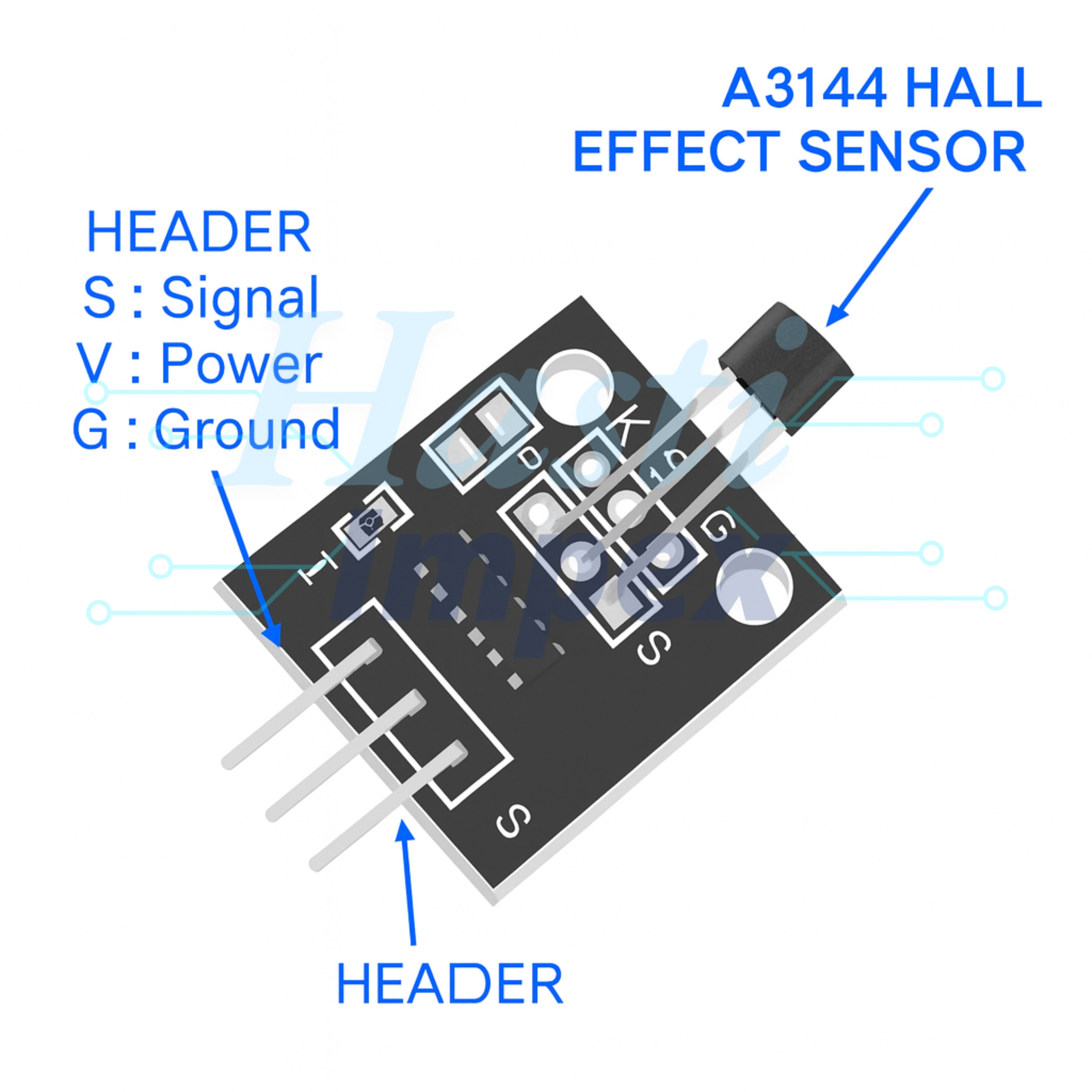

Diagram:
Specifications:
| Model Type | Hall Effect Sensor |
| Model No. | A3144 |
| Operating Voltage (V) | 5 |
| Color | Black |
| Current Consumption (mA) | 4mA |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm) | 20 |
| Width (mm) | 16 |
| Weight (g) | 2 |
