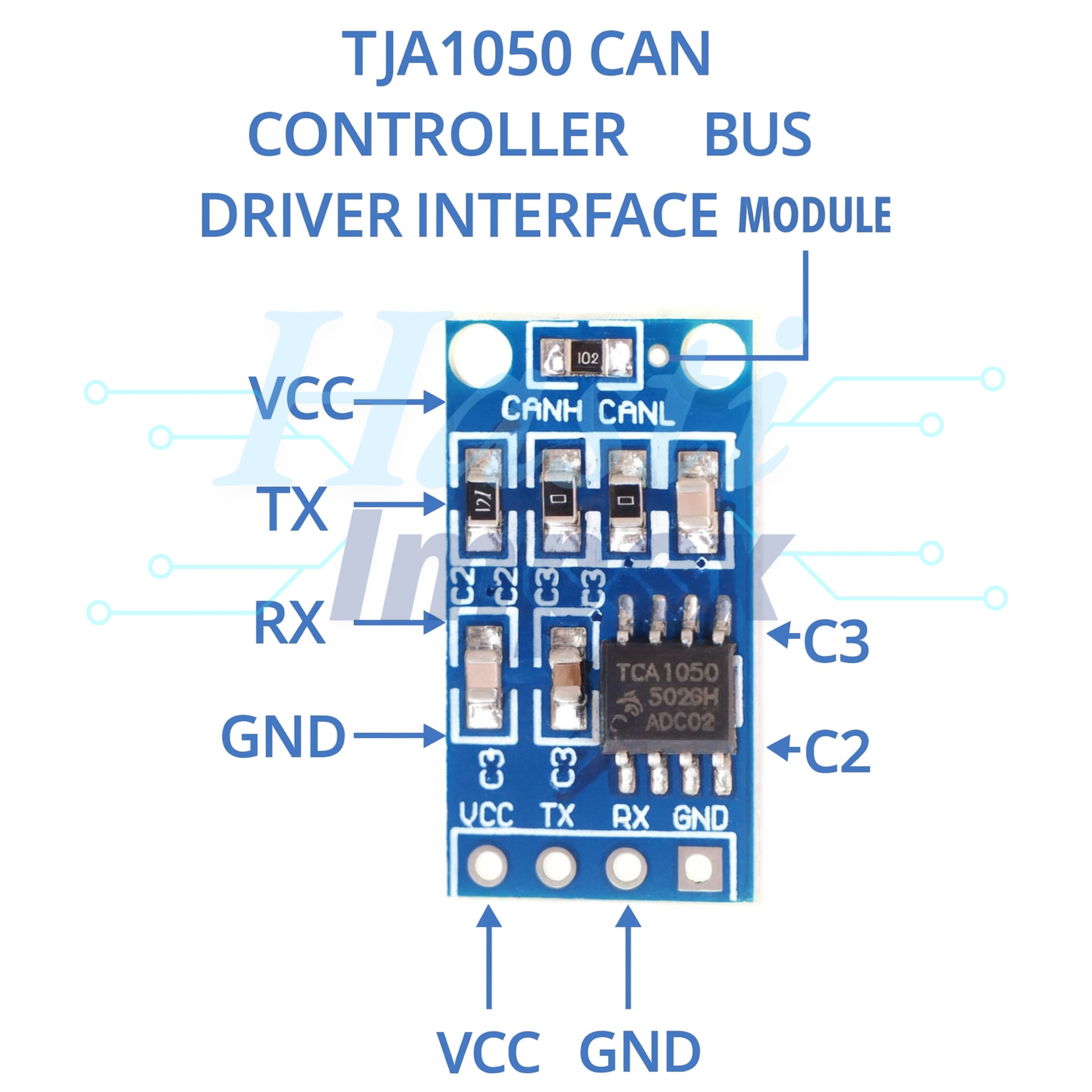

TJA1050 CAN Controller Bus Driver Interface Module
Description:
TJA1050 CAN Controller Bus Driver Interface Module is an essential component for systems that require communication over a Controller Area Network (CAN) bus. This module allows devices to communicate with each other in a highly reliable, real-time manner, making it ideal for automotive, industrial, and automation applications. The TJA1050 is designed to interface with microcontrollers or other logic devices, enabling them to transmit and receive CAN data over the CAN network.
Features:
1. High-Speed CAN Transceiver
2. Bi-directional Communication
3. Compatible with 5V and 3.3V Logic
4. Differential Signal Transmission
5. Low Power Consumption:
6. CAN Bus Protection:
7. Integrated Standby Mode:
8. Industry-Standard 9-Pin Interface:
9. Robust and Reliable:
10. Error Detection and Handling:
Specifications:
| Bus Type | CAN Bus |
| Data Rate | Up to 1 Mbps |
| Bus Voltage | 2.0V to 3.0V (CAN_H to CAN_L) |
| Operating Voltage | 4.5V to 5.5V (Typically 5V) |
| Logic Voltage | 3.3V to 5V |
| Power Supply Current | 15mA |
| Standby Mode Current | < 10μA |
| CAN Bus Maximum Length | Up to 40 meters at 1 Mbps |
| Temperature Range | -40°C to +125°C |
| Standby/Enable Pin | Low Power Standby Mode |
| Pinout Type | 9-Pin |
