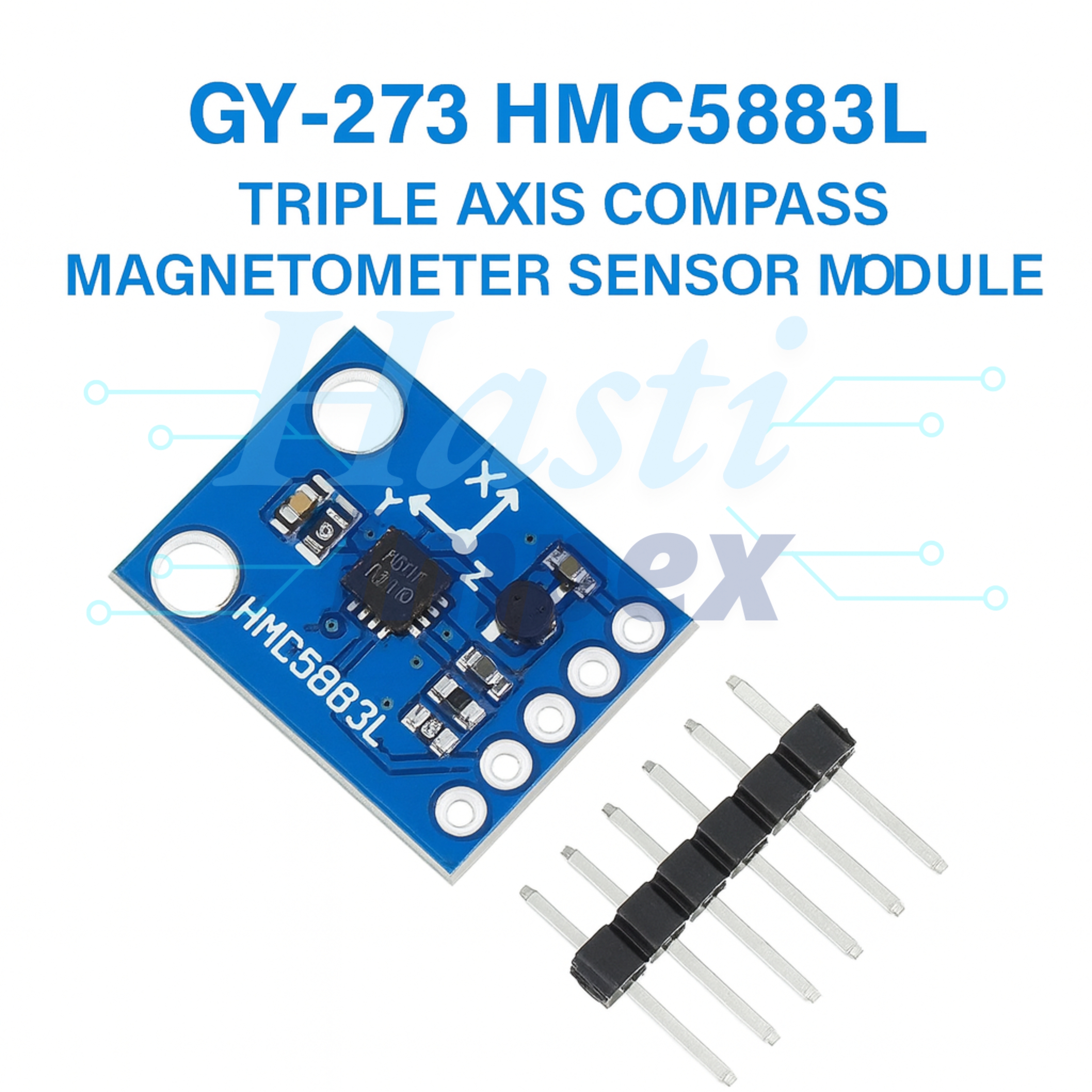

GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module
Description:
GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module is a highly accurate and versatile sensor designed for measuring the magnetic field in three dimensions (X, Y, and Z axes). It is built around the HMC5883L magnetometer IC, a low-power, high-precision sensor capable of detecting the Earth's magnetic field and providing data that can be used in various applications such as compassing, navigation, robotics, and geospatial tracking.
This sensor module is widely used in drones, robots, GPS systems, and wearable technology, where precise heading and orientation data are critical. By measuring the intensity of the magnetic field in all three axes, it can determine the direction relative to the magnetic North Pole, which is essential for a wide range of navigation and orientation tasks. The GY-273 HMC5883L module communicates with a microcontroller (such as Arduino or Raspberry Pi) using the I2C communication protocol, which simplifies wiring and setup in most projects.
The sensor is compact and easy to integrate into various systems, making it an ideal solution for hobbyists, engineers, and developers who require an efficient and cost-effective magnetic field sensor. With a built-in low-pass filter, configurable output data rate, and a wide range of operating voltages, it provides high flexibility and accuracy for many different use cases.
Features:
1. Triple-Axis Magnetometer
2. High Precision
3. I2C Communication
4. Low Power Consumption
5. Configurable Output Data Rate
6. Built-in Low-Pass Filter
7. Wide Voltage Range
8. Small Form Factor:
9. Onboard Voltage Regulator
Diagram:
Specifications:
| Sensor Type | HMC5883L |
| Interface | I2C |
| Operating Voltage | 3.3V to 5V |
| Operating Current | ~3.5 mA |
| Temperature Range | -40°C to +85°C |
| Measurement Axes | 3 axes (X, Y, Z) |
| Dimensions | 1 x 1 x 1cms |
| Weight | 5 grams |
