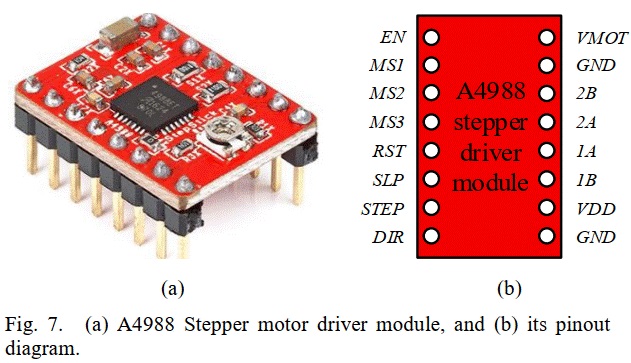

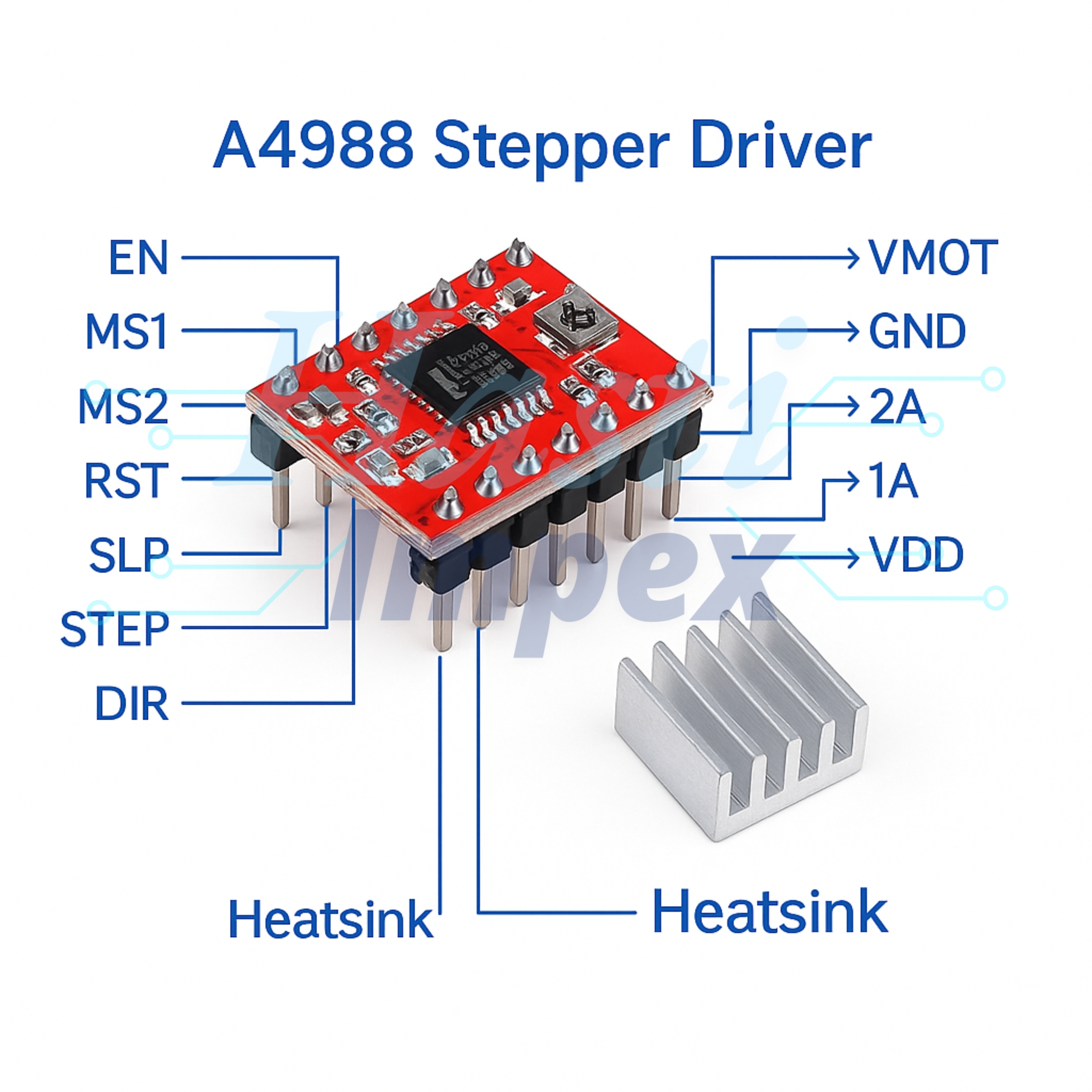

A4988 Stepper Motor Driver Module
Description:
The A4988 stepper motor driver module is a commonly used component in projects involving stepper motor control. Here's how it's typically used:
-
Stepper Motor Control: The primary function of the A4988 module is to control the movement of stepper motors. Stepper motors are used in a wide range of applications, including 3D printers, CNC machines, robotic systems, and automation equipment.
-
Microstepping: The A4988 module supports microstepping, allowing for smoother and more precise movement of stepper motors. Microstepping divides each step of the motor into smaller increments, providing finer control and reducing vibration and noise.
-
Current Limiting: The module includes adjustable current limiting, which allows you to set the maximum current that the motor driver will deliver to the stepper motor. This feature helps prevent overheating and protects the motor from damage.
-
Step and Direction Control: The A4988 module typically uses a step and direction control interface. By sending pulses to the step pin, you can control the number of steps the motor takes, while the direction pin determines the direction of rotation.
-
Easy Integration: The A4988 module is easy to integrate into electronic projects due to its compact size and simple interface. It can be easily connected to microcontrollers, such as Arduino, Raspberry Pi, or other control systems.
-
Driver Configuration: The module allows for configuration of various parameters, such as step resolution, through external components such as resistors and jumpers.
-
High Efficiency: The A4988 module is known for its high efficiency, which helps minimize power consumption and heat generation during motor operation.
Overall, the A4988 stepper motor driver module is an essential component for precise control of stepper motors in various applications. Its ease of use, adjustable current limiting, microstepping capability, and high efficiency make it a popular choice among hobbyists and professionals alike.
