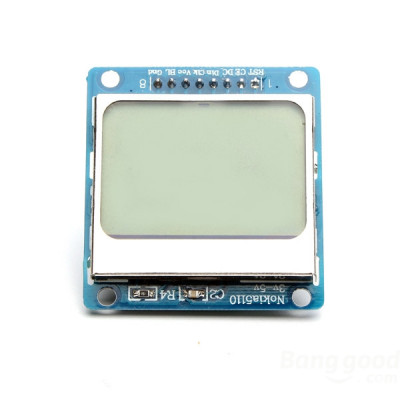

Nokia 5110 LCD Display Module
Description:
Nokia 5110 LCD Display Module is a popular and widely used graphic LCD screen in many electronics projects, especially for embedded systems, DIY electronics, and hobbyist projects. Originally designed for the Nokia 5110 mobile phone, this small 48x84 pixel monochrome display offers a clear, compact way to show text, graphics, and simple animations.
This LCD module uses a PCD8544 controller, which allows for easy interfacing with various microcontrollers, including Arduino, Raspberry Pi, and other embedded platforms. The display is powered by a 3.3V or 5V power supply, making it compatible with many microcontroller development boards.
Thanks to its compact size, low power consumption, and ease of use, the Nokia 5110 LCD is an excellent option for projects where you need a simple, graphical user interface (GUI) to display information, such as temperature readings, sensor outputs, status updates, or menu systems.
Features:
1. Compact Size:
2. Monochrome Display:
3. PCD8544 Controller
4. Low Power Consumption
5. Simple Communication Protocol
6. Backlight Control
7. Graphical Display
8. Versatile Display Options
9. Compatibility with Arduino & Other Platforms
10. Affordable and Easy to Use
Diagram:
Specifications:
| Model Type | Nokia LCD |
| Backlight Color | Blue |
| Driver IC | PCD8544 |
| Input Voltage (V) | 2.7 to 3.3 |
| Resolution (pixels) | 84 x 48 |
| PCB Size ( L x W ) mm | 45.5 x 43.5 |
| Motor Mount Hole Dia. (mm) | 2 |
