STM8S103F3P6 Core STM8 Development Board Minimum System Board
Description:
STM8S103F3P6 Core STM8 Development Board is designed to offer an easy-to-use, accessible platform for developers and hobbyists interested in working with STM8 microcontrollers. At the heart of the board is the STM8S103F3P6, a microcontroller based on the STM8 8-bit core. Despite its 8-bit architecture, the STM8S103F3P6 is equipped with a variety of features that provide powerful performance and flexibility, making it suitable for a wide range of applications, from simple embedded systems to more complex control systems.
The board provides all the necessary components for building and debugging applications, including on-board debugging interfaces, user interfaces like LEDs and push buttons, and a variety of expansion options. The compact design makes it suitable for breadboard-based prototyping, allowing quick and easy experimentation. Developers can begin coding and debugging directly on the board, streamlining the development process and reducing time to market for their projects.
Features:
1. Microcontroller
2. Communication Interfaces
3. On-Board Peripherals
4. Power Supply
5. Debugging and Programming Support
6. Analog Support
7. Low Power Operation
8. Development and Software Support
9. Breadboard-Compatible
10. Expansion Capabilities
11. Compact Form Factor

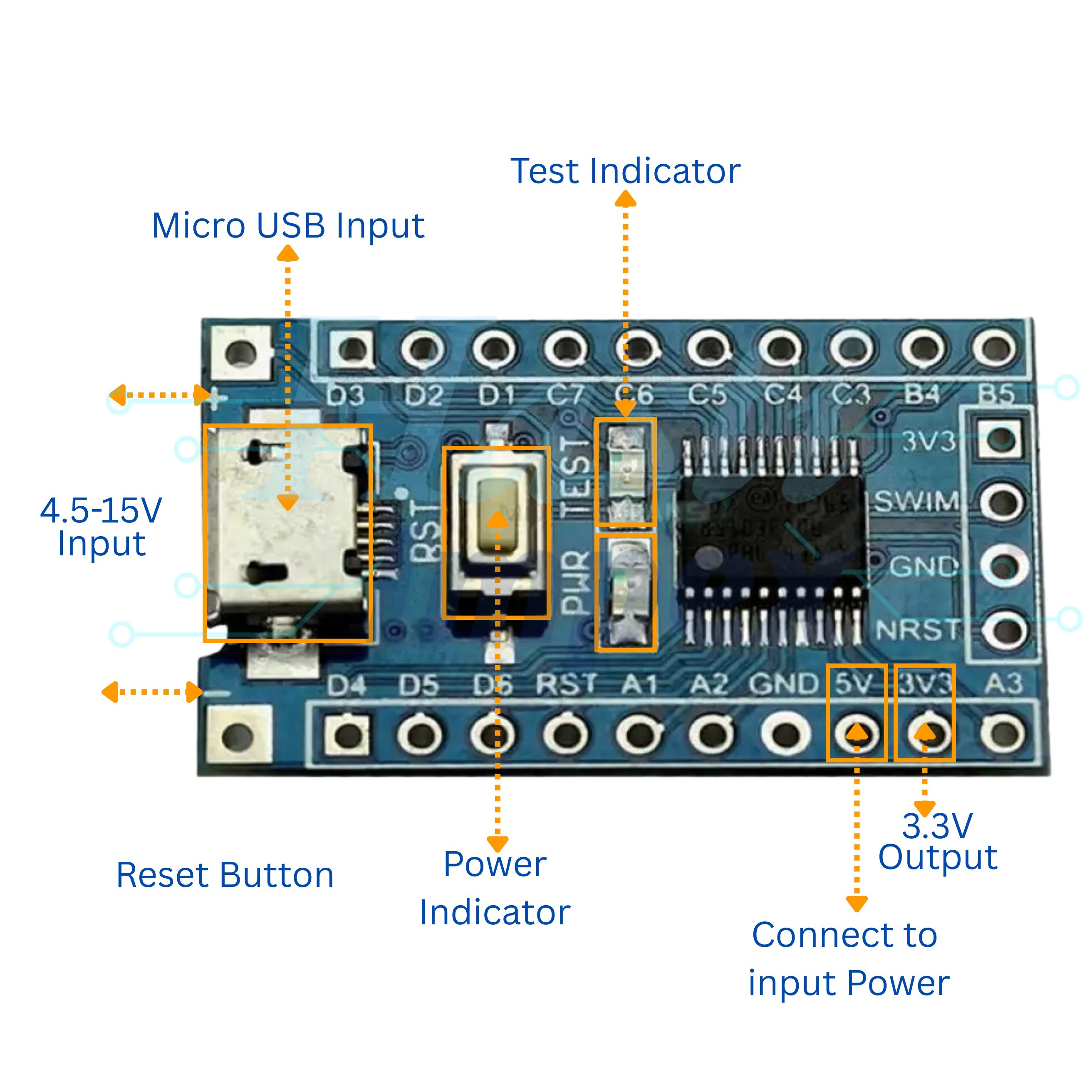

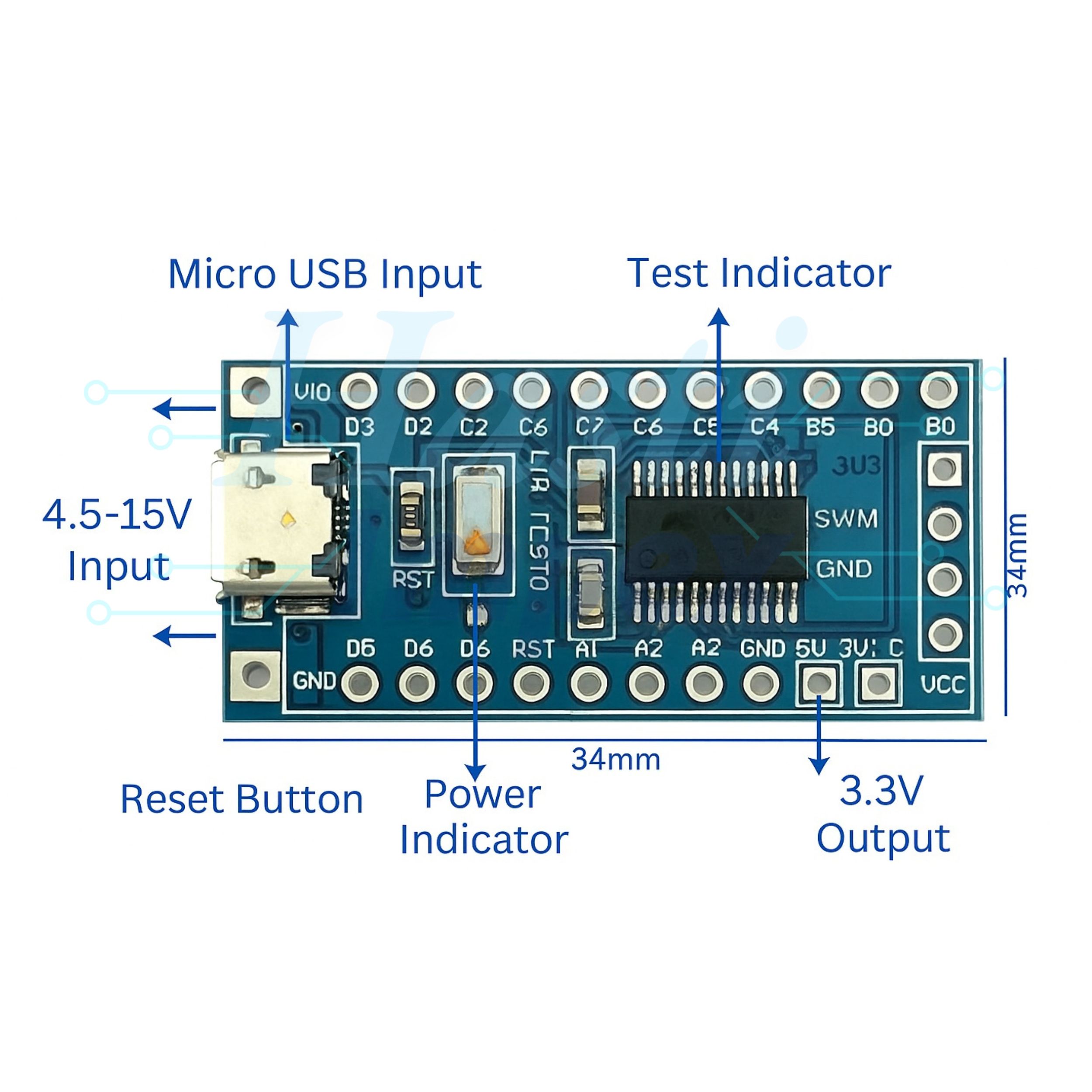

Diagram:
Specifications:
| Based On | STM8 Based |
| IC Chip | STM32F103C8T6 |
| Reset Button (Y/N): | YES |
| USB | Micro USB |
| Length (mm) | 30 |
| Width (mm) | 20 |
| Height (mm) | 5 |
| Weight (g) | 4 |
