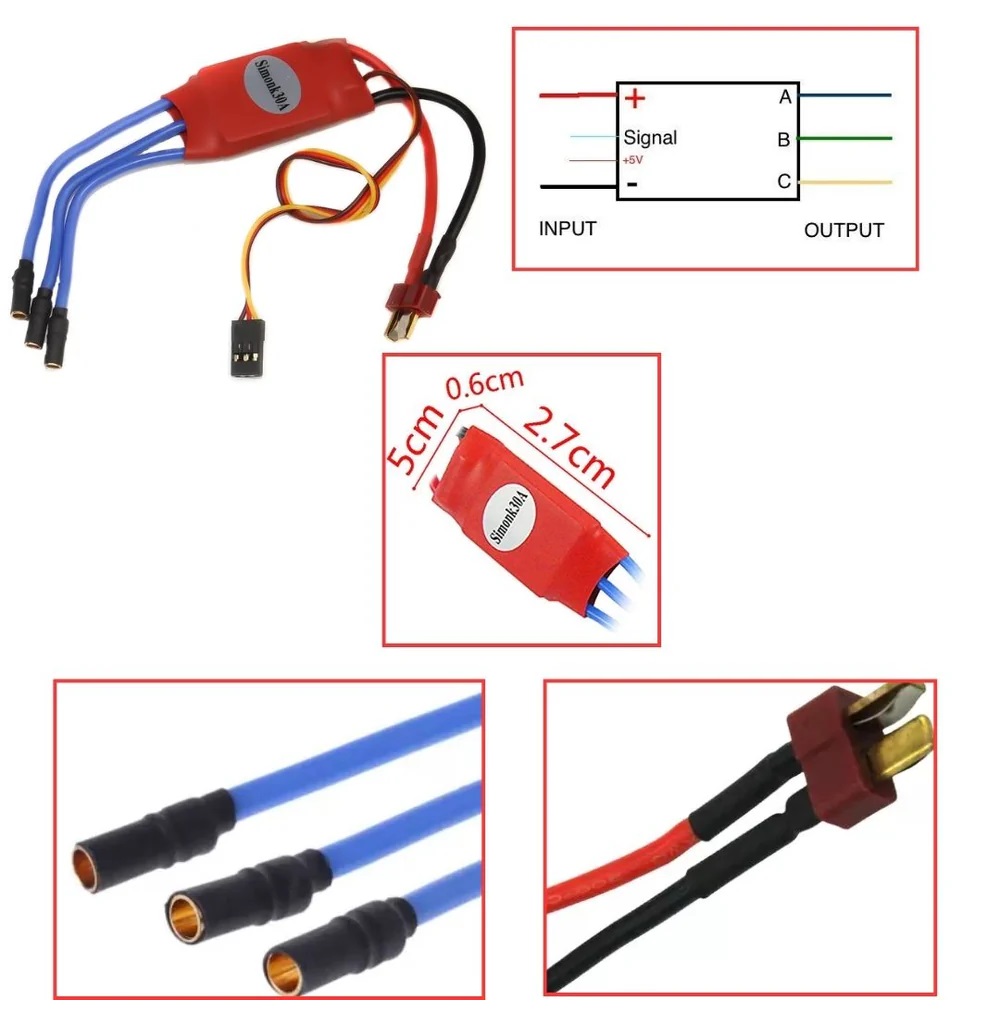

SimonK 30A BLDC ESC Electronic Speed Controller with Connectors - Red Color
Description:
The SimonK 30A BLDC ESC (Electronic Speed Controller) is designed to control the speed of brushless DC motors, often used in drones, RC planes, and other remote-controlled vehicles. Below is a detailed description and guide on its use:
Description:
- Current Rating: 30A continuous current, which means it can handle a continuous current draw of up to 30 amps without overheating or failing.
- Voltage Range: Typically supports 2-4S LiPo batteries (7.4V to 14.8V).
- Firmware: Pre-flashed with SimonK firmware, which is optimized for rapid throttle response and smooth operation, making it popular among hobbyists and drone enthusiasts.
- Connectors: Usually comes with 3.5mm bullet connectors for motor connection and XT60 or other standard connectors for battery input.
- Dimensions and Weight: Compact and lightweight, ideal for mounting in small spaces on drones or RC planes.
Key Features:
- Fast Response Time: The SimonK firmware is known for its rapid throttle response, making it suitable for applications requiring precise control.
- Low Voltage Cutoff: Protects the battery from over-discharge by cutting off power when the voltage drops below a certain threshold.
- Thermal Protection: Shuts down the ESC to prevent damage if it overheats.
- BEC (Battery Elimination Circuit): Some versions include a BEC to provide power to the receiver and other electronics, typically outputting 5V.
Usage Instructions:
-
Wiring:
- Motor Connection: Connect the three output wires (usually with bullet connectors) to the three wires of the brushless motor. The order of connection determines the rotation direction of the motor; swapping any two wires will reverse the direction.
- Battery Connection: Connect the input wires to your battery. Ensure the polarity is correct (positive to positive, negative to negative) to avoid damage.
- Signal Connection: Connect the signal wire (usually a 3-pin connector) to the throttle channel of your receiver.
-
Setup:
- Calibration: Before first use, you may need to calibrate the ESC to match your transmitter’s throttle range. This typically involves a sequence of powering the ESC with the throttle stick at maximum, then lowering it to minimum when prompted by beeps from the motor.
- Programming: If needed, you can program the ESC using the transmitter or a programming card to adjust settings like brake, battery type, timing, etc.
-
Operation:
- Startup: When powered on, the ESC will emit a series of beeps indicating the number of cells in the connected battery and that it is ready for use.
- Throttle Control: Use the transmitter to control the throttle. The ESC will regulate the speed of the motor based on the input from the transmitter.
-
Safety Checks:
- Ensure all connections are secure and correct.
- Check for any signs of damage or wear on the ESC and connectors.
- Avoid running the motor at full throttle for extended periods to prevent overheating.
Troubleshooting:
- Motor Not Spinning: Check the connections and ensure the ESC is calibrated correctly. Verify the battery is charged.
- Overheating: Ensure the ESC is within its rated current and voltage limits. Improve airflow around the ESC.
- Beeping Sounds: Refer to the manual for beep codes. They can indicate issues such as low voltage, signal loss, or other errors.
By following these guidelines, you can effectively use the SimonK 30A BLDC ESC for your brushless motor control applications, ensuring smooth and reliable performance for your RC projects.
