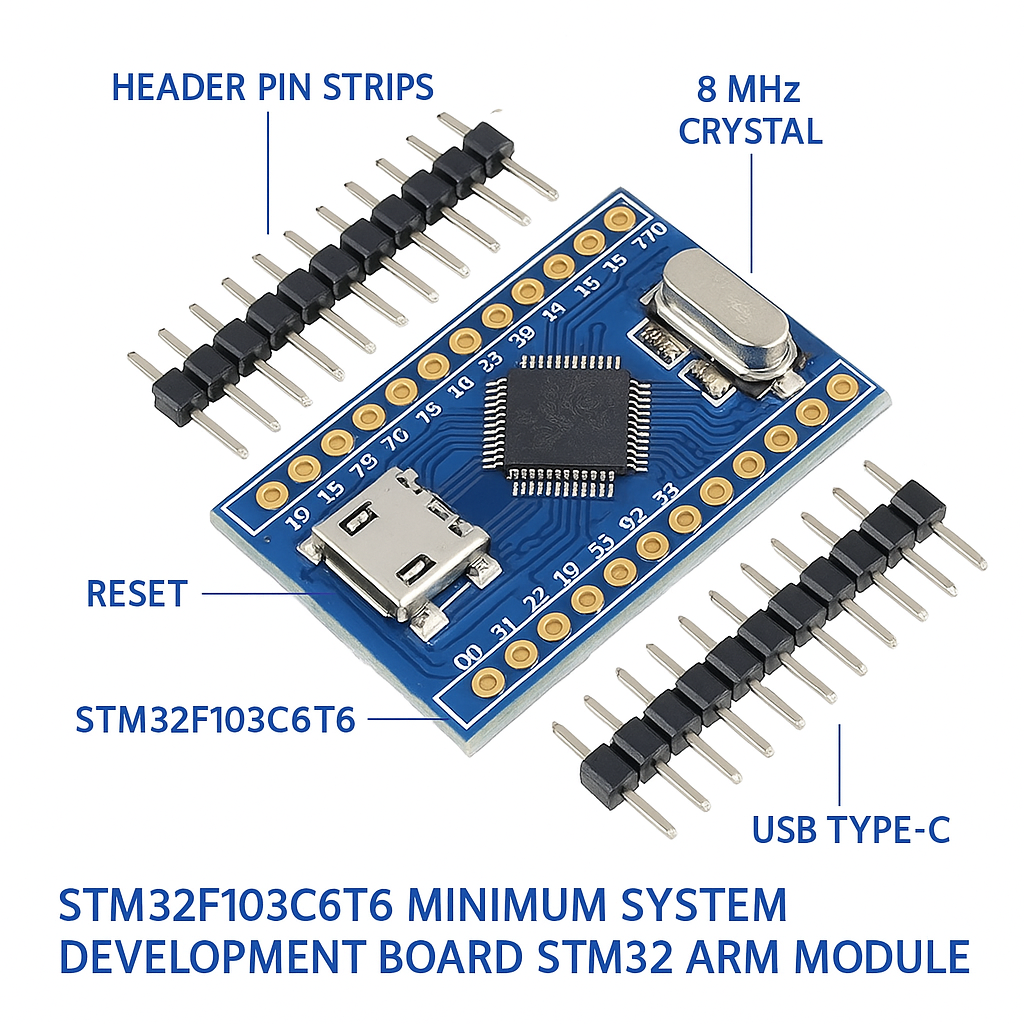

STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module
Description:
STM32F103C6T6 Minimum System Development Board is a compact, versatile development platform based on the STM32F103C6T6 microcontroller, which is part of the STM32 series of microcontrollers developed by STMicroelectronics. This board is ideal for engineers, hobbyists, and developers who want to explore and develop applications based on the STM32 ARM Cortex-M3 core. The STM32F103C6T6 is widely used in embedded systems due to its balance of performance, features, and low power consumption.
The STM32F103C6T6 is part of the STM32F1 series and features a 32-bit ARM Cortex-M3 core, making it well-suited for a variety of applications requiring reliable performance and efficient power consumption. The board comes with a minimum system design, providing the essential components to get started with development.
Features:
1. Microcontroller
2. Minimum System Design
3. Power Supply
4. Connectivity
5. Peripherals
6. Programming and Debugging
7. Expansion Options
8. Development Environment
9. Libraries and Frameworks
10. Physical Dimensions
11. Applications

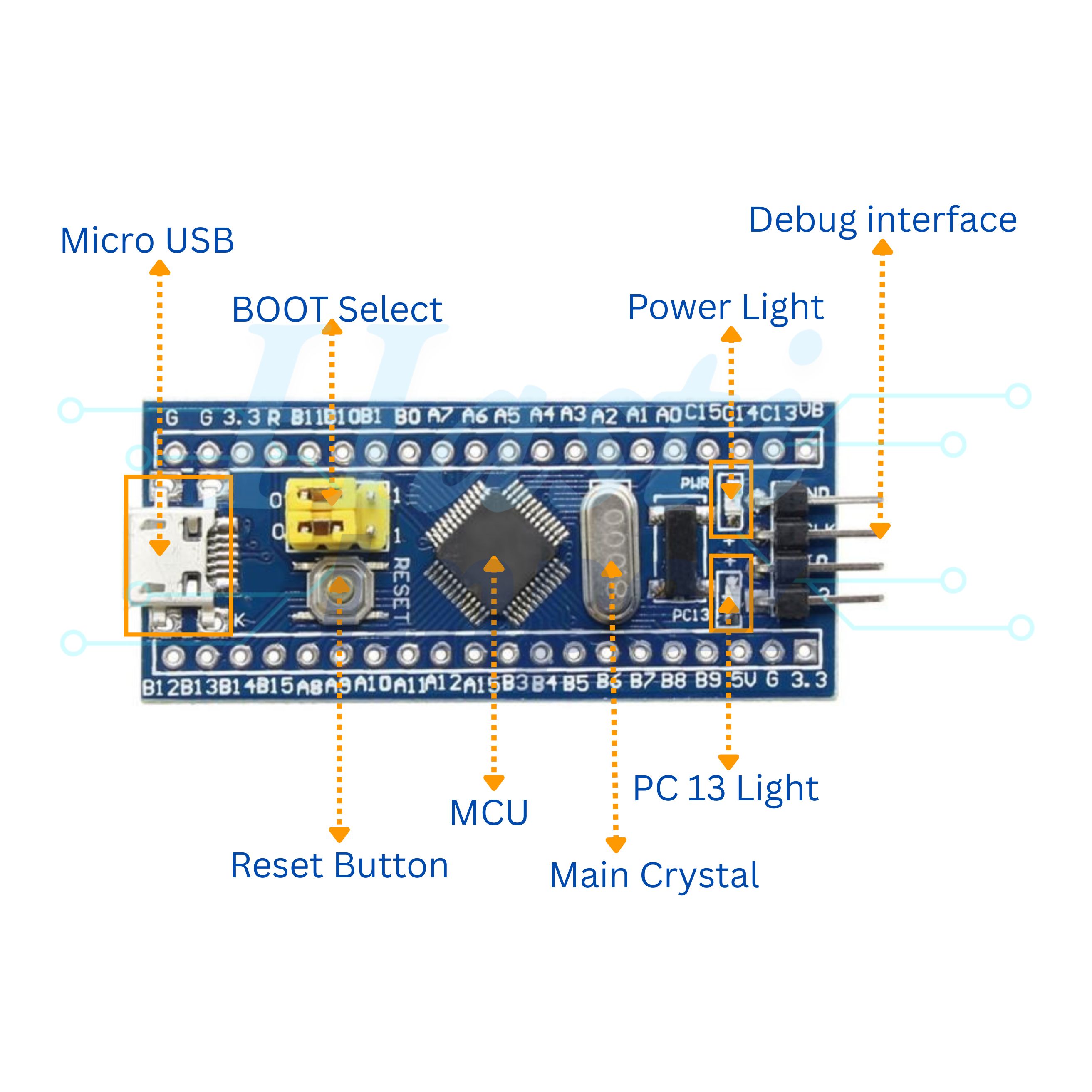

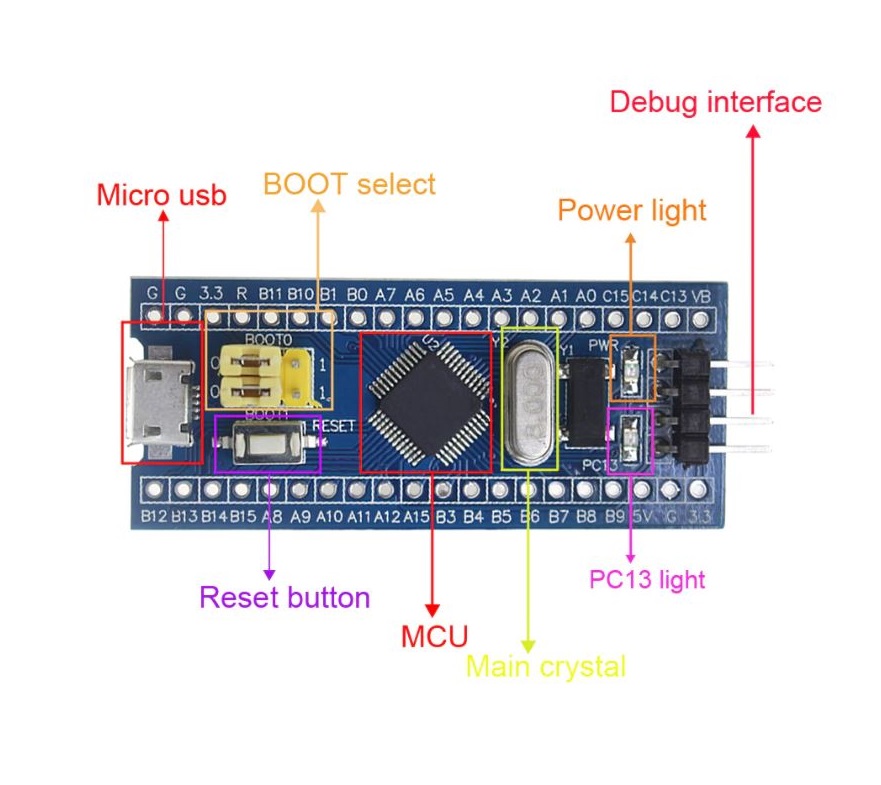

Diagram:
Specifications:
| Model | STM32F103C6T6 |
| Core Architecture | 32-bit |
| Operating Speed | 72 MHz |
| Flash Memory | 32 KB |
| SRAM | 6 KB |
| GPIO Pins | 37 pins |
| Operating Voltage | 3.3V |
| External DC supply | 5V or 3.3V) |
| ADC | 12-bit |
| Board Size | 50mm x 40mm |
