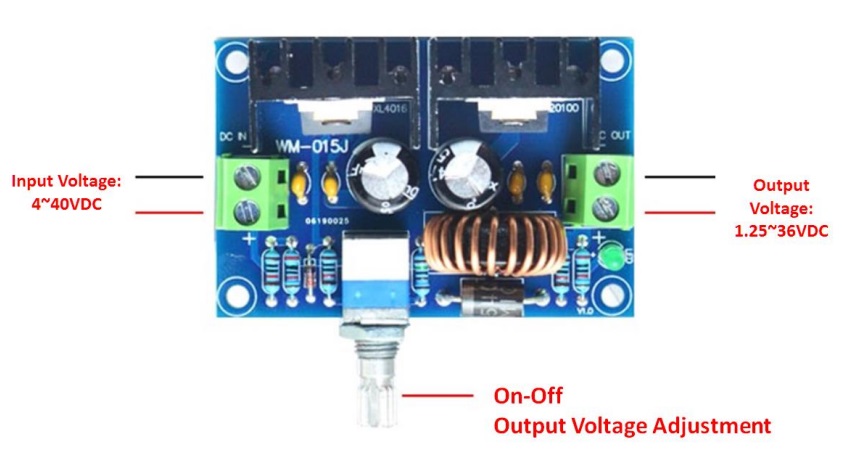

XL4016E1 200W Step Down Power Supply Module
Description:
The XL4016E1 is a step-down (buck) voltage regulator chip commonly used in power supply modules. When combined with other components on a module, it forms a complete power supply unit capable of converting a higher input voltage to a lower output voltage efficiently. Here's how to use and understand an XL4016E1 200W step-down power supply module:
-
Input and Output Voltage:
- Determine the input voltage range your module can accept. Typically, these modules can handle a wide range, often from 4V to 40V or higher.
- Understand the output voltage range and ensure it meets your requirements. The XL4016E1 can typically provide output voltages from around 1.2V to 35V.
-
Current Handling:
- Check the module's maximum current output capability. While the XL4016E1 can handle currents up to 8A or more, the module's design and components may limit this. Ensure it meets your project's current requirements.
-
Heat Dissipation:
- Consider heat dissipation requirements, especially if the module is expected to handle high currents or voltage differentials. The XL4016E1 can generate significant heat during operation, and some modules may include heatsinks or other cooling mechanisms.
-
Adjusting Output Voltage:
- Many XL4016E1-based modules feature a potentiometer or trimmer resistor to adjust the output voltage. Understand how to adjust this voltage to your desired level.
- Exercise caution when adjusting the output voltage to prevent damage to connected devices or components.
-
Protection Features:
- Some modules include protection features such as over-current protection, over-temperature protection, and reverse polarity protection. Familiarize yourself with these features and ensure they meet your project's safety requirements.
-
Wiring and Connections:
- Connect your input voltage source to the module's input terminals, observing correct polarity.
- Connect your load (device requiring power) to the output terminals, ensuring proper polarity.
- Double-check all connections to prevent accidental short circuits or incorrect wiring.
-
Testing:
- Power up the module and verify that the output voltage matches your expectations.
- Test the module under different load conditions to ensure stability and reliability.
-
Integration:
- Integrate the power supply module into your project, ensuring it is securely mounted and properly ventilated.
- Consider additional filtering or regulation if your project requires very clean or stable power.
-
Documentation and Safety:
- Document the module's specifications, wiring diagrams, and any modifications made.
- Ensure users are aware of safety precautions, especially regarding high voltages and currents.
By understanding these aspects and following proper usage guidelines, you can effectively utilize an XL4016E1 200W step-down power supply module in your projects, providing stable and regulated power as needed.
