CH375B USB Disk Read-write Module USB Flash Disk For Arduino
Description:
CH375B USB Disk Read-Write Module is an essential component for Arduino projects that need to interface with USB flash drives or mass storage devices. Based on the CH375B USB-to-SATA/USB controller chip, this module enables your Arduino to read from and write to USB flash drives, offering an easy and reliable way to store and retrieve data for various applications. It serves as a bridge between the USB storage devices and microcontrollers, making it possible to interact with files stored on USB drives directly from your Arduino system.
This module is ideal for creating data logging systems, file management systems, and embedded applications that require external storage. With the ability to read and write data to USB flash drives, you can easily store large amounts of data, backup data, or even manage files without needing a more complex computer system. The CH375B module supports FAT12, FAT16, and FAT32 file systems, which are widely used and provide compatibility with most USB drives.
Features:
1. USB Disk Read/Write Functionality
2. CH375B Controller Chip
3. Wide File System Support
4. SPI Interface
5. Automatic USB Drive Detection
6. Data Logging
7. Portable Storage Solutions
8. Low Power Consumption
9. Easy Integration with Arduino
10. Compact and Efficient Design

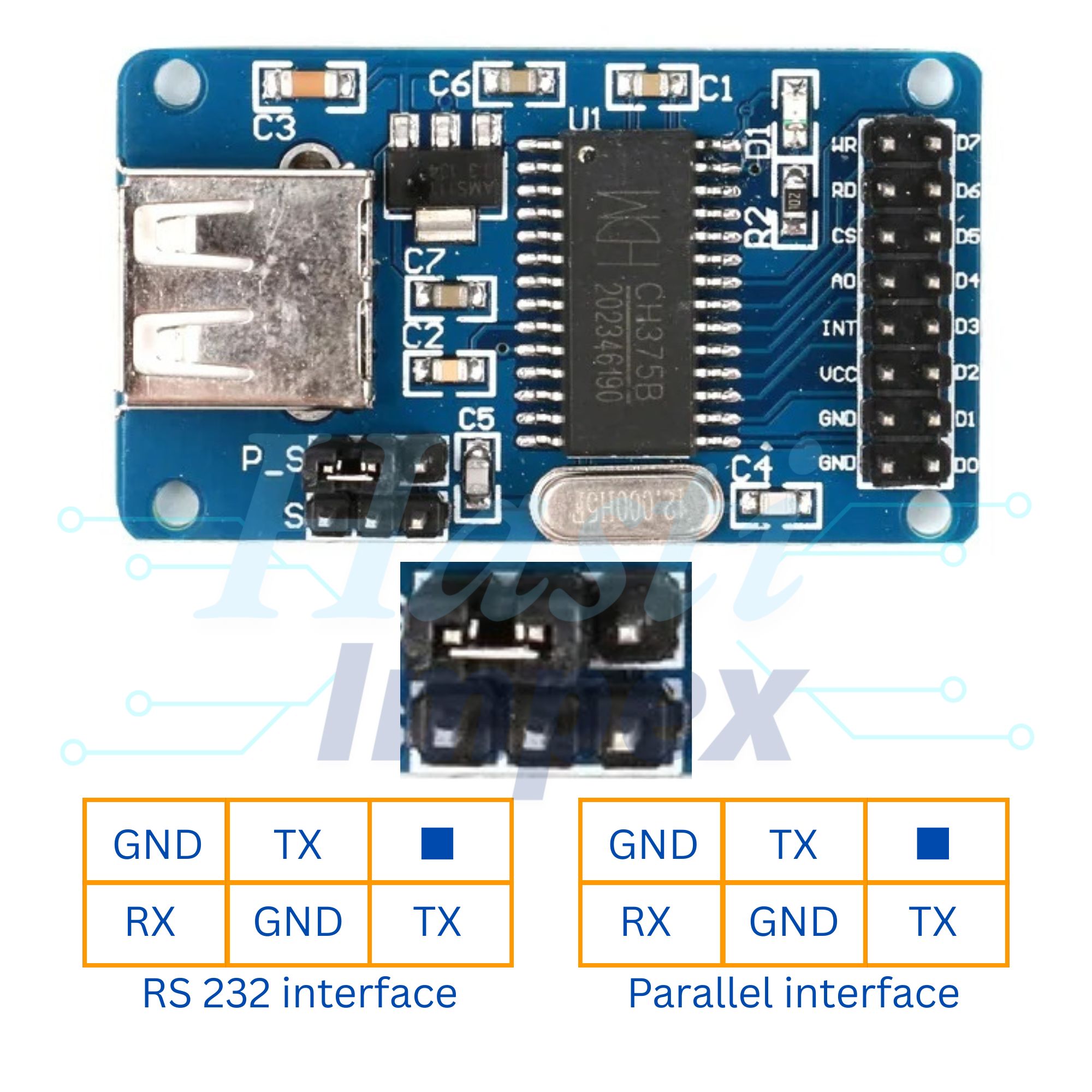

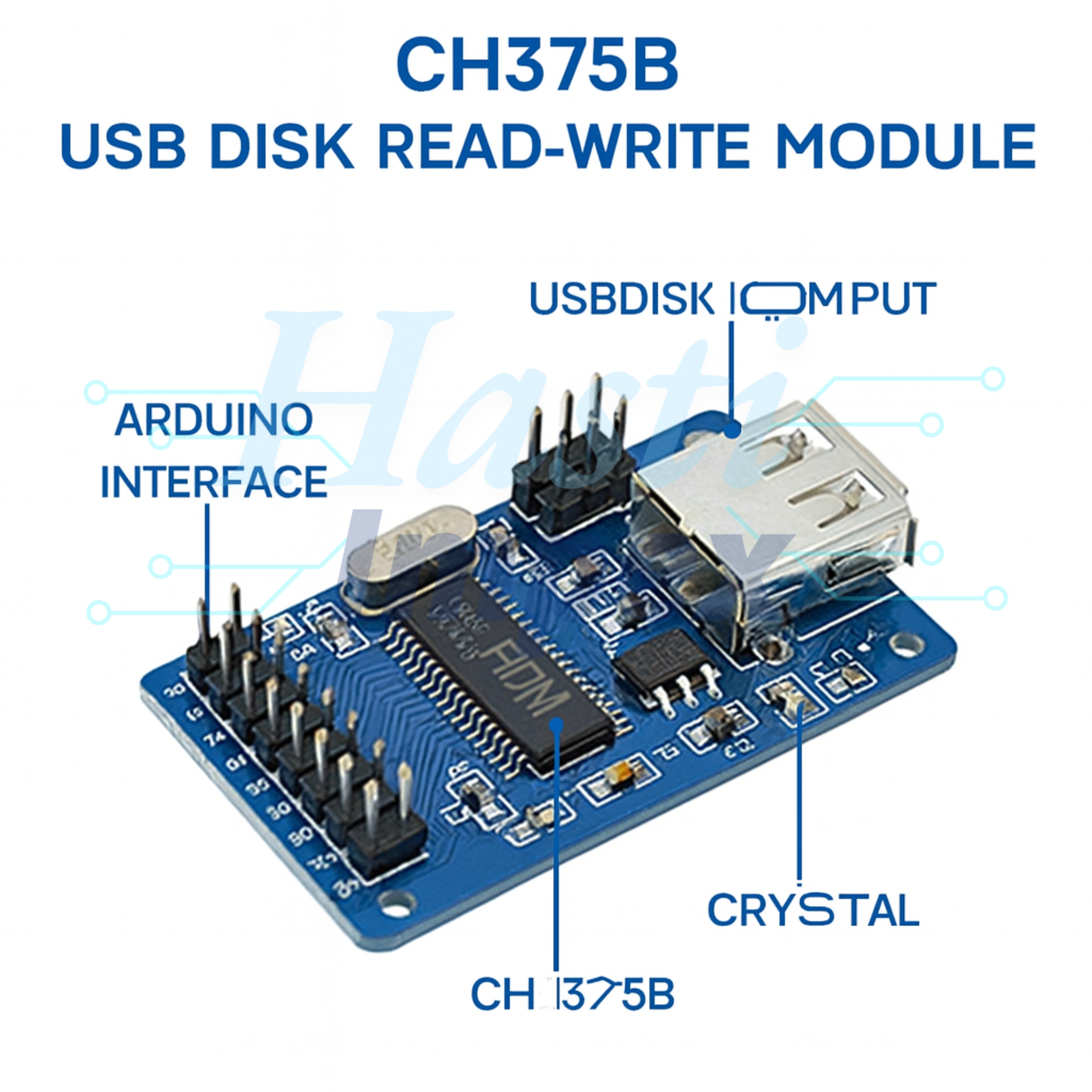

Diagram:
Specifications:
| USB Protocol | 12 Mbps |
| Operating Voltage (V) | 5 |
| IC Chip | CH375B |
| Crystal | 12 MHz |
| PCB Size ( L x W ) mm | 48 x 28 |
| Weight (g): | 6 |
| Operating Temperature | -20°C to +70°C |
| Power Supply | 5V |
